EcoFlow DELTA - Portable Power Station Manual

Specifications

DELTA 1300

General Info
Net Weight	Approximately 30.9lbs
Dimensions	15.7 x 8.3 x 10.6in
Capacity	1260Wh 50.4V
Output Ports
AC (x6)	Pure Sine Wave, 1800W total (surge 3300W), 120V~ 60Hz
USB-A (x2)	5V 2.4A 12W Max, per port
USB-A Fast Charge (x2)	5V 2.4A 9V 2A 12V 1.5A 18W Max, per port
USB-C (x2)	5/9/12/15/20V 3A 60W Max, per port
Car Charger	13.6V 8A, 108.8W Max
Input Ports
AC Charge	X-Stream Fast Charge 1200W Max
AC Input Voltage	100-120V~ 50Hz/60Hz
Solar Charger	10-65V 10A, 400W Max
Car Charger	Supports 12V/24V Battery, 8A
Battery Info
Cell Chemistry	NCM
Cycle Life	800 cycles to 80%+ capacity
Protection	Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection
Environmental Operating Temperature
Optimal Operating Temperature	68°F to 86°F(20°C to 30°C)
Discharge Temperature	-4°F to 113°F (-20°C to 45°C)
Charge Temperature	32°F to 113°F(0°C to 45°C)
Storage Temperature	-4°F to 113°F (-20°C to 45°C) (optimal: 68°F to 86°F [20°C to 30°C])

* Whether the product can be charged or discharged depends on the actual temperature of the battery pack.
DELTA 1000

General Info
Net Weight	Approximately 30.9lbs
Dimensions	15.7 x 8.3 x 10.6in
Capacity	1008Wh 50.4V
Output Ports
AC (x6)	Pure Sine Wave, 1600W total (surge 3100W), 120V~ 60Hz
USB-A (x2)	5V 2.4A 12W Max, per port
USB-A Fast Charge (x2)	5V 2.4A 9V 2A 12V 1.5A 18W Max, per port
USB-C (x2)	5/9/12/15/20V 3A 60W Max, per port
Car Charger	13.6V 8A, 108.8W Max
Input Ports
AC Charge	X-Stream Fast Charge 1000W Max
AC Input Voltage	100-120V~ 50Hz/60Hz
Solar Charger	10-65V 10A, 400W Max
Car Charger	Supports 12V/24V Battery, 8A
Battery Info
Cell Chemistry	NCM
Cycle Life	500 cycles to 80%+ capacity
Protection	Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection
Environmental Operating Temperature
Optimal Operating Temperature	68°F to 86°F(20°C to 30°C)
Discharge Temperature	-4°F to 113°F (-20°C to 45°C)
Charge Temperature	32°F to 113°F(0°C to 45°C)
Storage Temperature	-4°F to 113°F (-20°C to 45°C) (optimal: 68°F to 86°F (20°C to 30°C))

* Whether the product can be charged or discharged depends on the actual temperature of the battery pack.

Getting Started

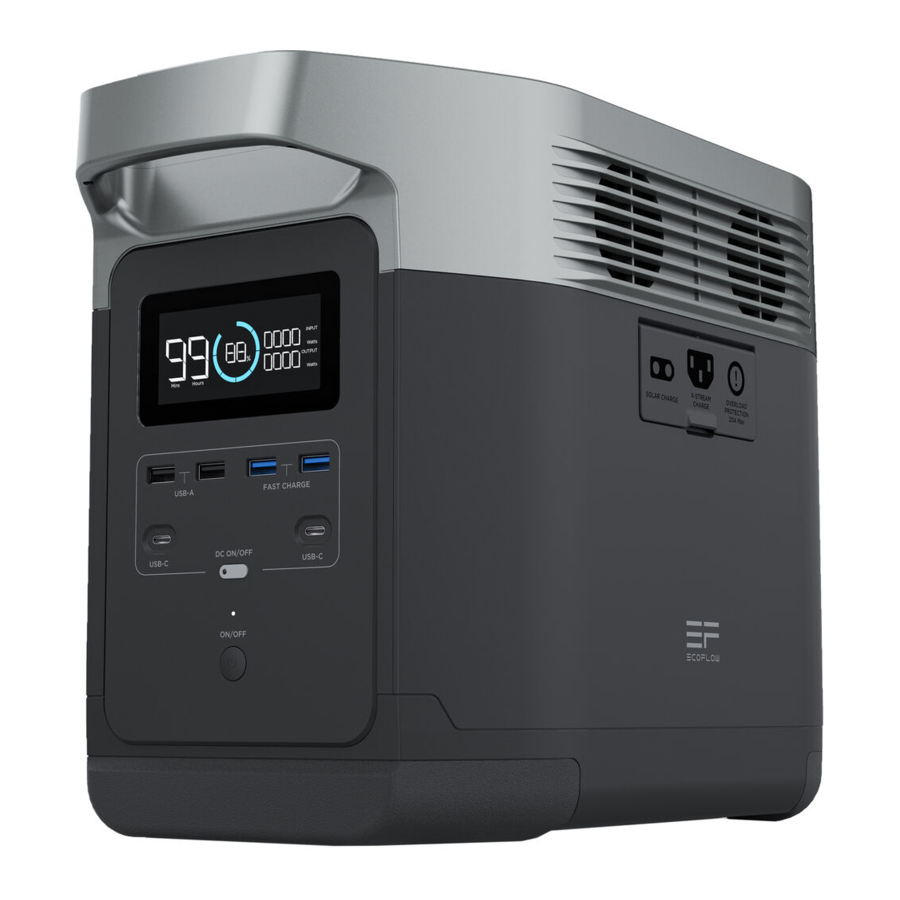

Product Details

LCD Screen

Battery Level Indicator: The indicator will repeatedly fill while charging. If product is at 0% charge, the indicator will flash to warn you.
* See Section "Troubleshooting" for more troubleshooting steps.

General Product Usage

Product On, Product Off, LCD Screen On

Short press the Main Power Button to turn on the product; the LCD Screen will light up and the battery level indicator icon will display.
The product enters sleep mode after 5 minutes of idle operation; the LCD Screen will automatically turn off. When the product senses any load change or operations, the LCD Screen will automatically light up. To turn the LCD Screen on or off, please short press the Main Power Button.
To power off the product, press and hold the Main Power Button.
The default product standby time is 30 mins. With other Power Buttons turned off and no other load access for 30 mins, the product will automatically shut down.

DC Output Port

With the Main Power Button turned on, short press the DC Power Button to use the DC Output Port. Short press the DC Power Button again to turn it off.
With the DC Power Button on, the product will not automatically shut down.

AC Output Port

With the Main Power Button turned on, short press the AC Power Button to use the AC Output ports. Short press the AC Power Button again to turn it off.
The default standby time of the AC Output port is 12 hours. Without any load access for 12 hours, the AC Power Button will automatically turn off.
Please turn off AC power button when not in use to save power consumption.

AC Charging

EcoFlow's X-Stream fast charge technology is specifically for AC charging, offering 1200W/1000W of max input power. In case of unusual situations where the AC input current remains higher than 20A, the X-Stream charging input port will initiate a self-protection function, and the Overload Protection Switch on the product will automatically pop up. After confirming that there is no product failure, you can press the Overload Protection Switch to resume charging.

Solar Charging

Users can connect solar panels in series as shown in the figure to recharge the product.

*Solar charging cable (MC4-XT60 adapter cable) is supplied separately.
When using an EcoFlow solar panel to charge the product, please follow the instructions that come with the solar panel. Before connecting the solar panel, please ensure that the solar panel's output voltage is with in 65V to avoid product damages.

Wiring solar panels in series adds up the voltage, but the amperage remains the same. Conversely, when solar panels are wired in parallel, the amperage of panels increases and the voltage remains the same. User can choose the solar charging mode according the solar input voltage range of charged power station.
If choosing parallel connection, users can connect up to 2 sets of solar panels in parallel as shown in the figure to recharge the product. You can divide your solar panels into sets, followed by connecting each set of solar panels in series and then putting all sets of solar panels in parallel. The parallel connection cable is an optional accessory and needs to be purchased separately.

Solar MC4 parallel connection cable
*Users have to buy the solar panels and other parallel connection accessories separately.

Car Charging

Users can recharge the product through the Car Charging Input Port. It supports 12V/24V car chargers and an 8A default charging current.
Please charge using the car charger after you've started the car to avoid failure to start due to insufficient car battery. In addition, please make sure that Car Charging Input Port and the Car Charging Cable are in good condition. EcoFlow takes no responsibilities for any losses or damages caused by failures to follow instructions.

Emergency Power Supply (EPS)

The product supports EPS. When you connect the grid power to the AC Input Port of the product through an AC Charging cable, you can power electrical devices through the AC Output Sockets (AC power will come from the grid and not the power station in this situation). In case of a sudden blackout, the product can automatically switch to the battery powered supply mode within 30ms. As a basic UPS function, this function does not support 0ms switching. Please do not connect the product to any device that requires 0ms UPS, such as data servers and workstations. Please test and confirm the compatibility before using the product. We recommend that you only charge one device at a time and avoid using multiple ones at the same time to avoid overload protection. EcoFlow takes no responsibilities for any device failures or data losses caused by failures to follow instructions.

FAQs

What battery does the product use?

It uses high-quality lithium-ion battery.

What devices can the product's AC output port power?

With 1800W/1600W rated power and 3300W/3100W peak power, the product's AC output port can power most household appliances. Before you use it, we recommend that you confirm the power of the appliances first and ensure the power sum of all loaded appliances is lower than the rated power.

How long can the product charge my devices?

The charging time is shown on the product's LCD Screen, which can be used to estimate the charging time of most appliances with stable power usage.

How can I know if the product is charging?

When it's charging, the remaining charging time will be shown on the LCD Screen. Meanwhile, the charging indicator icon begins to rotate with the remaining battery percentage and the input power shown on the right of the circle.

How to clean the product?

Please gently wipe it with a dry, soft, clean cloth or paper towel.

How to store the product?

Before storing, please turn off the product first, and then store it in a dry, ventilated place at room temperature. Do not place it near water sources. For long-term storage, please discharge the battery to 30% and recharge it to 60% every three months to extend its battery life.

Can I bring the product on a plane?

No.

Troubleshooting

Indicator	Problem	Solution
Icons Flash together	USB-A Overload Protection	Resume normal operation by removing the electrical device connected to the USB-A port.
Icons Flash together	USB-C Overload Protection	Resume normal operation by removing the electrical device connected to the USB-C port.
Icons Flash together	Product Overload	After the product cools down, it will resume normal operation automatically.
Icons Flash together	High Temperature Charge Protection	Charging can be resumed automatically after the battery cools down.
Icons Flash together	High Temperature Discharge Protection	The power supply can be resumed automatically after the battery cools down.
Icons Flash together	Low Temperature Charge Protection	Charging can be resumed automatically after battery temperature rises above 41°F(5°C).
Icons Flash together	Low Temperature Discharge Protection	The power supply can be resumed automatically after the battery temperature rises above 10°F(-12°C).
Icons Flash together	AC Output Overload Protection	Normal operation will be resumed automatically after you remove the overloaded device and restart the product. Electrical appliances should be used within rated power.
Icons Flash together	AC High Temperature Protection	Please confirm whether the fan inlet and outlet are blocked, if not, normal operation will be resumed automatically after the product temperature drops.
Icons Flash together	AC Low Temperature Protection	Normal operation will be resumed automatically after the product is used at optimum environmental temperatures.
Icon Flashes	Fan Blockage	Please check if the fan is blocked by foreign materials.
Icons Flash together	Car Charger Overload Protection	The product will resume normal operation automatically after you remove the device connected to the car charger.
Icons Flash together	Car Charger High Temperature Protection	After the product cools down, it will resume normal operation automatically.
Icon Stays On	Battery Failure	Contact EcoFlow Customer Service

If the Alarm Prompt shows on the product LCD screen during use and does not disappear after a restart, please stop using it immediately (do not try to charge or discharge).
If you require any other assitance, please contact EcoFlow Customer Service.

What's In the Box

Storage & Maintenance

1. Please use or store the product in an environment temperature between 68°F to 86°F(20°C to 30°C), away from water, heat, and other metal objects.
2. For long-term storage, please discharge the battery to 30% and recharge it to 60% every three months.
3. For safety, please do not store the product in an environment temperature higher than 113°F(45°C) or lower than 14°F(-10°C) for a long time.
4. If the remaining battery is less than 1% after you finish using the product, please recharge it to 60% before storing. If the product is left idle for a long time with severely low battery, irreversible damages may be caused to the battery cell and the product service life will be shortened.
5. If the product has been idle for too long and the battery is severely low, it will enter a deep sleep protection mode. In such case, please charge the product before using it again.
