Ronix RA-1801 Manual

Air die grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AIR DIE GRINDER
RA-1801

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA-1801 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix RA-1801

Summary of Contents for Ronix RA-1801

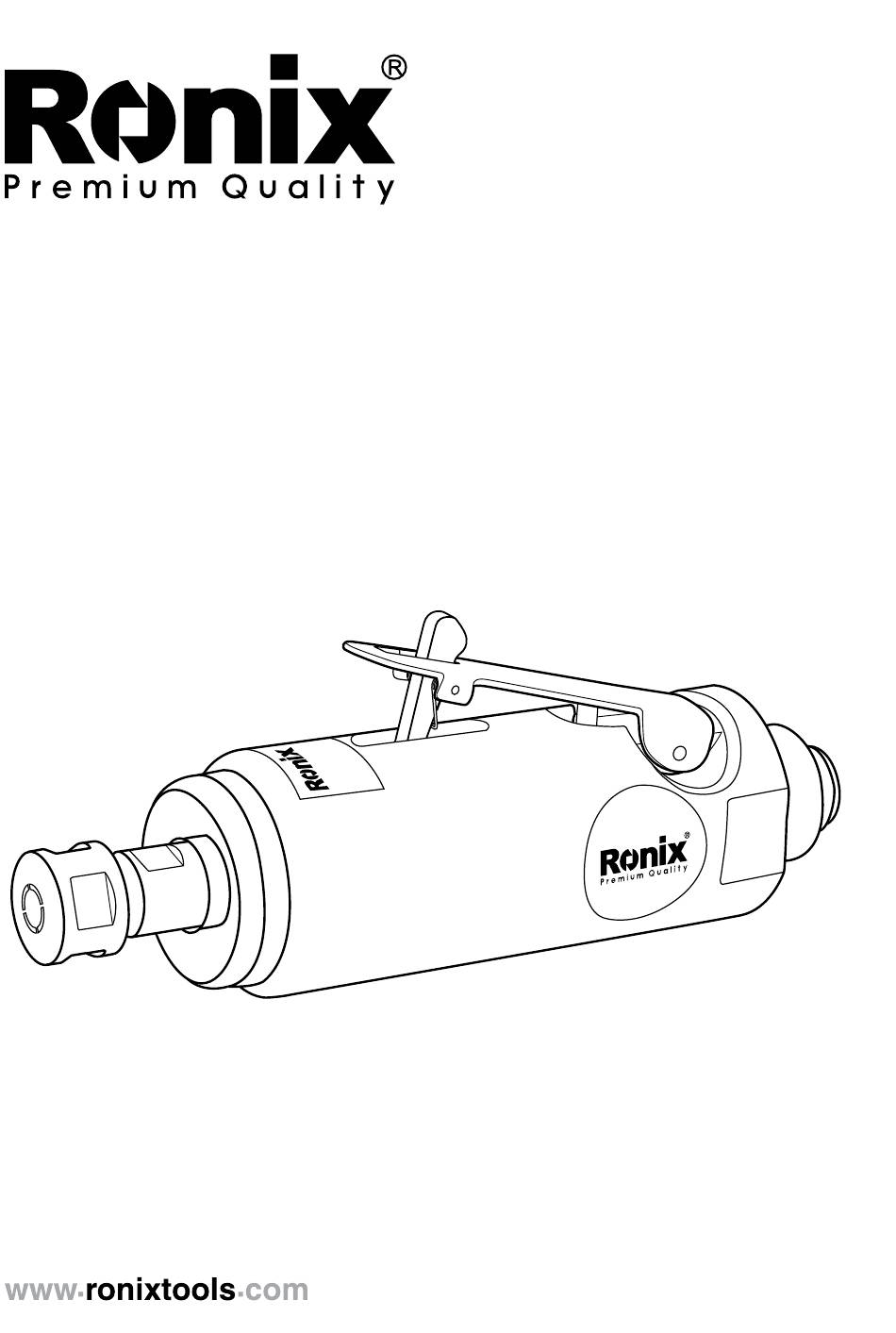

  • Page 1 AIR DIE GRINDER RA-1801...

  • Page 3: Specifications

    SPECIFICATIONS RA-1801 Model Power Source No-Load Speed 22000 RPM Collet Size Material Aluminum Air Inlet 1/4 inch Air Pressure 90 Psi Weight 0.604Kg 2pcs wrenches 1pc 1/8" (3mm) collet Includes 1pc coupler 1pc oil-pot PARTS LIST Trigger Pin Trigger Air inlet...

  • Page 4: Residual Risks

    WARNING: - Upon receipt of the product, read and follow all safety rules, operating instructions before first use it. And retain this manual for future reference. RESIDUAL RISKS Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors.

  • Page 5: Projectile Hazards

    replacement marking labels when necessary. PROJECTILE HAZARDS - Be aware that failure of the workpiece or accessories, or even of the inserted tool itself can generate high velocity projectiles. - Always wear impact-resistant eye protection during operation of the die grinder or when changing accessories on the tool. The grade of protection required should be assessed for each use.

  • Page 6: Repetitive Motions Hazards

    - Maintain a balanced body position and secure footing. - Release the start and stop device in the case of an interruption of the energy supply. - Use only lubricants recommended by the manufacturer. - Personal protective safety glasses shall be used; suitable gloves and protective clothing are recommended.

  • Page 7: Workplace Hazards

    manufacturer; do not use other types or sizes of accessories or consumables. - Avoid direct contact with the inserted tool during and after use as it can be hot or sharp. - The maximum operating speed of the inserted tool shall equal or exceed the rated speed marked on the tool.

  • Page 8: Noise Hazards

    - All integral features or accessories for the collection, extraction or suppression of airborne dust or fumes should be correctly used and maintained in accordance with the manufacturer’s instructions. - Select, maintain and replace the consumable/inserted tool as recommended in the instructions, to prevent an unnecessary increase in dust or fumes.

  • Page 9: Important Safety Rules

    - If you experience numbness, tingling, pain or whitening of the skin in your fingers or hands, stop using the die grinder, tell your employer and consult a physician. - Operate and maintain the die grinder as recommended in the instruction handbook, to prevent an unnecessary increase in vibration levels.
  • Page 10 2- Always ensure machine is switched off before connecting to air supply. 3- Disconnect any machine from the air supply before changing accessories and before servicing any type of machine. 4- Always keep your air tool clean and lubricated. Daily lubrication is essential to avoid internal corrosion and possible failure.

  • Page 11: Air Supply

    AIR SUPPLY 1- Ensure air valve (or trigger) in the “off “position before connecting to the air supply. 2- You will require an air pressure of 90 Psi, and an air flow according to specification. WARNING! 3- Ensure the air supply is clean and does not exceed 90psi while operating the tool.

  • Page 12: Loading And Operation

    - It is most important that the tool be properly lubricated by keeping the airline lubricator filled and correctly adjusted. Without proper lubrication the tool will not work properly and parts will wear prematurely. - Use the proper lubricant in the air line lubricator. The lubricator should be of low air flow or changing air flow type, and should be kept filled to the correct level.

  • Page 13: Troubleshooting

    3- The flow of air may be regulated by adjusting flow valve at the base of the handle. 4- Ensure the air supply is clean and does not exceed 90 Psi while operating the tool. Too high an air pressure and unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage or personal injury.
  • Page 14 and solutions. Please read the form carefully and follow it. WARNING: If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool.
  • Page 15 - Pour air tool lubricating tool into air inlet. - Operate tool in short bursts of Tools will not run. One or more motor forward and/or reverse rotation where Air flows freely from vanes stuck due to applicable. exhaust material build up. - Tap motor housing gently with plastic mallet.
