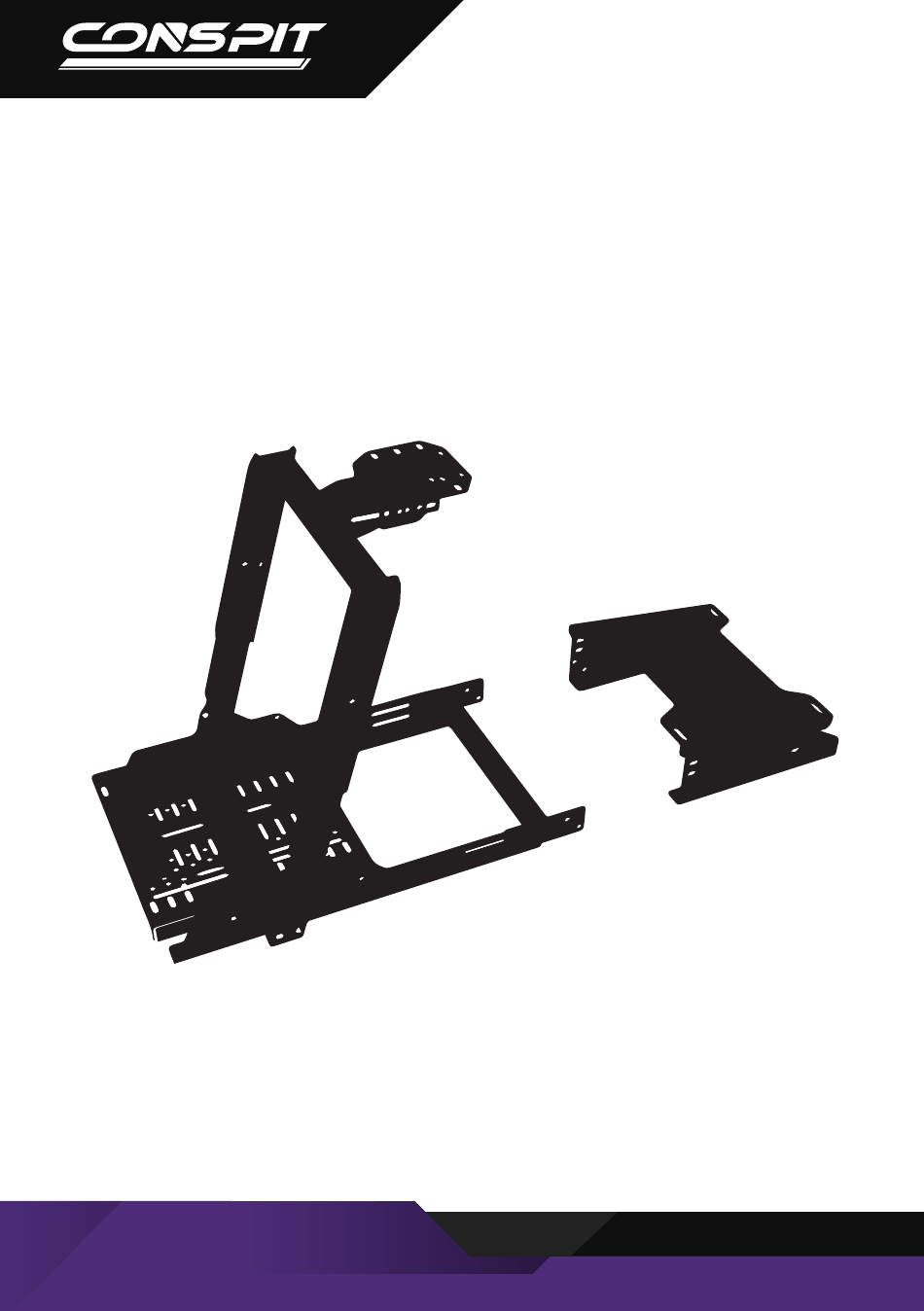

- Page 1 CONSPIT GT-S Quick Guide Elite Sim-racing Development...
- Page 2 Table of Contents Product Disclaimer....................1 Packing List ......................4 01. Installation of Rig ..................... 6 02. Installation of Seat Kits (Optional) ..............11 03. Installation of Ofice Chairs (Not Included) ............13 04. Sitting Posture Adjustment ................15 a. Steering wheel height adjustment ..............15 b.
- Page 3 If you have any questions about this Disclaimer or the following product safety tips and operating specifications, you can consult through support@conspit.com. In the process of reading this Disclaimer and the following product safety tips and operating specifications, you should immediately stop using this product if you do not agree with any of the contents.
- Page 4 - If the product is damaged or cannot be used properly, please stop using it immediately and consult CONSPIT's after-sales customer service. Continuing to use it may cause further damage to the product. - Do not attempt to repair the product or its accessories by yourself.
- Page 5 CONSPIT GT-S: revolutionizing diverse racing arenas with modular design and lightweight construction. Please verify all the components listed in the packing list before starting the installation. The installation process is expected to take 40-60 minutes. - 3 -...
- Page 6 Packing List M6*12mm M6*16mm M8*16mm M8 flange nuts round head hex bolts round head hex bolts hex bolts (30 pieces) (4 pieces) (4 pieces) (36 pieces) hex wrench 6.0 13mm M8 metal gaskets hex wrench 5.0 gloves open-end wrench (16 pieces) hex wrench 4.0 (2 pieces) carpet...
- Page 7 Packing List A×2 B×1 C×1 D×2 E×2 F×2 G×1 H×1 Optional J×1 （ Seat） K×1 *Safety Warning: Contains metal parts with sharp edges, stay safe when installing. - 5 -...
- Page 8 Installation of Rig Parts required for this step： M6*12mm round head hex bolts M8*16mm hex bolts (4 pieces) (36 pieces) M8 metal gaskets (16 pieces) M8 flange nuts (28 pieces) A×2 B×2 C×2 E×2 F×2 G×2 H×1 I×1 - 6 -...
- Page 9 M8 metal gaskets (8 pieces) M8 flange nuts (8 pieces) M8*16mm hex bolts (8 pieces) M8 flange nuts (4 pieces) M8*16mm hex bolts (8 pieces) - 7 -...
- Page 10 * We recommend pedals with large pedal pad tilt angle such as T300, CSL and G29 when using office chairs as in page 13. If you’ re using pedals with small pedal pad tilt angle, you can install the pedal mounting plate more forward pitching for better driving experience.
- Page 11 M8*16mm hex bolts (4 pieces) M6*12mm round head hex bolts (4 pieces) - 9 -...
- Page 12 M8 flange nuts (4 pieces) Please install bolts of the corresponding specifications according to the instructions provided by your base manufacturer. (GT-S provides M6*12mm round head hex bolts) Supported and recommended devices: Fanatec: DD PRO, CSL DD, Gran Turismo DD Pro...
- Page 13 Installation of Seat Kits (Optional) Parts required for this step： M8*16mm round head M8*16mm hex bolts hex bolts (4 pieces) (8 pieces) M8 metal gaskets M8 flange nuts K×1 J×1 (Seat) (4 pieces) (12 pieces) * (1) Adjust the seat to the rear end of the slide rail.
- Page 14 M8*16mm hex bolts (4 pieces) M8 metal gaskets (4 pieces) M8 flange nuts (4 pieces) M8 flange nuts (4 pieces) M8*16mm hex bolts (4 pieces) - 1 2 -...
- Page 15 Installation of Office Chair (Not Included) * Please Note: Parts required for this step： When installing and using the office chair, please be cautious due to possible non-fixed connections, and it is not recommended to use with pedals with force exceeding 50bar when using the office chair.
- Page 16 （1） （2） - 1 4 -...
- Page 17 Sitting Posture Adjustment a. Steewing wheel height adjustment b. Steering wheel position adjustment - 1 5 -...
- Page 18 c. Seat position adjustment d. Seat position adjustment (seat kits) - 1 6 -...
- Page 19 e. Pedal position adjustment - 1 7 -...
