Summary of Contents for Conspit FP Rig

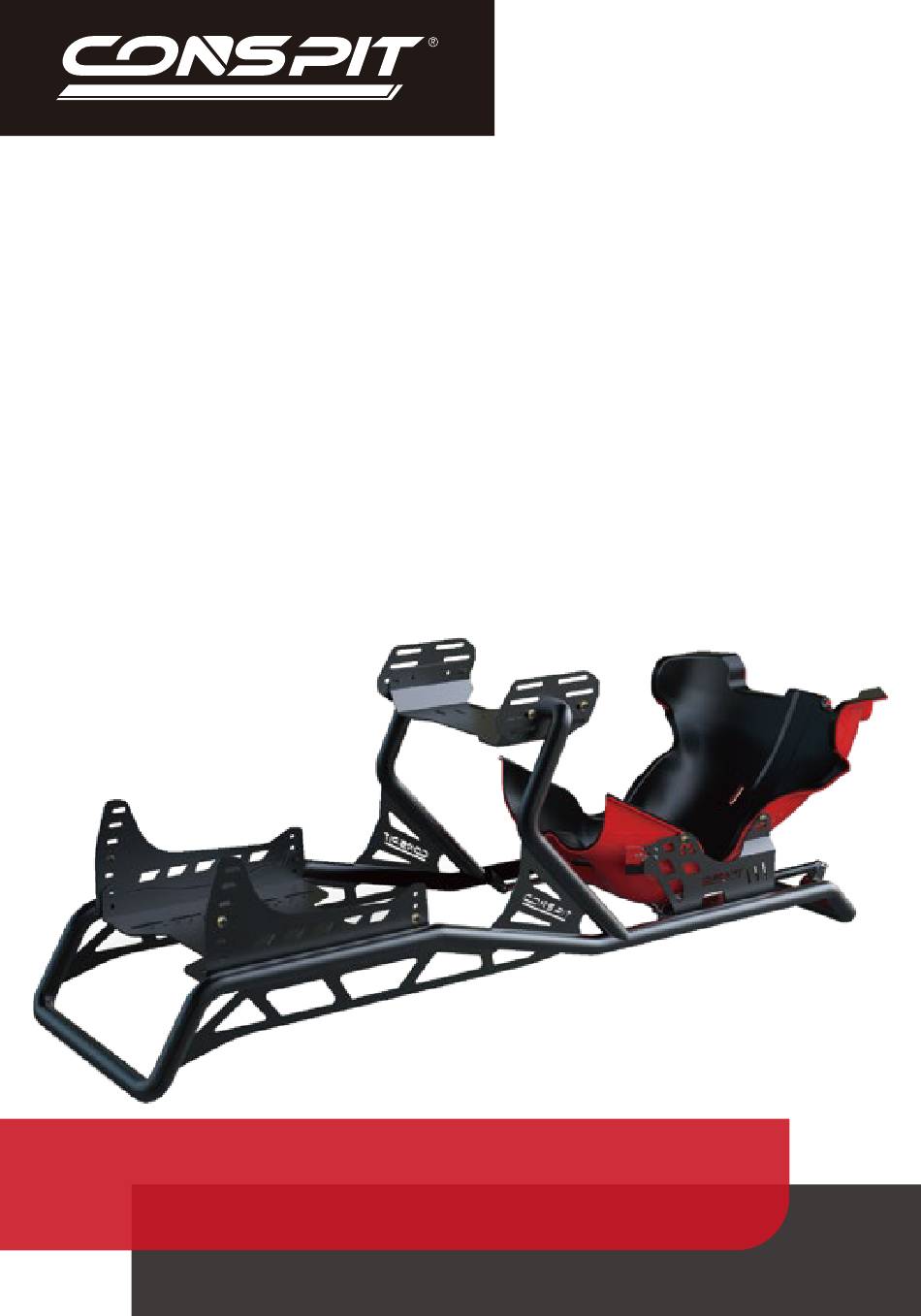

- Page 1 CONSPIT FP Rig Quick Guide Ensu (Shanghai) Electronic Technology Co., Ltd...
- Page 2 M8 bolts, and the angle is adjustable. 1. Using a pedal with the pedal surface and the pedal base close to vertical (such as products of CONSPIT, HE, etc.), it is recommended to install the mounting plate in parallel. (Figure 2)
- Page 3 (Figure 3) figure 3 Pedals of CONSPIT, FANATEC, Thrustmaster, HE can be mounted directly. For other products, please refer to the mounting templates of the plate. (Figure 4) 233.71...
- Page 4 (Figure 5) Figure 5 * It is recommended to purchase CONSPIT CGP or CPP series twin pedal to be used with the FP RIG to get the best experience.
- Page 5 Wheelbase Mounting 1. Using wheelbase whose steering wheel is nearly perpendicular to the bottom surface of the base (such as FANATEC, Simagic, Simucube), it is recommended to install the base plate in parallel. (Figure 6) Figure 6 2. Using wheelbase with a larger angle between the steering wheel and the bottom surface of the base (such as Thrustmaster, Logitech wheelbase products).
- Page 6 Wheelbases of FANATEC, THRUSTMASTER, SIMUCUBE, LOGITECH can be mounted directly. For other products, please refer to the mounting templates of the plate. (Figure 8) 208.42 78.4 78.4 Figure *When installing the mounting plate, tighten the bolts until there is no gap between the side plate on the rig and the side of the mounting plate.
-
Page 7: Seat Position Adjustment
The pneumatic slide system is a patented CONSPIT structure, which has a high-strength locking force while you can easily adjust the seat position front and rear. Figure Seat position adjustment The red handle shown in is used to adjust the position of the seat. - Page 8 The pneumatic system is now locked figure 12 Pull the handle, and the pneumatic system is activated figure 13...
-
Page 9: Safety Warning
Safety Warning * Do not pull the handle when there is no load on the seat, please be sure to sit on the seat to adjust the seat position. * This mechanism is not suitable for children under 14 to use. Adjusting Procedure 1. - Page 10 CONSPIT.COM #GET YOURSELF IMMERSED...
