CONSPIT GT-B
Quick Guide
Elite Sim-racing Development

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Conspit GT-B

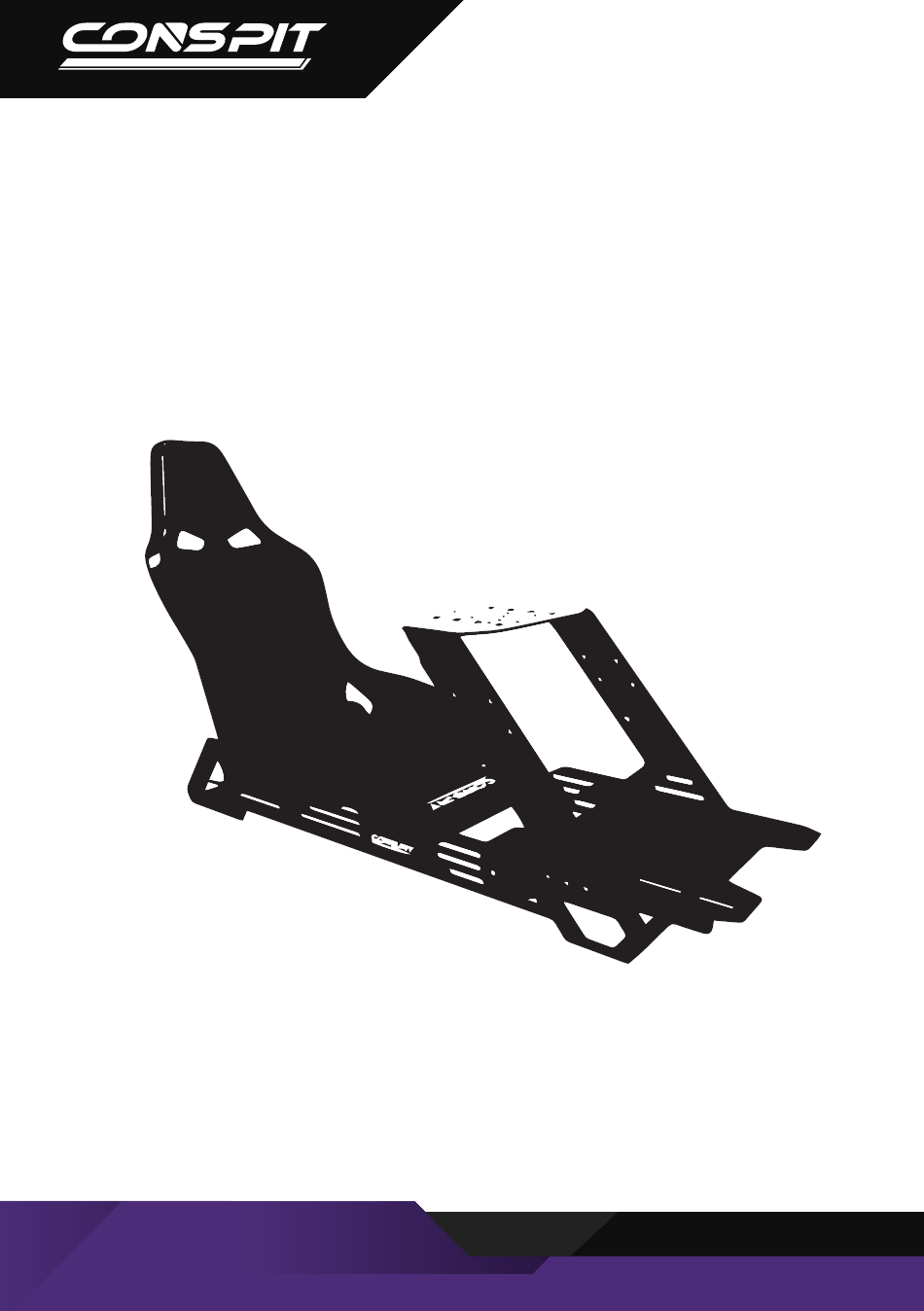

  • Page 1 CONSPIT GT-B Quick Guide Elite Sim-racing Development...
  • Page 2: Table Of Contents

    Table of Contents Product Disclaimer ....................1 Packing List ........................ 4 01. Installation of Seat Base ..................6 02. Installation of Pedal Mounting Plate..............8 03. Installation of Wheelbase Mounting Plate ............10 04. Installation of Seat ....................13 05. Sitting Posture Adjustment ................. 15 a.
  • Page 3: Product Disclaimer

    If you have any questions about this Disclaimer or the following product safety tips and operating specifications, you can consult through support@conspit.com. In the process of reading this Disclaimer and the following product safety tips and operating specifications, you should immediately stop using this product if you do not agree with any of the contents.
  • Page 4 - If the product is damaged or cannot be used properly, please stop using it immediately and consult CONSPIT's after-sales customer service. Continuing to use it may cause further damage to the product. - Do not attempt to repair the product or its accessories by yourself.
  • Page 5 CONSPIT GT-B is specifically designed for kids aged 6 to 12 years old. With a well-developed ergonomic system, it offers powerful adjustability to meet the specific body types of children. GT-B is designed with an Easy-Assembly Structure. Please verify all the components listed in the packing list before starting the installation.
  • Page 6: Packing List

    Packing List M8*16mm M6*12mm Adjustable handle Flange nuts Hex bolts Round head hex bolts (4 pieces) (16 pieces) (12 pieces) (8 pieces) 13mm M8*20mm M8*16mm Hex wrench 6.0 Open-end wrench Round head hex bolts Round head hex bolts Hex wrench 5.0 (1 pieces) (4 pieces) (8 pieces)
  • Page 7 Packing List A×2 B×1 C×1 D×2 E×1 F×1 G×1 H×1 *Safety Warning: Contains metal parts with sharp edges, stay safe when installing. - 5 -...
  • Page 8: Installation Of Seat Base

    Installation of Seat Base Installation completion diagram Parts required for this step: M8*16mm Hex bolts M6*12mm Round head hex bolts (8 pieces) (4 pieces) A×2 C×1 E×1 H×1 - 6 -...
  • Page 9 M8*16mm Hex bolts (8 pieces) * Do not tighten the bolts in this step for the convenience of subsequent installation steps. M6*12mm Round head hex bolts (4 pieces) - 7 -...
  • Page 10: Installation Of Pedal Mounting Plate

    Installation of Pedal Mounting Plate Parts required for this step: M8*20mm Round head hex bolts M8 Flange nuts (4 pieces) (4 pieces) F×1 Due to the fact that the angle of the pedal surface of different brands of pedals may differ, we suggest that you install your pedals on the pedal base before tightening the bolts shown in the figure below to facilitate the adjustment of the driving position.
  • Page 11 We recommend bolt-gaskets-nut combination, for improved driving experience M8 Flange nuts M8*20mm Round head hex bolts (4 pieces) (4 pieces) * Mounting direction - 9 -...
  • Page 12: Installation Of Wheelbase Mounting Plate

    Installation of Wheelbase Mounting Plate *The wheelbase model is for M6*12mm Round head hex bolts display purposes only. (4 pieces) Parts required for this step: M6*12mm Round head hex bolts (4 pieces) M8*16mm Round head hex bolts (8 pieces) M8 Flange nuts (12 pieces) M8*16mm Hex bolts (4 pieces) D×2 - 1 0 -...
  • Page 13 Please install bolts of the corresponding specifications according to the instructions provided by your base manufacturer. (GT-B provides M6*12mm round head hex bolts) Compatible and recommended wheelbases: Fanatec: DD PRO, CSL DD, Gran Turlsmo DD Pro Thrustmaster: T300, TS-PC Racer, T-GT, T248...
  • Page 14 We recommend using this hole position as initial * During installation, please set-up, but if you prefer a different wheelbase ensure that the heights of height, you can adjust the fixing hole position the pillars on both sides on the pillar to your desired setting. are the same.
  • Page 15: Installation Of Seat

    Installation of Seat B×1 Parts required for this step: Adjustable handle (4 pieces) Installation completion diagram - 1 3 -...
  • Page 16 Mount the seat supporting plates to the rig. Adjustable handle (4 pieces) We recommend bolt-gaskets combination, for improved driving experience *Tighten all the fasteners in the previous steps. - 1 4 -...
  • Page 17: Sitting Posture Adjustment

    Sitting Posture Adjustment a. Seat position adjustment Front/rear adjustment b. Steering wheel position adjustment Angle adjustment - 1 5 -...
  • Page 18 Change mounting holes for wheelbase front/rear adjustment Height adjustment - 1 6 -...
  • Page 19: Pedal Position Adjustment

    Pedal position adjustment Angle adjustment * The flatter angle of the pedal (-12°— 5°) base is suitable for pedals with a more vertical pedal surface (such as CONSPIT CGP&CPP). Front/rear adjustment - 1 7 -...
  • Page 20 WWW.CONSPIT.COM...
