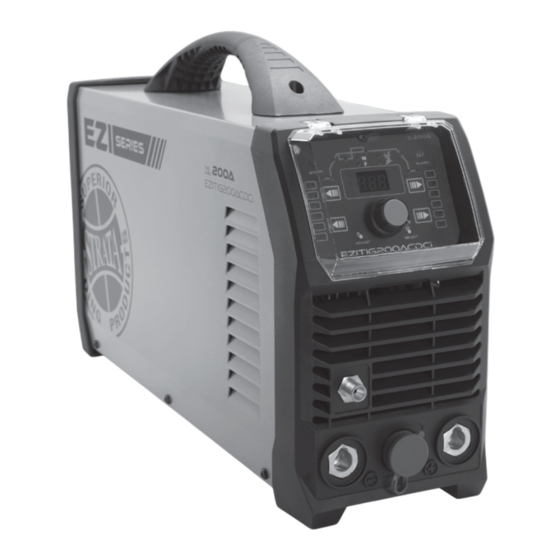

EZITIG200ACDCI
TIG/ARC INVERTER WELDER
OPERATING INSTRUCTIONS
48
48
IMPORTANT!
Read these Operating Instructions Completely before attempting to use this machine. Save this manual and
keep it handy for quick reference. Pay particular attention to the safety instructions we have provided for
your protection. Contact your distributor if you do not fully understand anything in this manual.
www.strata.co.nz
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Strata EZITIG200ACDCI
Summary of Contents for Strata EZITIG200ACDCI
- Page 1 EZITIG200ACDCI TIG/ARC INVERTER WELDER OPERATING INSTRUCTIONS IMPORTANT! Read these Operating Instructions Completely before attempting to use this machine. Save this manual and keep it handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection. Contact your distributor if you do not fully understand anything in this manual.
- Page 2 Contents Know Your Machine..........5 Quick Start Guide...........9 Basic Operation.............10 Safety ................11 Warranty..............17...
- Page 3 200A EZITIG200ACDCi 200A Max Ouput (TIG/ARC) Max Electrode Size 230V 200A AC/DC Pulse TIG/ARC Inverter Welder AC Sine & Square Wave options with adjustable frequency up to 250hz - Versatility for excellent welding performance in any aluminium welding application Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference Lightweight &...
- Page 4 Leads & Plugs 1.6mm x 1m Stainless Steel TIG Rods WT-TR16SS-316 Welding Lead Cable Plug TR24SS-316 2.4mm x 1m Stainless Steel TIG Rods CP3550 3.2mm x 1m Stainless Steel TIG Rods 17847 17847 - 12 Pin Strata TIG Remote Connection Plug TR32SS-316...
- Page 5 EZITIG200ACDCI Know Your Machine 1. Positive (+) welding power output connection socket 2. 12 Pin Torch/ Foot Pedal Remote Control Connection* 3. Negative (-) welding power output connection socket 4. TIG torch gas outlet connector www.strata.co.nz...
- Page 6 EZITIG200ACDCI 13 14 15 16 17 18 5. Adjustment/ Selector Knob – Turn to adjust value, 12. Up Slope Time* depress to confirm setting and move to next setting 13. Base Current* 6. Digital Display 14. Pulse Frequency* a. ‘S’ = Seconds. Lights when parameter being 15.
- Page 7 fitted to the torch. 9 Pre Flow- Controls the period shielding gas will The EziTig200ACDCi can also be used with the Strata flow for when the torch is triggered before the arc wired or wireless foot pedal remote control system.
- Page 8 TIG welding reactive metals such as Aluminium, illuminated permanently, this may indicate internal Magnesium and Zinc requires AC (alternating current) machine damage, in which case please contact Strata output. When reactive metals are exposed to air they customer service. form an oxide layer that insulates the base metal and prevents welding current flowing, it also contaminates...
- Page 9 Quick Start Guide Welder Installation Electrical Power Supply The EziTIG200ACDCi is designed to operate on a 15A 230V AC power supply If using an extension cord, it should be a heavy duty version with a minimum cable core size of 2.5mm2.
- Page 10 EZITIG200ACDCI Basic Operation 1.MMA/ Stick Welding Operation 2.3 Connect the machine to suitable mains power 1.1 Connect the earth cable quick connector to the using the mains input power lead. Switch the negative welding power output socket (3) mains power switch on the rear of the machine Connect the earth clamp to the work piece.
- Page 11 EZITIG200ACDCI Safety Store and Retain this Manual General Safety Warnings 1. Maintain labels and nameplates on the welder. Retain this manual for the safety warnings and pre- cautions, assembly, operating, inspection, mainte- These carry important information. If unreadable or nance and cleaning procedures. Write the product’s missing, contact Euroquip for a replacement.
- Page 12 EZITIG200ACDCI Safe practices are outlined in the European Standard 9. Ensure that the unit is placed on a stable location before use. EN60974-1 entitled: Safety in welding and allied pro- cesses. WARNING! WARNING! If this unit falls while plugged in, severe injury, Only use safety equipment that has been ap - electric shock, or fire may result.
- Page 13 EZITIG200ACDCI Arc Rays can Burn Eyes and Skin 4. If working on a metal wall, ceiling, etc., prevent ignition of combustibles on the other side by DANGER! moving the combustibles to a safe location. If Arc rays from the welding process produce...
- Page 14 EZITIG200ACDCI 4. Disconnect input power before installing or ser - ground or the work surface. Do not touch hold - vicing this equipment. Lock input power, discon- ers connected to two welding machines at the nect switch open, or remove line fuses so power same time or touch other people with the holder cannot be turned on accidentally.
- Page 15 EZITIG200ACDCI 12. Use only well-maintained equipment. Repair or Fire & Explosive Risks replace damaged parts as soon as practical. WARNING! 13. In confined spaces or damp locations, do not use Sparks and spatter fly off from the welding arc. a welder with AC output unless equipped with a The flying sparks and hot metal, weld spatter,...
- Page 16 EZITIG200ACDCI Cylinders WARNING! Gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully. 1. Protect compressed gas cylinders from exces- sive heat, mechanical shocks, and arcs.
- Page 17 Euroquip offers a comprehensive product warranty program. rect pre delivery service and adjustment. Warranty period for the EZITIG200ACDCi: Warranty does not cover any incidental, indirect or conse - quential loss, damage or expense that may result from any Commercial Use: 48 Months defect, failure or malfunction of a product.
- Page 18 This product is backed by our extensive warranty and world-wide service network. To locate your nearest distributor or service agency visit www.strata.co.nz, or email us at customerservice@euroquip.co.nz www.strata.co.nz...
