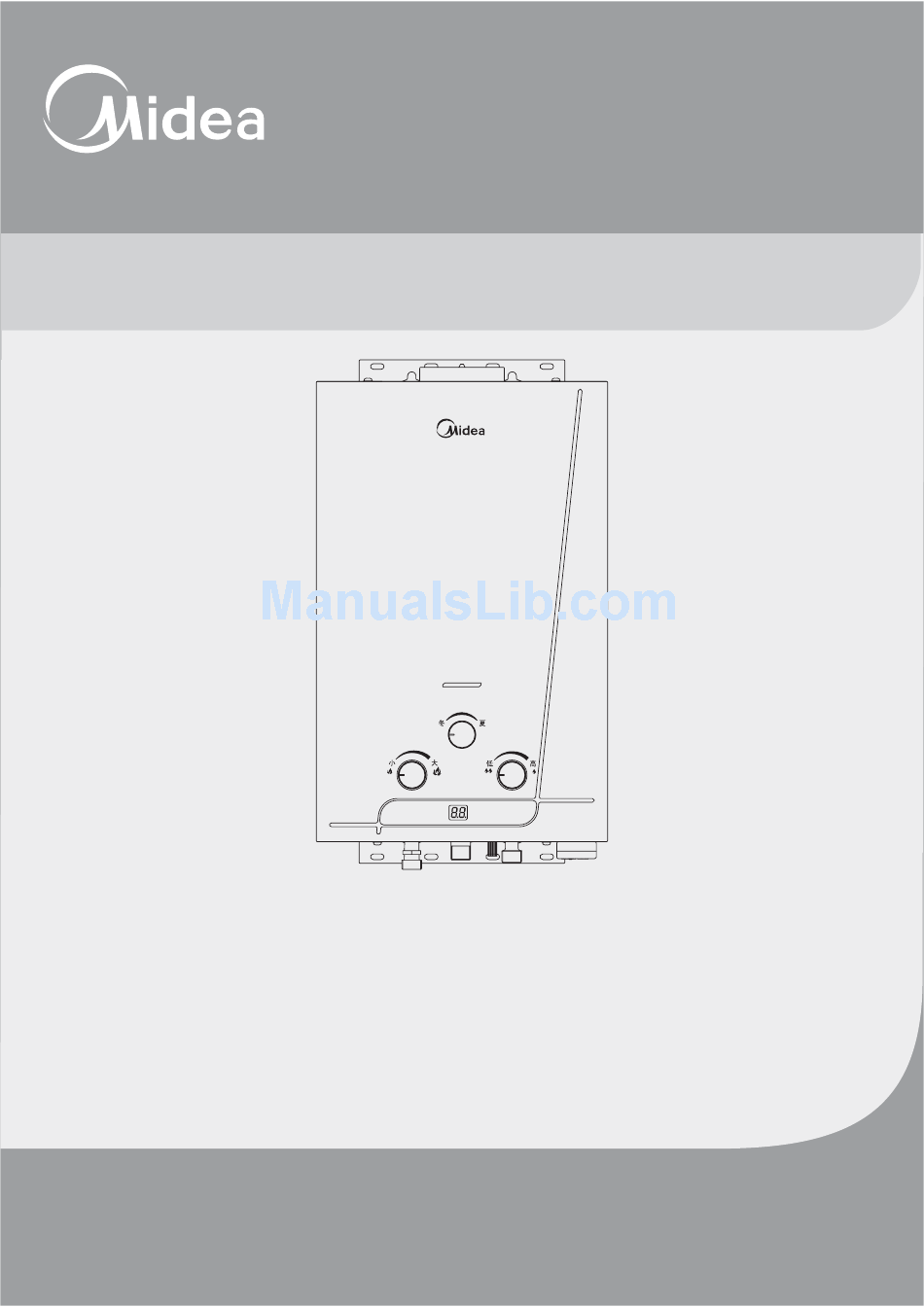

Instruction Manual for Midea Domestic
Instantaneous Gas Water Heater
The diagram above is just for reference. Please take the
appearance of the actual product as the standard.
Flue Gas Water Heater
Please read the instruction manual carefully before installing
and operating this water heater.
Production License No.: XK21-005-00166
GD Midea Kitchen and Bath Appliances MFG Co., Ltd
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midea JSQ Series
Summary of Contents for Midea JSQ Series
- Page 1 The diagram above is just for reference. Please take the appearance of the actual product as the standard. Flue Gas Water Heater Please read the instruction manual carefully before installing and operating this water heater. Production License No.: XK21-005-00166 GD Midea Kitchen and Bath Appliances MFG Co., Ltd...
-
Page 2: Table Of Contents
Special Advice: When the water heater is working, gas combustion would consume a large amount of oxygen and exhaust much carbon monoxide. In view of the great harm to the human health or even death caused by excessive carbon monoxide inhalation, the company sincerely advises all users that: Do not install the water heater in the bathroom;... -
Page 3: External Structure
External Structure: ① Viewport ⑥ Cold Water Inlet ② Season Change Knob ⑦ Hot Water Outlet ③ Water Temperature Regulation Knob ⑧ Gas Inlet ④ Drain Valve *⑨ Temperature Display ⑤ Battery Case ⑩ Firepower Regulation Knob * is peculiar to certain models. Note: All the diagrams displayed in this manual are based on the appearance of the standard gas water heater, just for illustration. -
Page 4: Installation Of The Water Heater
Installation of the Water Heater Prior to the installation of the water heater, please contact After the flue gas water heater is installed with a smoke exhaust pipe, during the use, do not turn on any the local gas company or the gas management department mechanical ventilation equipment such as the smoke to select qualified gas pipe, pressure regulating valve, steel exhaust ventilator and the exhaust fan in the room where... - Page 5 Installation Modes Expansion Screw Expansion Screw Note: It is absolutely forbidden to use this water heater with no smoke exhaust pipe installed. 1. Keep the water heater vertical and not inclined during the installation. As shown in the right diagram, drill installation holes on the wall.
-
Page 6: Using Methods
4. Installation of the Gas Pipe a. Select specified rubber hoses or qualified rigid pipes and gas pressure relief valve. (GB10546 and GB12244 compliant). Water Heater b. Select the dimensions of the pipe according to the Connector Specifications in the Technical Performance Parameter List. -
Page 7: Caution
2. Check whether the combustor is extinguished after Rated Hot Water Yield Capacity Xkg/min GD Midea Kitchen and Bath Appliances MFG Co., Ltd. the use and remember to shut off the main gas valve. Check whether the water 3. Frequently check whether there is a gas leak in the heater flames out, and turn connectors and the gas line. - Page 8 Prevention of Fire 1. Absolutely do not go out or go to bed with the water heater on. 2. Do not place any combustibles near the draft hood of the water heater. Do not use towel, clothes and other things to cover the vent. Prevention of Carbon Monoxide Poison 1.
-
Page 9: Packing List
Abnormalities Treatment of When abnormalities are detected such as a gas leak, abnormal combustion (such as tempering, flame lifting, yellow smoke or black smoke emission), peculiar smell and abnormal sound, or other emergent situations, immediately shut off the gas valve and contact the maintenance department or the gas company for treatment. -
Page 10: Troubleshooting
Troubleshooting The following phenomena are not failures: Problem Root Causes and Corrective Actions The vent gives off The room temperature is too low, so the exhaust gas is condensed into white fog when white smoke meeting the outdoor cold air. When the hot water is in low flow (below the start-up water pressure), the water heater The hot water becomes cold blows out and hot water becomes cold. -
Page 11: Internal Wiring Diagram
GD Midea Kitchen and Bath Appliances MFG Co., Ltd. 2. For the users of the products of GD Midea Kitchen and Bath Appliances MFG Co., Ltd., if the product breaks down because of quality problems, they can hold valid proof of purchase to the nearest special service department of GD Midea Kitchen and Bath Appliances MFG Co., Ltd for warranty. -
Page 12: Product Installation Service Card
GD Midea Kitchen and Bath Appliances MFG Co., Ltd. Product Installation Service Card (user’s copy) Name of the Service Unit (stamp): Telephone: Authorization No.: Customer Home Address Postcode Name Telephone Product Name Purchase Date Color Shopping Model No. Invoice No. - Page 13 GD Midea Kitchen and Bath Appliances MFG Co., Ltd. Pasting Position Product Installation Service Card (settlement copy) of the Bar Code Name of the Service Unit (stamp): Telephone: Authorization No.: Customer Home Address Postcode Name Telephone Product Name Color Purchase Date Shopping Model No.
