Manufactured for Rooms To Go
NO.
Description
A
Backrest
B
LSF Wing
C
RSF Wing
D
Seat
Wall plug
E
transformer
ASSEMBLY INSTRUCTION

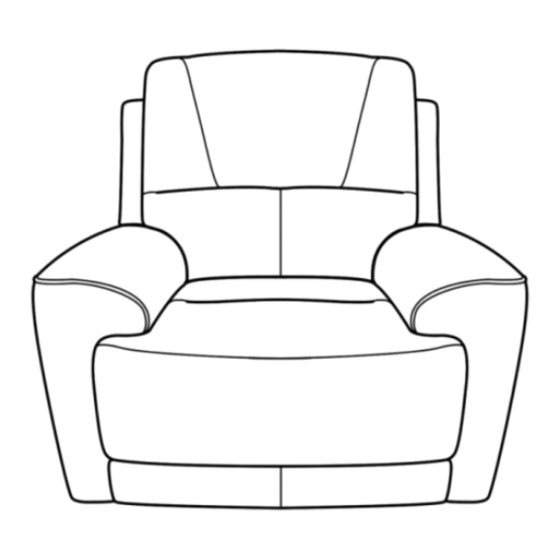

DUAL POWER RECLINER
HLVN 90491 / 90492 / 90493 / 90494
LIST OF PARTS
Item
Quantity
1
1
1
1
1
HLVN
SKU:
90491-50HP
15590498
90492-50HP
15590486
90493-50HP
15590474
90494-50HP
15590462
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO HLVN 90491-50HP
Summary of Contents for ROOMS TO GO HLVN 90491-50HP
- Page 1 ASSEMBLY INSTRUCTION DUAL POWER RECLINER HLVN 90491 / 90492 / 90493 / 90494 Manufactured for Rooms To Go HLVN SKU: 90491-50HP 15590498 90492-50HP 15590486 90493-50HP 15590474 90494-50HP 15590462 LIST OF PARTS Description Item Quantity Backrest LSF Wing RSF Wing Seat...
- Page 2 ASSEMBLY INSTRUCTIONS Step 1: Take out carefully the back cushion, wings & seat from the packing. Step 2: Positing the female metal receiver brackets over the male metal posts. Push down the female brackets over male posts simultaneously until each side is locked into place an audile "click" is heard. POWER CONNECTION Step 3: Lift velcro flap located at the bottom back.
- Page 3 ELECTRICAL CONTROLS 1 Press button to recline the sofa to desired position 2 Press button to raise the sofa to the upright position. 3 Press button to activate the headrest forward. 4 Press button to return headrest to the closed position. 5 Press home button returns both footrest and headrest to the original upright or closed position.
- Page 4 CARE AND CLEANING * Upholstered furniture is packaged tightly to protect it during transsit. This packaging can sometimes cause creases or misshaped cushions when the furniture comes out of the packaging. These issues will correct themselves over time as the fibers of the cushions are exposed to air. However, shaping the cushions with your hands can alleviate the creases and compressed fibers more quickly.
