Manufactured for Rooms To Go
NO.
Description
Backrest
A
(LSF, RSF)
B
LSF Wing
C
RSF Wing
D
Seat
Wall plug
E
transformer
F
Console backrest
Triangle nut
G
(for console)
ASSEMBLY INSTRUCTION

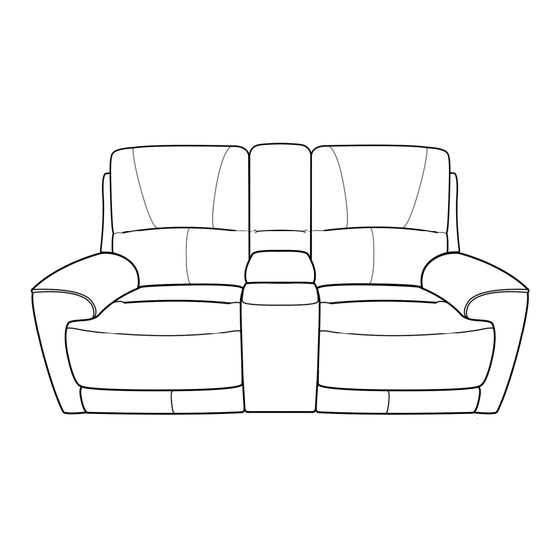

DUAL POWER CONSOLE LOVESEAT
HLVN 90491 / 90492 / 90493 / 90494
LIST OF PARTS
Item
Quantity
2
1
1
1
1
1
2
HLVN
SKU:
90491-54HP
15290492
90492-54HP
15290480
90493-54HP
15290478
90494-54HP
15290466
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO HLVN 90491-54HP
Summary of Contents for ROOMS TO GO HLVN 90491-54HP
- Page 1 ASSEMBLY INSTRUCTION DUAL POWER CONSOLE LOVESEAT HLVN 90491 / 90492 / 90493 / 90494 Manufactured for Rooms To Go HLVN SKU: 90491-54HP 15290492 90492-54HP 15290480 90493-54HP 15290478 90494-54HP 15290466 LIST OF PARTS Description Item Quantity Backrest (LSF, RSF) LSF Wing...
- Page 2 ASSEMBLY INSTRUCTIONS Step 1: Take out carefully the back cushions, wings, console's backrest with its triangle nuts & seat from the packing. Step 2: Positing the female metal receiver brackets over the male metal posts. Push down the female brackets over male posts simultaneously until each side is locked into place an audile "click"...
- Page 3 ELECTRICAL CONTROLS 1 Press button to recline the sofa to desired position 2 Press button to raise the sofa to the upright position. 3 Press button to activate the headrest forward. 4 Press button to return headrest to the closed position. 5 Press home button returns both footrest and headrest to the original upright or closed position.
- Page 4 CARE AND CLEANING * Upholstered furniture is packaged tightly to protect it during transsit. This packaging can sometimes cause creases or misshaped cushions when the furniture comes out of the packaging. These issues will correct themselves over time as the fibers of the cushions are exposed to air. However, shaping the cushions with your hands can alleviate the creases and compressed fibers more quickly.
