Manufactured for Rooms To Go
IMPORTANT: ASSEMBLING THIS UNIT NEEDS MINIMUM 2 PERSONS
NO.
Description
Backrest
A
(LSF, Middle, RSF)
B
Seat
Wall plug
C
transformer
D
Wood Leg
E
Plastic Leg
F
Bolt
ASSEMBLY INSTRUCTION
DUAL POWER SOFA
HLVN 7105R1 / 7105R2 / 7105R3
LIST OF PARTS
Item
Quantity
3
1
1
4
6
16
HLVN
7105R1-39
15171553
7105R2-39
15171565
7105R3-39
15171577
SKU:
Advertisement
Table of Contents
Related Manuals for ROOMS TO GO HLVN 7105R1-39
Summary of Contents for ROOMS TO GO HLVN 7105R1-39
- Page 1 ASSEMBLY INSTRUCTION DUAL POWER SOFA HLVN 7105R1 / 7105R2 / 7105R3 Manufactured for Rooms To Go IMPORTANT: ASSEMBLING THIS UNIT NEEDS MINIMUM 2 PERSONS HLVN SKU: 7105R1-39 15171553 7105R2-39 15171565 7105R3-39 15171577 LIST OF PARTS Description Item Quantity Backrest (LSF, Middle, RSF)
- Page 2 ASSEMBLY INSTRUCTIONS Step 1: Take out carefully the back cushions & inner carton from the packing. Step 2: With seat cushion facing upside down. Attach 4 pcs wood legs (using 4 bolts per leg) & turn 6 pcs plastic legs clockwise until it has been completely screwed in. Metal plate have to be aligned in a certain direction as shown in the following pictures.
- Page 3 ELECTRICAL CONTROLS 1 Press button to recline the sofa to desired position 2 Press button to raise the sofa to the upright position. 3 Press button to activate the headrest forward. 4 Press button to return headrest to the closed position. 5 Press home button returns both footrest and headrest to the original upright or closed position.
- Page 4 CARE AND CLEANING * Upholstered furniture is packaged tightly to protect it during transsit. This packaging can sometimes cause creases or misshaped cushions when the furniture comes out of the packaging. These issues will correct themselves over time as the fibers of the cushions are exposed to air. However, shaping the cushions with your hands can alleviate the creases and compressed fibers more quickly.
Need help?
Do you have a question about the HLVN 7105R1-39 and is the answer not in the manual?
Questions and answers

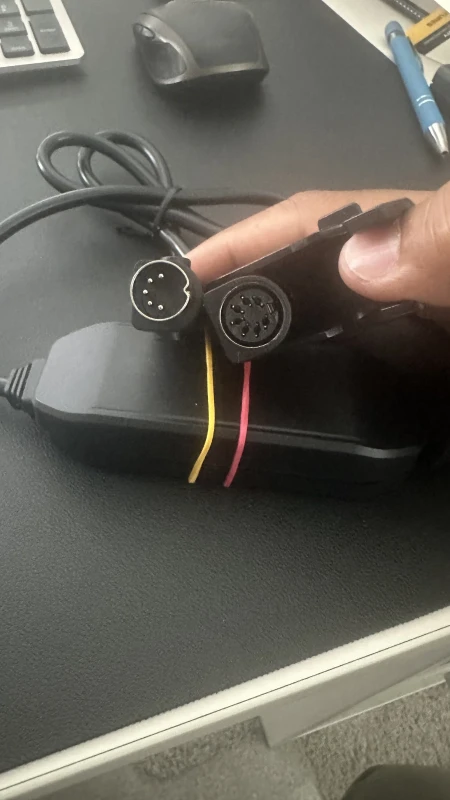

Need part: 5pin male to 7pin female for HVLN-7105R3-39
