ROOMS TO GO HLVN 90491-53HP Assembly Instruction

ROOMS TO GO HLVN 90491-53HP Assembly Instruction

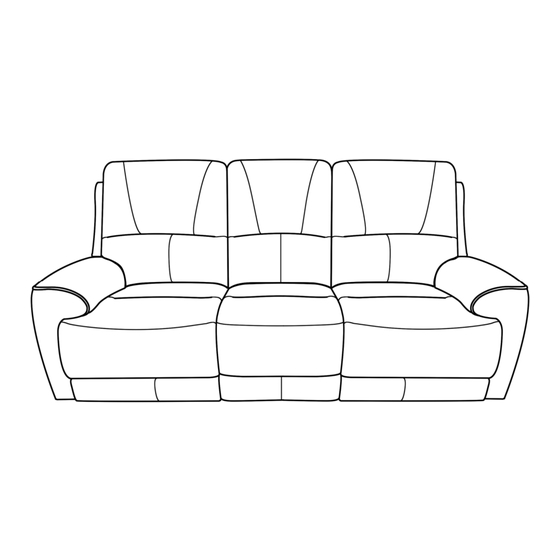

Dual power sofa

Advertisement

Quick Links

Manufactured for Rooms To Go
NO.
Description
Backrest
A
(LSF, Middle, RSF)
B
LSF Wing
C
RSF Wing
D
Seat
Wall plug
E
transformer
ASSEMBLY INSTRUCTION
DUAL POWER SOFA
HLVN 90491 / 90492 / 90493 / 90494
LIST OF PARTS
Item
Quantity
3
1
1
1
1
HLVN
SKU:
90491-53HP
15190490
90492-53HP
15190488
90493-53HP
15190476
90494-53HP
15190464

Advertisement

loading
Need help?

Need help?

Do you have a question about the HLVN 90491-53HP and is the answer not in the manual?

Questions and answers

Summary of Contents for ROOMS TO GO HLVN 90491-53HP

  • Page 1 ASSEMBLY INSTRUCTION DUAL POWER SOFA HLVN 90491 / 90492 / 90493 / 90494 Manufactured for Rooms To Go HLVN SKU: 90491-53HP 15190490 90492-53HP 15190488 90493-53HP 15190476 90494-53HP 15190464 LIST OF PARTS Description Item Quantity Backrest (LSF, Middle, RSF) LSF Wing...
  • Page 2 ASSEMBLY INSTRUCTIONS Step 1: Take out carefully the back cushions, wings & seat from the packing. Step 2: Positing the female metal receiver brackets over the male metal posts. Push down the female brackets over male posts simultaneously until each side is locked into place an audile "click" is heard. POWER CONNECTION Step 3: Lift velcro flap located at the bottom back.
  • Page 3 ELECTRICAL CONTROLS 1 Press button to recline the sofa to desired position 2 Press button to raise the sofa to the upright position. 3 Press button to activate the headrest forward. 4 Press button to return headrest to the closed position. 5 Press home button returns both footrest and headrest to the original upright or closed position.
  • Page 4 CARE AND CLEANING * Upholstered furniture is packaged tightly to protect it during transsit. This packaging can sometimes cause creases or misshaped cushions when the furniture comes out of the packaging. These issues will correct themselves over time as the fibers of the cushions are exposed to air. However, shaping the cushions with your hands can alleviate the creases and compressed fibers more quickly.
