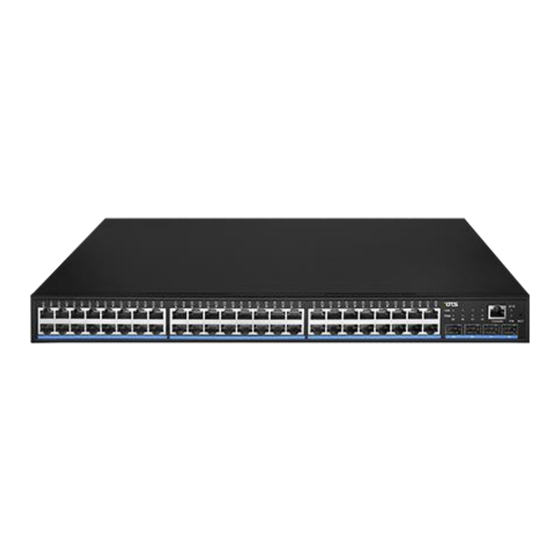

L2+ Managed 48-port 10/100/1000Base-TX (PoE+) + 4-port 1000Base-SFP Ethernet Switch with AC
Package Content
⚫
Managed PoE Switch x 1
⚫
AC Power Cable x 1
⚫
Mounting Accessory x 1
⚫
Quick Installation Guide x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
◎
Double check the wiring ( L/N ) is correct.
◎
Keep installation dry and clean.
◎
Do not open the chassis
Indicator light
POE Switch indicator light working information is as follow:
LED
POWER
LINK/ACT
connection
Quick Installation Guide
IES48242MPp-S
Read Before Install
Name
Color
states
Power
Green
ON
LED
Off
Device
Green
blink
LED
Off
Power Input
power normally
Don't have power, power switch doesn't
turn on, power abnormal
Corresponding already connect
normally
Corresponding port don't connect
normally
OT Systems Ltd. | www.ot-systems.com
Quick Installation Guide
IES48242MPp-S / version 1.0
Declaration
Advertisement
Related Manuals for OTS IES48242MPp-S
Summary of Contents for OTS IES48242MPp-S
- Page 1 Quick Installation Guide IES48242MPp-S / version 1.0 Quick Installation Guide IES48242MPp-S L2+ Managed 48-port 10/100/1000Base-TX (PoE+) + 4-port 1000Base-SFP Ethernet Switch with AC Power Input Package Content ⚫ Managed PoE Switch x 1 ⚫ AC Power Cable x 1 ⚫...
- Page 2 Quick Installation Guide IES48242MPp-S / version 1.0 ˙Power socket Connection power cord to PoE switch POE Switch power supply is AC100-240V~50/60Hz. ˙Ground terminal Please use guideline ground connection, in case lighting stroke. In order to avoid the product, sustain lighting stroke and extend using lifetime.
- Page 3 Quick Installation Guide IES48242MPp-S / version 1.0 4. Attention 1. Rack has wall grounded is the important guarantee of anti-static, anti-leakage, lightning protection, anti-interference, so make sure the rack ground wired is properly installed; 2. Rack-mounted device generally from down to up, avoid overload installation.
- Page 4 Quick Installation Guide IES48242MPp-S / version 1.0 The process of PoE switch install SFP module is as follow: Hold the SFP module from the side, insert it smoothly along the SFP port slot of PoE switch, until the SFP module is close touch with PoE switch.
