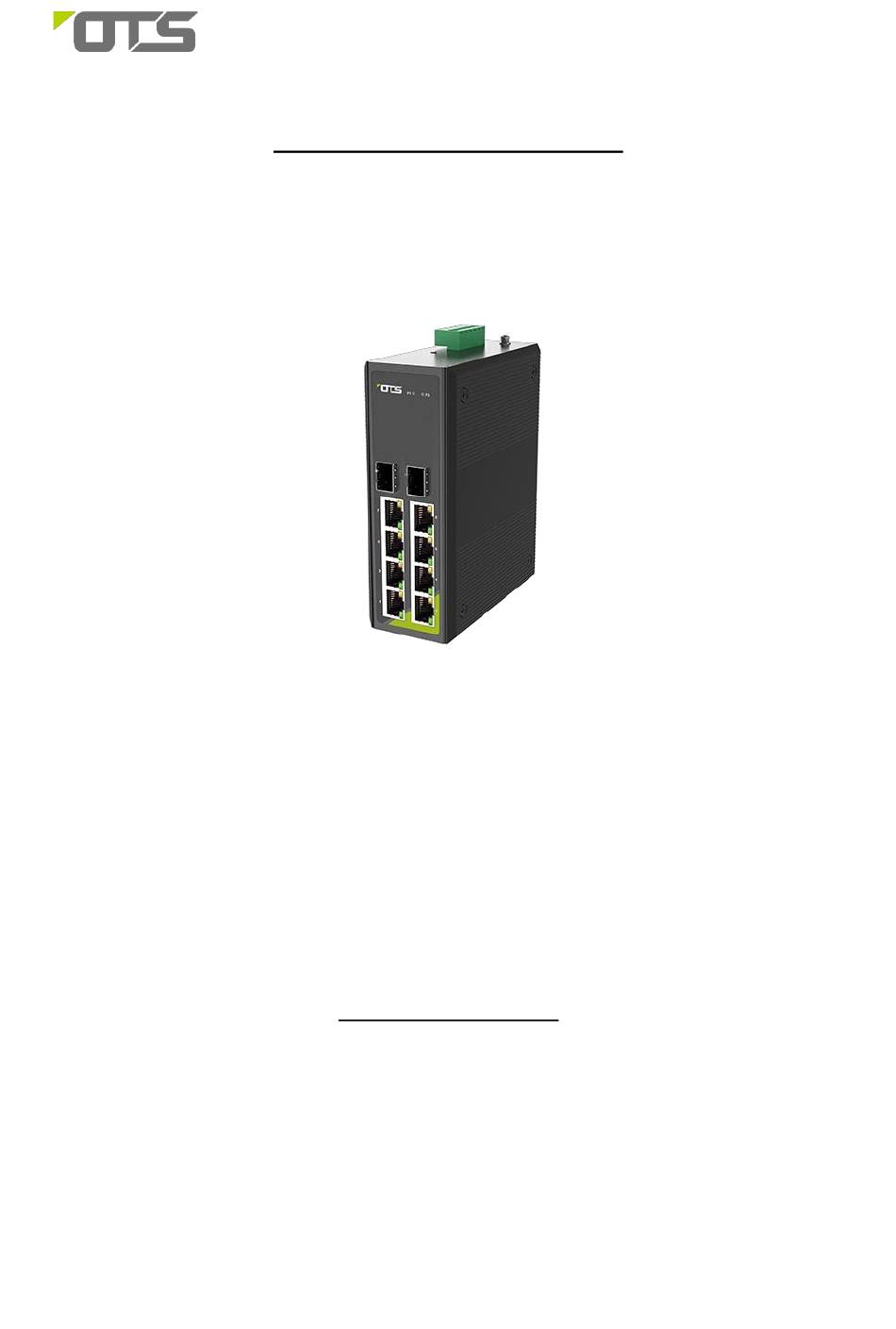

Hardened Grade Unmanaged 8-port 10/100/1000Base-TX (PoE++) + 2-port 1000Base-SFP Ethernet
ET8222Pp9H-S-DR is a DIN rail type media converter that supports external SFP. It is a Hardened grade
product whose operating temperature range is -40 ℃ to 75 ℃ . ET8222Pp9H-S-DR supports
10/100/1000M Ethernet port and 1000M SFP port. The Ethernet port supports both half-duplex and
full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2
core) as needed.
Package Content
⚫
Unmanaged PoE Switch x 1
⚫
Quick Start Guide x 1
⚫
Din Rail mount bracket x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
◎
Double check the wiring ( +/- ) is correct.
◎
Keep installation dry and clean.
◎
Do not open the chassis
Quick Installation Guide
ET8222Pp9H-S-DR
Switch with Redundant DC Power Inputs
Read Before Install
Quick Installation Guide
ET8222Pp9H-S-DR/ version 1.3
OT Systems Ltd. | www.ot-systems.com
