Description:
L2+ Managed 16-port 10/100/1000Base-TX (PoE++) + 4-port 10/100/1000Base-TX or
100/1000Base-SFP Combo Ethernet Switch
Overview:

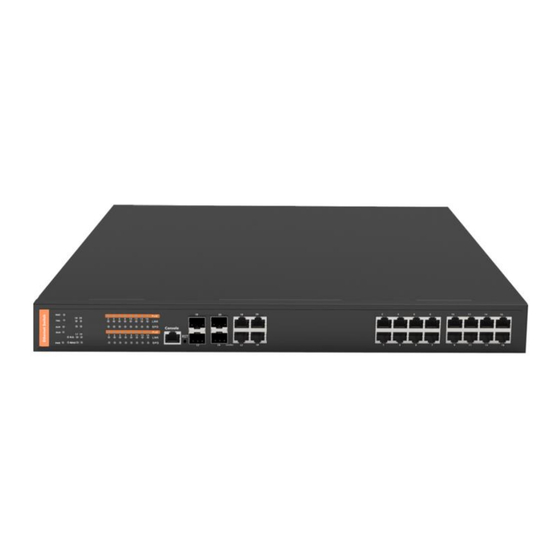

IES16242MPp9-S-8 is a new generation 16-Port Gigabit Managed PoE Switch with 16-
Port 10/100/1000Base-TX and 4-Port Combo with high quality design and reliability. It
is positioning in the broadband network market, to offer and realize Ethernet data
exchange, convergence and long-distance optical transmission with efficient bandwidth
and reliable fiber optic network solutions for users. The switch complies with various
characteristics such as mini size, fan-less, low power consumption, high reliability and
stability, and easy to maintain.
Package Content
⚫
Managed PoE Switch x 1
⚫
Mounting Accessory x 1
⚫
RJ-45 Console Cable x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
◎
Double check the wiring ( +/- ) is correct.
◎
Keep installation dry and clean.
◎
Do not open the chassis
Quick Installation Guide
IES16242MPp9-S-8
Read Before Install
Quick Installation Guide
IES16242MPp9-S-8 / version 1.0
OT Systems Ltd. | www.ot-systems.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OTS IES16242MPp9-S-8
Summary of Contents for OTS IES16242MPp9-S-8
- Page 1 100/1000Base-SFP Combo Ethernet Switch Overview: IES16242MPp9-S-8 is a new generation 16-Port Gigabit Managed PoE Switch with 16- Port 10/100/1000Base-TX and 4-Port Combo with high quality design and reliability. It is positioning in the broadband network market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users.
-
Page 2: Indicator Light
Quick Installation Guide IES16242MPp9-S-8 / version 1.0 Indicator light POE Switch indicator light working information is as follow: Name Color Working Declaration states POWER Power LED Green power normally Don’t have power, power switch doesn’t turn on, power abnormal LINK/ACT... - Page 3 Quick Installation Guide IES16242MPp9-S-8 / version 1.0 3. Put PoE switch on the appropriate location of the rack, crutch by bracket; using the L-shaped bracket to fix the two sides of rack with screw, make sure PoE switch is installed on the rack smooth and steady.
- Page 4 Quick Installation Guide IES16242MPp9-S-8 / version 1.0 5. Attention When PoE switch is connected to a workstation, server, router, or other Ethernet device, the Ethernet cable length cannot more than 100meter. The Ethernet RJ45 port Auto-MDI/MDIX function default open, when adopt Cat.5 cable to connect Ethernet network, both standard Ethernet cable and crossover Ethernet cable can be used;...
-
Page 5: Device Initialization
Quick Installation Guide IES16242MPp9-S-8 / version 1.0 link already connect normally, light is off, show the link is blocked. Please check circuit, confirm the opposite end device already start using. 6. Attention ⚫ Do not over bend the fiber, the radius of curvature should not be less than 10cm.
