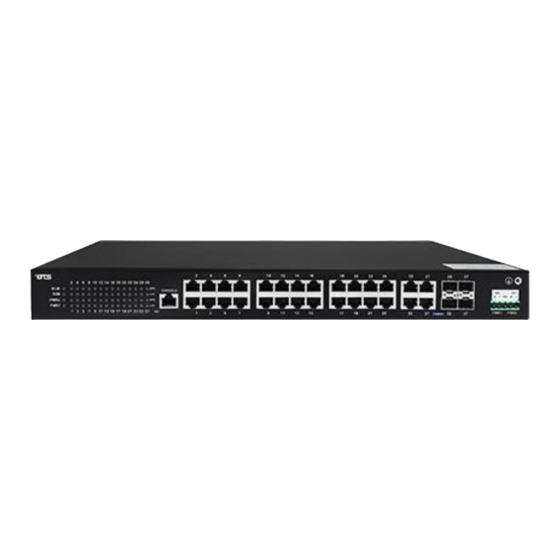

Expert Line Hardened Grade L2 Managed 24-port 10/100/1000Base-T (PoE+) + 4-
port 10/100/1000Base-T or 100/1000Base-FX SFP Combo Ethernet Switch (-40°C to 75°C)
Overview:
IES24242MPpH-S is a new generation, managed, industrial grade, L2 Gigabit PoE (Power
over Ethernet) switch that provides 24x10/100/1000Base-TX RJ45 ports plus
4x100/1000Base-FX SFP ports with 8xPoE ports (optional). It provides stable and
reliable Ethernet transmission with high quality design and reliability.
Package Content
⚫
Managed PoE Switch x 1
⚫
Adhesive Rubber Feet x 4
⚫
Mounting Accessory x 1
⚫
AC Power Cord x 1
⚫
RJ-45 Console Cable x 1
◎
Keep power off during installation

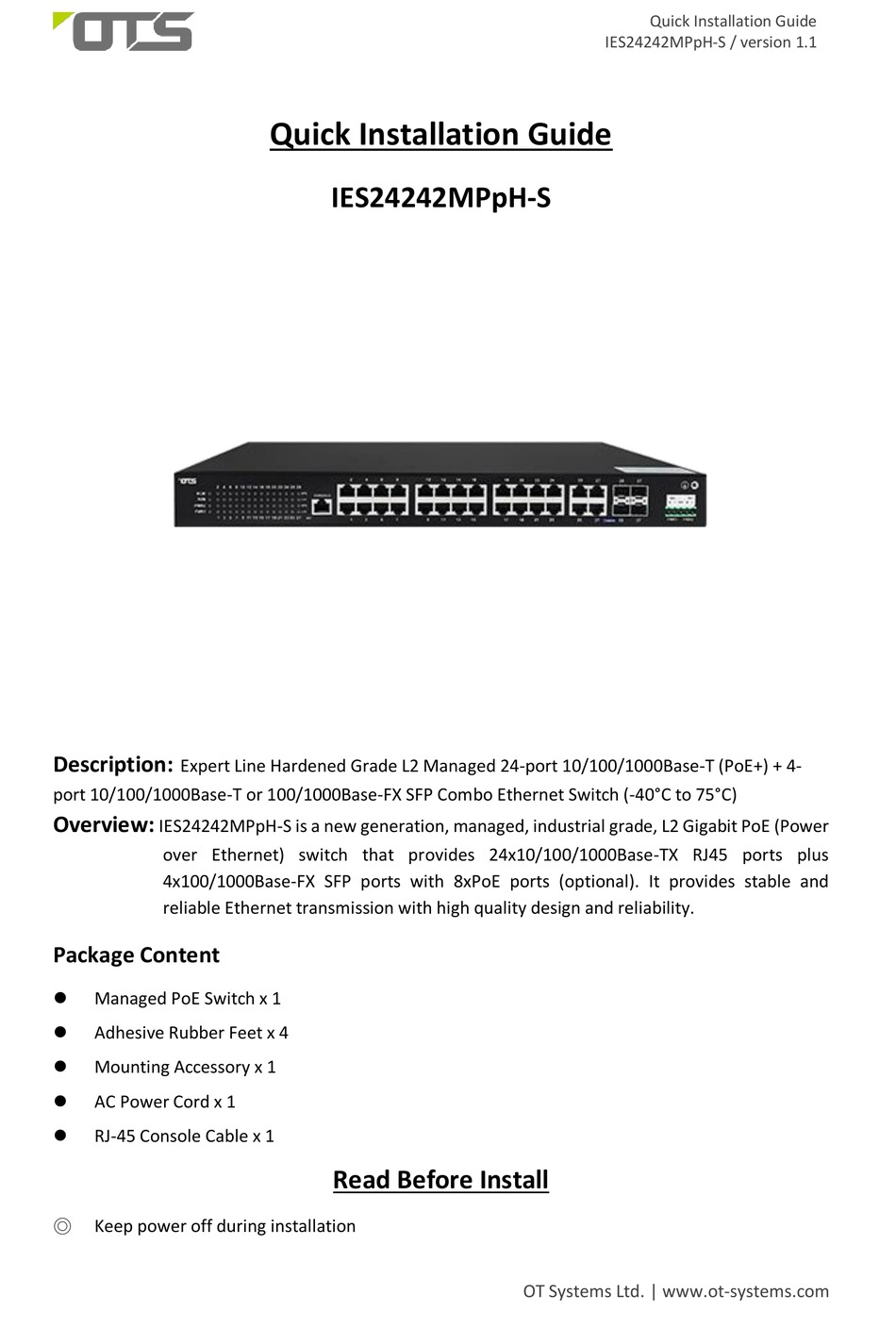

Quick Installation Guide
IES24242MPpH-S
Read Before Install
Quick Installation Guide
IES24242MPpH-S / version 1.1
OT Systems Ltd. | www.ot-systems.com
Advertisement
Table of Contents
Related Manuals for OTS IES24242MPpH-S
Summary of Contents for OTS IES24242MPpH-S
- Page 1 10/100/1000Base-T or 100/1000Base-FX SFP Combo Ethernet Switch (-40°C to 75°C) Overview: IES24242MPpH-S is a new generation, managed, industrial grade, L2 Gigabit PoE (Power over Ethernet) switch that provides 24x10/100/1000Base-TX RJ45 ports plus 4x100/1000Base-FX SFP ports with 8xPoE ports (optional). It provides stable and reliable Ethernet transmission with high quality design and reliability.
- Page 2 Quick Installation Guide IES24242MPpH-S / version 1.1 ◎ use Antistatic Wrist Strap correctly ◎ Make sure using correct power supply, voltage must match ◎ Make sure enough power supply from PSU that will not overload ◎ Double check the wiring ( +/- ) is correct.
- Page 3 Quick Installation Guide IES24242MPpH-S / version 1.1 Step 5: place the switch in a proper position in the rack, supported by the bracket; fix the L-shaped bracket on the fixed guide slots at both ends of the rack with screws, so as to ensure that the switch is stably and horizontally installed on the rack.
- Page 4 Quick Installation Guide IES24242MPpH-S / version 1.1 Power Input The Industrial Switch has two redundant power inputs, PRW1 and PWR2. The Phoenix terminal patch panel connector is located on the top panel of the switch. The front view of the patch panel is shown below.
- Page 5 Quick Installation Guide IES24242MPpH-S / version 1.1 Data transmission enabled Blink SFP port disconnected Ethernet port connected Ethernet Port (Yellow LED) Data transmission enabled Blink Ethernet port disconnected 1000M Ethernet Port (Yellow LED) 10/100M System Alarm normal General To ensure trouble free transportation and storage, all OT Systems products must be thoroughly inspected, tested and properly packed before delivery.
