Expert Line L2 Managed 16-port 10/100/1000Base-TX (PoE+) + 4-port
10/100/1000Base-TX or 100/1000Base-FX SFP Combo Ethernet Switch
Overview:

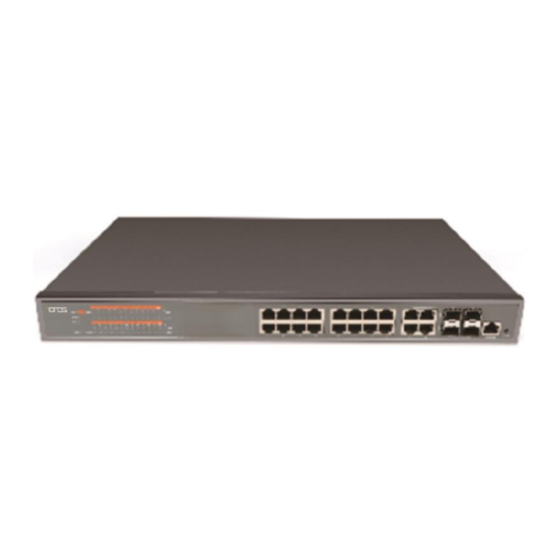

IES16242MPp-S is a new generation 16-Port Gigabit Managed PoE Switch with 16-Port
10/100/1000Base-TX and 4-Port Combo with high quality design and reliability. It is
positioning in the broadband network market, to offer and realize Ethernet data
exchange, convergence and long-distance optical transmission with efficient bandwidth
and reliable fiber optic network solutions for users. The switch complies with various
characteristics such as mini size, fan-less, low power consumption, high reliability and
stability, and easy to maintain.
Package Content
⚫
Managed PoE Switch x 1
⚫
Adhesive Rubber Feet x 4
⚫
Mounting Accessory x 1
⚫
AC Power Cord x 1
⚫
RJ-45 Console Cable x 1
◎
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match

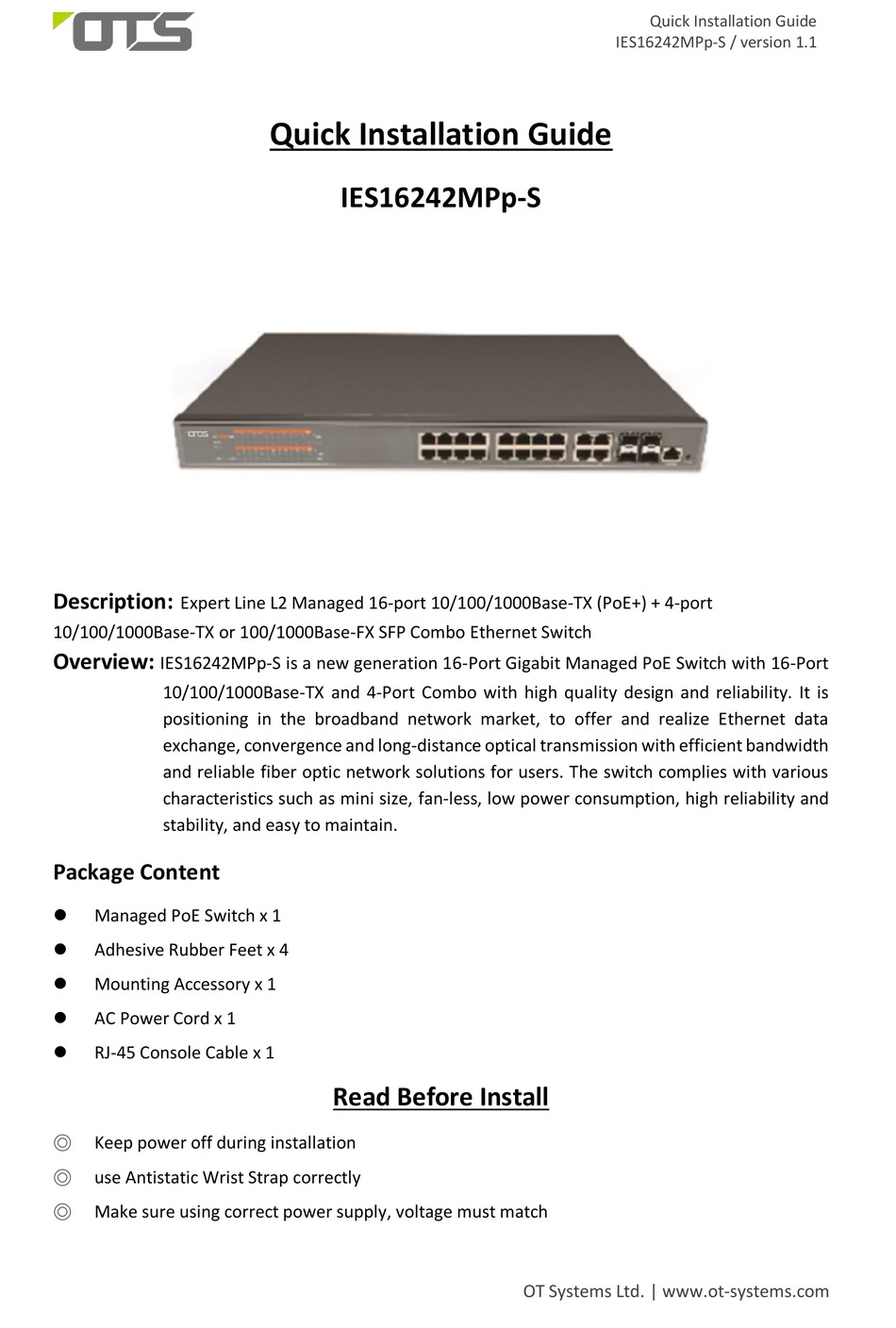

Quick Installation Guide
IES16242MPp-S
Read Before Install
Quick Installation Guide
IES16242MPp-S / version 1.1
OT Systems Ltd. | www.ot-systems.com
