Ambient Weather WS-10 User Manual page 3

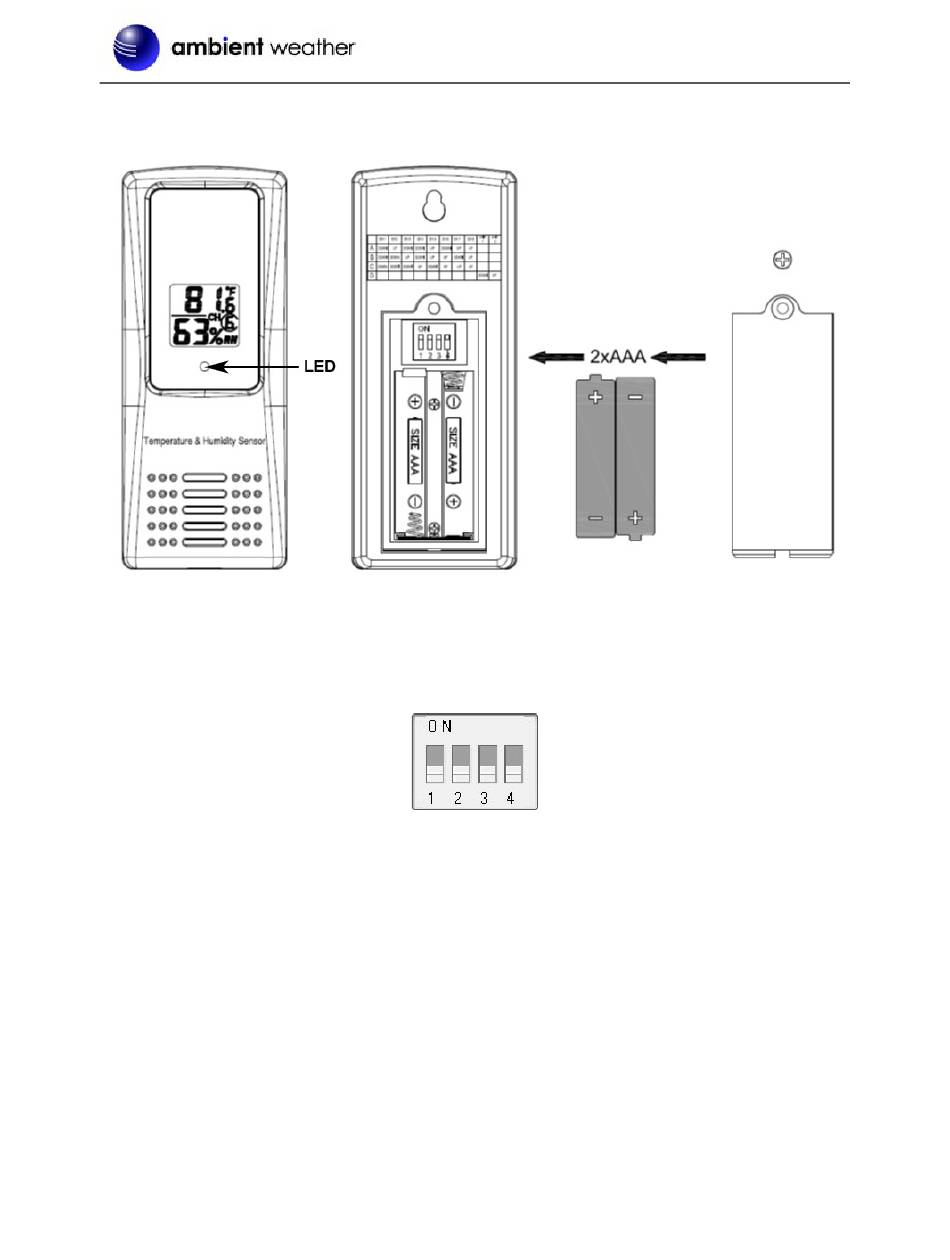

1. Remove the battery door on the back of the transmitter(s) by removing the set screw, as shown
in Figure 1 .
2. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the
transmitter.
Figure 2 displays all four switches in the OFF position (factory default setting).
3. Channel Number: The WS-10 supports up to eight transmitters, and includes three
transmitters. To set each channel number (the default is Channel 1), change Dip Switches 1, 2
and 3, as referenced in Table 1.
4. Temperature Units of Measure: To change the transmitter display units of measure (°F vs. °C),
change Dip Switch 4, as referenced in Table 1.
Version 1.4 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Figure 1
Figure 2
Page 3
