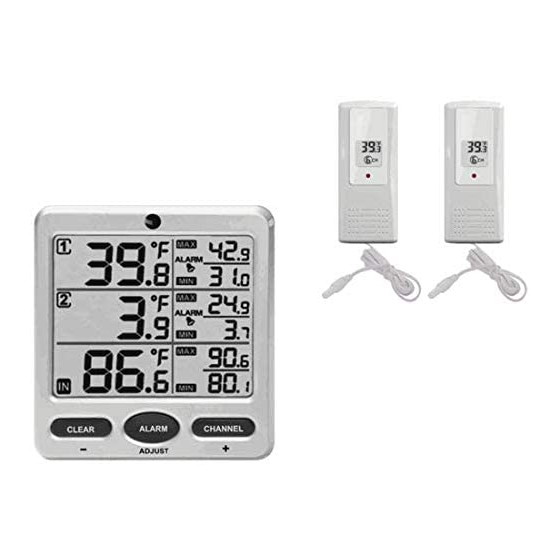

8-channel wireless refrigerator/freezer thermometer

Advertisement

Ambient Weather WS-09 8-Channel Wireless
Refrigerator/Freezer Thermometer User Manual

Table of Contents

1
Introduction ..................................................................................................................................... 2
2
Getting Started ................................................................................................................................ 2
Parts List ............................................................................................................................................. 2
2.1 Probe Thermometer Sensor Set Up ............................................................................................... 2
2.2 Display Console Set Up ................................................................................................................ 4
2.2.1
Display Console Layout ..................................................................................................... 5
2.2.2
Sensor Operation Verification ............................................................................................ 6
3
Remote Sensor Installation ............................................................................................................. 6
3.1
Refrigerator/Freezer Mounting ............................................................................................... 7
3.2 Wall Mounting .............................................................................................................................. 8
4
Console Operation........................................................................................................................... 9
4.1 Channel Selection ......................................................................................................................... 9
4.2 Min and Max Alarm ...................................................................................................................... 9
4.2.1
Turning On and Off the Alarm ........................................................................................... 9
4.2.2
Alarm Defaults ................................................................................................................. 10
4.2.3
Setting the Min and Max Alarm ....................................................................................... 10
4.2.4
Viewing the Min and Max Alarms ................................................................................... 10
4.3 Reset Max/Min ............................................................................................................................ 10
4.4
Temperature Units of Measure ............................................................................................. 10
4.5 Sensor Search Mode .................................................................................................................... 10
4.6 Best Practices for Wireless Communication ............................................................................... 11
4.7 Adjustment or Calibration ........................................................................................................... 11
5
Glossary of Terms ......................................................................................................................... 12
6
Specifications ................................................................................................................................ 12
6.1 Wireless Specifications ............................................................................................................... 12
6.2 Measurement Specifications ....................................................................................................... 12
6.3 Power Consumption .................................................................................................................... 12
7
Troubleshooting Guide .................................................................................................................. 12
8
Accessories ................................................................................................................................... 14
9
Liability Disclaimer ...................................................................................................................... 14
10
FCC Statement .......................................................................................................................... 14
11
Warranty Information ............................................................................................................... 15
Version 1.0
©Copyright 2013, Ambient LLC. All Rights Reserved.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-09 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ambient Weather WS-09

  • Page 1: Table Of Contents

    Ambient Weather WS-09 8-Channel Wireless Refrigerator/Freezer Thermometer User Manual Table of Contents Introduction ............................. 2 Getting Started ..........................2 Parts List ............................. 2 2.1 Probe Thermometer Sensor Set Up ....................2 2.2 Display Console Set Up ........................ 4 2.2.1 Display Console Layout ..................... 5 2.2.2...
  • Page 2: Introduction

    Note: The power up sequence must be performed in the order shown in this section (insert batteries in the remote transmitter(s) first, Display Console second). The WS-09 weather station consists of a display console (receiver), and two probe thermometers for the refrigerator/freezer.
  • Page 3 Figure 2 displays all four switches in the OFF position (factory default setting). Figure 2 3. Channel Number: The WS-09 supports up to eight transmitters. To set each channel number (the default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in Table 1.
  • Page 4: Display Console Set Up

    DIP SWITCH FUNCTION DOWN DOWN DOWN Channel 1 (refrigerator) DOWN DOWN Channel 2 (freezer) DOWN DOWN Channel 3 (optional) DOWN Channel 4 (optional) DOWN DOWN Channel 5 (optional) DOWN Channel 6 (optional) DOWN Channel 7 (optional) Channel 8 (optional) DOWN °F °C Table 1...
  • Page 5: Display Console Layout

    (alkaline or lithium, avoid rechargeable) batteries in the back of the display console. Figure 4 All of the LCD segments will light up for a few seconds to verify all segments are operating properly. 3. Replace the battery door, and fold out the desk stand and place the console in the upright position.
  • Page 6: Sensor Operation Verification

    Figure 5 1. Channel 1 Indicator 13. Low battery indicator 2. Reception Icon (solid when searching, 14. Minimum Temperature, 3,4,5,6,7,8, indictor flashes when updating) 3. Channel Selector 15. Min Temperature Indicator 4. Channel 1 Temperature 16. Indoor Temperature Indicator 5. Temperature units (°F or °C) 17.
  • Page 7: Refrigerator/Freezer Mounting

    3.1 Refrigerator/Freezer Mounting Each sensor includes a detachable suction cup that may be used to secure the remote sensor to the interior or exterior surface of the refrigerator/freezer, as shown in Figure 6. For better reception, we recommended installing the sensor to the outside of the refrigerator/freezer. If the refrigerator/freezer is a metal box, the wireless signal cannot escape, and the sensors must be placed on the outside.
  • Page 8: Wall Mounting

    Figure 7 Note: Both sensors have the capability of being placed inside or outside the refrigerator/freezer, but it is recommended you install it outside. This will extend the battery life, the sensor life, and improve wireless communication range. Note: Make sure that the refrigerator surface is smooth and clean, so that suction cups will not fall off.
  • Page 9: Console Operation

    Figure 8 4 Console Operation Note: The console has three buttons for easy operation: CLEAR/- button, ALARM/ADJUST button, and CHANNEL/+ button. 4.1 Channel Selection Press the CHANNEL/+ button to switch the display between the Channel 1 temperature, Channel 2 temperature, indoor temperature , remote sensors 3 through 8, and scroll mode .
  • Page 10: Alarm Defaults

    4.2.2 Alarm Defaults Channel Application Default Condition MIN (low alarm) ºF MAX (high alarm) ºF Refrigerator Freezer 4.2.3 Setting the Min and Max Alarm With the indicator arrow pointing at the appropriate channel, press and hold the ALARM button for 3 seconds and the MAX alarm will flash. Press the CHANNEL/+ button to increase the MAX alarm and the CLEAR/- button to decrease the MAX alarm.
  • Page 11: Best Practices For Wireless Communication

    4.6 Best Practices for Wireless Communication Wireless communication is susceptible to interference, distance, walls and metal barriers. We recommend the following best practices for trouble free wireless communication. 1. Electro-Magnetic Interference (EMI). Keep the console several feet away from computer monitors and TVs.
  • Page 12: Glossary Of Terms

    To calibrate temperature, we recommend a mercury or red spirit (fluid) thermometer. Bi-metal (dial) and other digital thermometers are not a good source and have their own margin of error. Using a local weather station in your area is also a poor source due to changes in location, timing (airport weather stations are only updated once per hour) and possible calibration errors (many official weather stations are not properly installed and calibrated).
  • Page 13 Problem Solution Wireless remote (probe thermometer) not If any of the sensor communication is lost, dashes (--.-) reporting in to console. will be displayed on the screen. To reacquire the signal, press and hold the CHANNEL/+ button for 3 seconds, There are dashes (--.-) on the display and the remote search icon will be constantly...
  • Page 14: Accessories

    Description Ambient Weather F007TP Add additional remote probe thermometers. Supports up to eight Wireless Probe thermometer remote sensors. for WS-09 Weather Stations Ambient Weather F007T Add additional indoor/outdoor temperature sensors. Supports up to Wireless Thermometer for eight remote sensors. WS-09 Weather Stations...
  • Page 15: Warranty Information

    Modifications not expressly approved by this company could void the user's authority to operate the equipment. Statement according to FCC part 15.105: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
