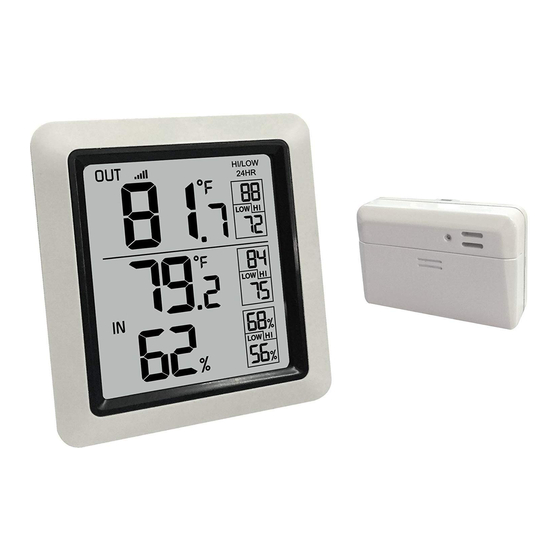

Ambient Weather WS-0270 User Manual

Wireless indoor / outdoor thermometer with indoor humidity
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ambient Weather WS-0270 Wireless Indoor / Outdoor
Thermometer with Indoor Humidity User Manual

Table of Contents

1
Introduction ..................................................................................................................................... 1
2
Getting Started ................................................................................................................................ 1
2.1
Parts List ................................................................................................................................. 2
2.2
Recommend Tools .................................................................................................................. 2
2.3
Thermometer Sensor Set Up .................................................................................................. 2
2.4
Display Console Set Up ......................................................................................................... 3
2.4.1
Display Console Layout ..................................................................................................... 4
2.4.2
Sensor Operation Verification ............................................................................................ 4
3
Wireless Sensor Installation ............................................................................................................ 4
3.1
Mounting with Zip Tie ........................................................................................................... 5
3.2
Mounting with Nail or Screw ................................................................................................. 5
4
Console Operation........................................................................................................................... 5
4.1
Temperature Units of Measure ............................................................................................... 5
4.2
High Low Record ................................................................................................................... 5
4.3
Sensor Resynchronization ...................................................................................................... 6
4.3.1
Best Practices for Wireless Communication ...................................................................... 6
5
Glossary of Terms ........................................................................................................................... 7
6
Specifications .................................................................................................................................. 7
6.1
Wireless Specifications .......................................................................................................... 7
6.2
Measurement Specifications ................................................................................................... 7
6.3
Power Consumption ............................................................................................................... 7
7
Troubleshooting Guide .................................................................................................................... 7
8
Liability Disclaimer ........................................................................................................................ 8
9
FCC Statement ................................................................................................................................ 9
10
Warranty Information ................................................................................................................. 9

1 Introduction

Thank you for your purchase of the Ambient Weather WS-0270 Wireless Indoor/Outdoor
Thermometer with Indoor Humidity. The following user guide provides step by step instructions for
installation, operation and troubleshooting. To download the latest manual and additional
troubleshooting tips, please visit:

2 Getting Started

Note: The power up sequence must be performed in the order shown in this section (insert
batteries in the remote transmitter(s) first, Display Console second).
The WS-0270 weather station consists of a display console (receiver), and a thermometer (remote
Version 1.2
©Copyright 2018, Ambient LLC. All Rights Reserved.
http://AmbientWeather.net/help
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-0270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ambient Weather WS-0270

Summary of Contents for Ambient Weather WS-0270

  • Page 1: Table Of Contents

    Note: The power up sequence must be performed in the order shown in this section (insert batteries in the remote transmitter(s) first, Display Console second). The WS-0270 weather station consists of a display console (receiver), and a thermometer (remote Version 1.2 ©Copyright 2018, Ambient LLC.

  • Page 2: Parts List

    transmitter). 2.1 Parts List Item Display Console Frame Dimensions (LxHxW): 3 x 3.5 x 1 in LCD Dimensions (LxW): 2.5 x 2.25" LCD Segment Height: 0.75 inch Thermometer transmitter (WH19) Dimensions (LxHxW): 2.75” x 1.75” x 0.75” User Manual 2.2 Recommend Tools Hammer for hanging remote thermometer transmitter.

  • Page 3: Display Console Set Up

    2.4 Display Console Set Up 1. Move the remote thermometer(s) about 5 to 10’ away from the display console (if the sensor is too close, it may not be received by the display console). 2. Remove the battery door on the back of the display, as shown in Figure 2. Insert one AA (alkaline or lithium, avoid rechargeable) battery in the back of the display console.

  • Page 4: Display Console Layout

    2.4.1 Display Console Layout Figure 3 Outdoor Temperature Indoor Temperature Indoor Humidity Outdoor Temperature High / Low Record Indoor Temperature High / Low Record Indoor Humidity High / Low Record Wireless Reception Icon 2.4.2 Sensor Operation Verification Verify the indoor and outdoor temperature match closely with the console and sensor array in the same location (about 5 to 10’...

  • Page 5: Mounting With Zip Tie

    Mounting with Zip Tie Mounting the sensor with a zip tie will result in better accuracy when mounting outside, since it is not touching another object. Other objects will store and radiate heat (or cold). Figure 4 Mounting with Nail or Screw To mount the sensor with a nail or screw, the cap must be less than or equal to 5.0 mm in diameter.

  • Page 6: Sensor Resynchronization

    is selected, the highs and lows will reset 24 hours after the battery is inserted. Sensor Resynchronization If the remote sensor is lost, dashes will be displayed. To resynchronize, press both the °C / °F and High / Low Record buttons at the same time for five seconds. While in the search mode, the reception search icon flash.

  • Page 7: Glossary Of Terms

    5 Glossary of Terms Term Definition Accuracy Accuracy is defined as the ability of a measurement to match the actual value of the quantity being measured. Hygrometer A hygrometer is a device that measures relative humidity. Relative humidity is a term used to describe the amount or percentage of water vapor that exists in air.

  • Page 8: Liability Disclaimer

    Problem Solution is reacquired, the remote search icon will turn on, and the current values will be displayed. The maximum line of sight communication range is 265’ and 100’ under most conditions. Move the sensor assembly closer to the display console. If the sensor assembly is too close (less than 5’), move the sensor assembly away from the display console.

  • Page 9: Fcc Statement

    No part of this manual may be reproduced without written authorization of the manufacturer. Ambient, LLC WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. 9 FCC Statement Statement according to FCC part 15.19: This device complies with part 15 of the FCC rules.
  • Page 10 due to any source of interference or metal obstructions and (7) extreme acts of nature, such as lightning strikes or floods. This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances.
