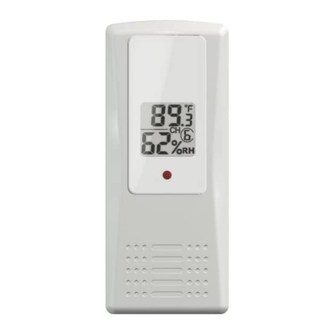

Ambient Weather WS-07 Wireless Indoor/Outdoor
8-Channel Thermo-Hygrometer with Jumbo Display User

Table of Contents

1
Introduction ..................................................................................................................................... 2
2
Getting Started ................................................................................................................................ 2
2.1
Parts List ................................................................................................................................. 2
2.2
Recommend Tools .................................................................................................................. 2
2.3 Thermo-Hygrometer Sensor Set Up .............................................................................................. 2
2.3
Display Console Set Up ......................................................................................................... 4
2.3.1
Display Console Layout ..................................................................................................... 5
2.3.2
Sensor Operation Verification ............................................................................................ 6
3
Remote Sensor Installation ............................................................................................................. 7
4
Display Features .............................................................................................................................. 7
4.1 Comfort Icon ................................................................................................................................. 7
4.2 Rate of Change Icon ...................................................................................................................... 7
5
Console Operation........................................................................................................................... 7
5.1 Min/Max Mode ............................................................................................................................. 8
5.2 Indoor/Outdoor Channel Selection ............................................................................................... 8
5.3 Temperature Units of Measure ...................................................................................................... 8
5.4 Sensor Search Mode ...................................................................................................................... 8
5.5 Best Practices for Wireless Communication ................................................................................. 8
5.6 Adjustment or Calibration ............................................................................................................. 9
5.6.1
Humidity Calibration ......................................................................................................... 9
5.6.2 Temperature Calibration .................................................................................................... 10
6
Glossary of Terms ......................................................................................................................... 11
7
Specifications ................................................................................................................................ 11
7.1 Wireless Specifications ............................................................................................................... 11
7.2 Measurement Specifications ....................................................................................................... 11
7.3 Power Consumption .................................................................................................................... 11
8
Troubleshooting Guide .................................................................................................................. 11
9
Accessories ................................................................................................................................... 13
10
Liability Disclaimer .................................................................................................................. 13
11
FCC Statement .......................................................................................................................... 13
12
Warranty Information ............................................................................................................... 14
Version 1.0
©Copyright 2013, Ambient LLC. All Rights Reserved.
Manual
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-07 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ambient Weather WS-07

Summary of Contents for Ambient Weather WS-07

  • Page 1: Table Of Contents

    Ambient Weather WS-07 Wireless Indoor/Outdoor 8-Channel Thermo-Hygrometer with Jumbo Display User Manual Table of Contents Introduction ............................. 2 Getting Started ..........................2 Parts List ..........................2 Recommend Tools ........................2 2.3 Thermo-Hygrometer Sensor Set Up ....................2 Display Console Set Up ......................4 2.3.1...

  • Page 2: Introduction

    Note: The power up sequence must be performed in the order shown in this section (insert batteries in the remote transmitter(s) first, Display Console second). The WS-07 weather station consists of a display console (receiver), and a thermo-hygrometer (remote transmitter).
  • Page 3 Figure 2 displays all four switches in the OFF position (factory default setting). Figure 2 3. Channel Number: The WS-07 supports up to eight transmitters. To set each channel number (the default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in Table 1.

  • Page 4: Display Console Set Up

    DIP SWITCH FUNCTION DOWN DOWN DOWN Channel 1 DOWN DOWN Channel 2 DOWN DOWN Channel 3 DOWN Channel 4 DOWN DOWN Channel 5 DOWN Channel 6 DOWN Channel 7 Channel 8 DOWN °F °C Table 1 5. Insert two AAA batteries. 6.

  • Page 5: Display Console Layout

    Figure 4 All of the LCD segments will light up for a few seconds to verify all segments are operating properly. 3. Replace the battery door, and fold out the desk stand and place the console in the upright position. The console will instantly display indoor temperature and humidity as designated by the icon.

  • Page 6: Sensor Operation Verification

    Figure 5 1. Temperature 6. Relative Humidity (%) 2. Min/Max Record mode 7. Humidity Comfort Icon 3. Temperature, Rate of Change indicator 8. Reception Icon (solid when searching, flashes when 4. Temperature units (°F or °C) updating) 5. Humidity, Rate of Change indicator 9.

  • Page 7: Remote Sensor Installation

    3 Remote Sensor Installation It is recommended you mount the remote sensor on a north facing wall, in a shaded area. Direct sunlight and radiant heat sources will result in inaccurate temperature readings. Although the sensor is water resistant, it is best to mount in a well protected area, such as under an eve. Use a screw or nail (not included) to affix the remote sensor to the wall, as shown in Figure 6.

  • Page 8: Min/Max Mode

    5.1 Min/Max Mode The Min/Max mode displays the minimum and maximum temperature and humidity (since reset of the unit) for the indoor, remote channel 1 through 8 sensors. Prior to entering the MIN/MAX mode, press the CHANNEL/+ button to select the temperature and humidity values you wish to view.

  • Page 9: Adjustment Or Calibration

    communication is intermittent, try turning off these other devices for troubleshooting purposes. You may need to relocate the transmitters or receivers to avoid intermittent communication. 3. Line of Sight Rating. This device is rated at 300 feet line of sight (no interference, barriers or walls) but typically you will get 100 feet maximum under most real-world installations, which include passing through barriers or walls.

  • Page 10: Temperature Calibration

    Once the displayed humidity equals the calibrated source, press and hold the ADJUST button for three seconds, or wait 15 seconds for timeout, and the humidity value will stop flashing. Discussion: Humidity is a difficult parameter to measure electronically and drifts over time due to contamination.

  • Page 11: Glossary Of Terms

    6 Glossary of Terms Term Definition Accuracy Accuracy is defined as the ability of a measurement to match the actual value of the quantity being measured. Hygrometer A hygrometer is a device that measures relative humidity. Relative humidity is a term used to describe the amount or percentage of water vapor that exists in air.
  • Page 12 Problem Solution There are dashes (--.-) on the display and the remote search icon will be constantly console. displayed. Once the signal is reacquired, the remote search icon will turn off, and the current values will be displayed. The maximum line of sight communication range is 300’ and 100’...

  • Page 13: Accessories

    Thermo-Hygrometer for WS-07 Weather Stations Ambient Weather WS-07-C Add as many display consoles as you like to your existing system to WS-07 Big Digit 8-Channel display the remote sensor in different locations. Wireless Thermo-Hygrometer, Console Only Energizer AAAS Lithium AAA lithium batteries for cold weather climates.

  • Page 14: Warranty Information

    This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Statement according to FCC part 15.21: Modifications not expressly approved by this company could void the user's authority to operate the equipment.
  • Page 15 Version 1.0 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 15...
