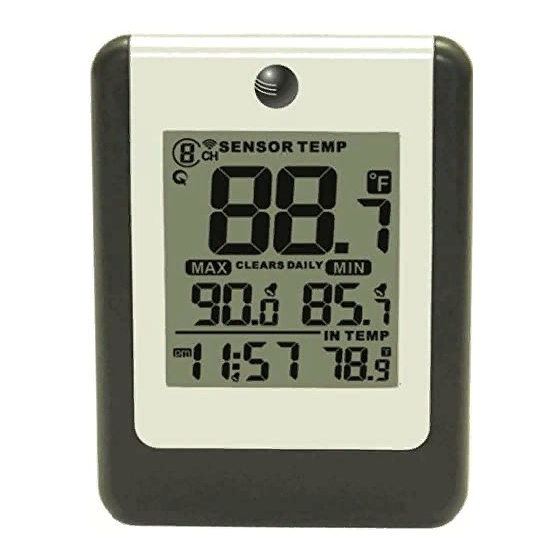

Ambient Weather WS-15 Wireless 8-Channel Thermometer
with Plastic Waterproof Probe Thermometer User Manual

Table of Contents

1
Introduction ..................................................................................................................................... 2
2
Getting Started ................................................................................................................................ 3
2.1 Parts List ....................................................................................................................................... 3
2.2 Probe Thermometer Sensor Set Up ............................................................................................... 3
3
Remote Sensor Installation ............................................................................................................. 5
4 Display Console Set Up ....................................................................................................................... 7
4.1 Display Console Layout ................................................................................................................ 8
4.2 Sensor Operation Verification ....................................................................................................... 8
5 Display Features ................................................................................................................................... 8
5.1 Rate of Change Icon ...................................................................................................................... 8
5.2 Console Operation......................................................................................................................... 8
5.2.1 Set Mode ................................................................................................................................ 9
5.2.2 Viewing the High and Low Alarms ........................................................................................ 9
5.2.3 Alarm Defaults ....................................................................................................................... 9
5.2.4
Setting the Min and Max Alarm ......................................................................................... 9
5.3 Manually Reset Max/Min ........................................................................................................... 10
5.4 Channel Selection ....................................................................................................................... 10
5.5 Sensor Search Mode .................................................................................................................... 10
5.6 Best Practices for Wireless Communication ............................................................................... 10
5.7 Adjustment or Calibration ........................................................................................................... 11
5.7.1 Remote Sensor Temperature Calibration.............................................................................. 11
5.7.2 Indoor (Console) Temperature Calibration .......................................................................... 11
6
Glossary of Terms ......................................................................................................................... 12
7
Specifications ................................................................................................................................ 12
7.1 Wireless Specifications ............................................................................................................... 12
7.2 Measurement Specifications ....................................................................................................... 12
7.3 Power Consumption .................................................................................................................... 12
8
Troubleshooting Guide .................................................................................................................. 13
9
Liability Disclaimer ...................................................................................................................... 14
10
FCC Statement .......................................................................................................................... 14
11
Warranty Information ............................................................................................................... 15
Version 1.0
©Copyright 2014, Ambient LLC. All Rights Reserved.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ambient Weather WS-15

Summary of Contents for Ambient Weather WS-15

  • Page 1: Table Of Contents

    Ambient Weather WS-15 Wireless 8-Channel Thermometer with Plastic Waterproof Probe Thermometer User Manual Table of Contents Introduction ............................. 2 Getting Started ..........................3 2.1 Parts List ............................3 2.2 Probe Thermometer Sensor Set Up ....................3 Remote Sensor Installation ......................5 4 Display Console Set Up ........................

  • Page 2: Introduction

    1 Introduction Thank you for your purchase of the Ambient Weather WS-15 Wireless 8-Channel Thermometer with Plastic Waterproof Probe Thermometer with Daily Min/Max Display. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit the FAQ website: http://ambientweather.wikispaces.com/ws15...

  • Page 3: Getting Started

    Note: The power up sequence must be performed in the order shown in this section (insert batteries in the remote transmitter(s) first, Display Console second). The WS-15 weather station consists of a display console (receiver), and a probe thermometer (remote transmitter).
  • Page 4 1. Remove the battery door on the back of the sensor by removing the set screw, as shown in Figure 1 . Figure 1 2. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the transmitter.

  • Page 5: Remote Sensor Installation

    DIP SWITCH FUNCTION DOWN DOWN DOWN Channel 1 DOWN DOWN Channel 2 DOWN DOWN Channel 3 DOWN Channel 4 DOWN DOWN Channel 5 DOWN Channel 6 DOWN Channel 7 Channel 8 DOWN °F °C Table 1 5. Insert two AAA batteries. 6.
  • Page 6 Use a screw or nail (not included) to affix the remote sensor to the wall, as shown in Figure 4. Note: If measuring outside air temperature, we recommend mounting the sensor in the shade, on the north side of the house or structure to avoid radiant heat transfer. Figure 4 Version 1.0 ©Copyright 2014, Ambient LLC.

  • Page 7: Display Console Set Up

    4 Display Console Set Up Move the remote sensor(s) about 5 to 10’ away from the display console (if the sensor is too close, it may not be received by the display console). If you have more than one remote sensor, make sure they are all powered up and transmitting on different channels.

  • Page 8: Display Console Layout

    is no longer constantly on, otherwise the remote sensor search mode will be terminated. When the remote sensor temperature has been received, the console will automatically switch to the normal mode, and all further settings can be performed. If the remote does not update, please reference the troubleshooting guide in Section 8. 4.1 Display Console Layout Figure 6 4.2 Sensor Operation Verification...

  • Page 9: Set Mode

    5.2.1 Set Mode The Set Mode allows you to set the time and time format, time alarm and units of measure. To enter the set mode, press and hold the SET key for 3 seconds. 1. 12 hr/24 hr time format. Press the [+] key to switch between 12 and 24 hour format. Press the SET key to advance to the next setting.

  • Page 10: Manually Reset Max/Min

    button to decrease the LOW alarm. Press and hold the + or - button to change rapidly. While the alarm value is flashing, press and hold the SET button for three seconds to toggle the alarm on and off the alarm.

  • Page 11: Adjustment Or Calibration

    The following is a table of reception loss vs. the transmission medium. Each “wall” or obstruction decreases the transmission range by the factor shown below. Medium RF Signal Strength Reduction Glass (untreated) 5-15% Plastics 10-15% Wood 10-40% Brick 10-40% Concrete 40-80% Metal 90-100%...

  • Page 12: Glossary Of Terms

    Once the displayed temperature equals the calibrated source, press and hold the SET button for three seconds, or wait 15 seconds for timeout, and the temperature value will stop flashing. Discussion: Temperature errors can occur when a sensor is placed too close to a heat source (such as a building structure, the ground or trees).

  • Page 13: Troubleshooting Guide

    8 Troubleshooting Guide If your question is not answered here, you can contact us as follows: 1. Email Support: support@ambientweather.com 2. Live Chat Support: www.ambientweather.com/chat.html (M-F 8am to 4pm Arizona Time) 3. Technical Support: 480-283-1644 (M-F 8am to 4pm Arizona Time) Problem Solution Wireless remote (thermo-hygrometer) not...

  • Page 14: Liability Disclaimer

    Problem Solution Use the calibration feature to match the indoor and probe temperature to a known source. Display console contrast is weak Replace console batteries with a fresh set of batteries. 9 Liability Disclaimer Please help in the preservation of the environment and return used batteries to an authorized depot. The electrical and electronic wastes contain hazardous substances.

  • Page 15: Warranty Information

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 11 Warranty Information Ambient, LLC provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship.
