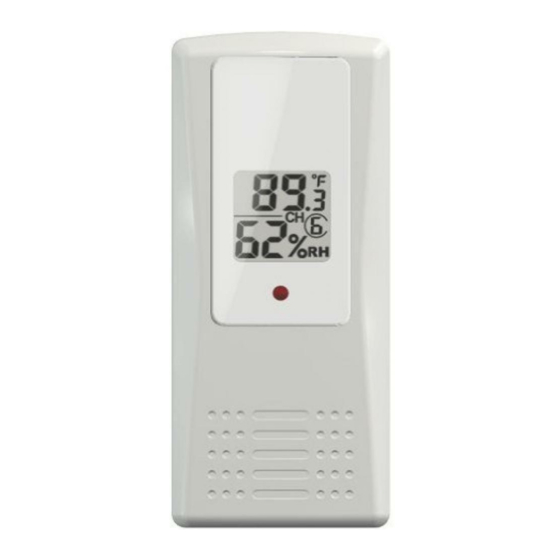

Ambient Weather WS-0416 Wireless Indoor/Outdoor
8-Channel Thermo-Hygrometer User Manual
Table of Contents
1
Introduction ..................................................................................................................................... 1
2
Getting Started ................................................................................................................................ 2
2.1 Parts List ....................................................................................................................................... 2
2.2 Recommend Tools ......................................................................................................................... 2
2.3 Thermo-Hygrometer Sensor Set Up .............................................................................................. 2
2.4 Display Console Set Up ................................................................................................................ 5
2.4.1
Display Console Layout ..................................................................................................... 5
2.4.2
Sensor Operation Verification ............................................................................................ 6
3
Remote Sensor Installation ............................................................................................................. 7
4
Display Features .............................................................................................................................. 7
4.1 Comfort Icon ................................................................................................................................. 7
4.2 Rate of Change Icon ...................................................................................................................... 7
5
Console Operation........................................................................................................................... 8
5.1 Min/Max Mode ............................................................................................................................. 8
5.2 Clearing Min/Max Daily ............................................................................................................... 8
5.3 Backlight Operation ...................................................................................................................... 8
5.4 Indoor/Outdoor Channel Selection ............................................................................................... 8
5.5 Temperature Units of Measure ...................................................................................................... 8
5.6 Sensor Search Mode ...................................................................................................................... 8
5.7 Best Practices for Wireless Communication ................................................................................. 9
5.8 Adjustment or Calibration ........................................................................................................... 10
5.8.1
Humidity Calibration ....................................................................................................... 10
5.8.2
Temperature Calibration ................................................................................................... 11
6
Glossary of Terms ......................................................................................................................... 11
7
Specifications ................................................................................................................................ 11
7.1 Wireless Specifications ............................................................................................................... 11
7.2 Measurement Specifications ....................................................................................................... 12
7.3 Power Consumption .................................................................................................................... 12
8
Troubleshooting Guide .................................................................................................................. 13
9
Accessories ................................................................................................................................... 14
10
Liability Disclaimer .................................................................................................................. 14
11
FCC Statement .......................................................................................................................... 15
12
Warranty Information ............................................................................................................... 15
1 Introduction
Thank you for your purchase of the Ambient Weather WS-0416 Wireless Indoor/Outdoor 8-Channel
Thermo-Hygrometer. The following user guide provides step by step instructions for installation,
operation and troubleshooting. To download the latest manual and additional troubleshooting tips,
please visit:
Version 1.0
©Copyright 2017, Ambient LLC. All Rights Reserved.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ambient Weather WS-0416
Summary of Contents for Ambient Weather WS-0416
-
Page 1: Table Of Contents
Warranty Information ....................... 15 1 Introduction Thank you for your purchase of the Ambient Weather WS-0416 Wireless Indoor/Outdoor 8-Channel Thermo-Hygrometer. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit: Version 1.0... -
Page 2: Getting Started
Note: The power up sequence must be performed in the order shown in this section (insert batteries in the remote transmitter(s) first, Display Console second). The WS-0416 weather station consists of a display console (receiver), and a thermo-hygrometer (remote transmitter). - Page 3 1. Remove the battery door on the back of the sensor by removing the set screw, as shown in Figure 1 . Figure 1 2. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the transmitter.
- Page 4 DIP SWITCH FUNCTION DOWN DOWN DOWN Channel 1 DOWN DOWN Channel 2 DOWN DOWN Channel 3 DOWN Channel 4 DOWN DOWN Channel 5 DOWN Channel 6 DOWN Channel 7 Channel 8 DOWN °F °C Table 1 5. Insert two AAA batteries. 6.
-
Page 5: Display Console Set Up
2.4 Display Console Set Up 1. Move the remote thermo-hygrometer(s) about 5 to 10’ away from the display console (if the sensor is too close, it may not be received by the display console). If you have more than one thermo-hygrometer, make sure they are all powered up and transmitting on different channels. -
Page 6: Sensor Operation Verification
Figure 5 1. Temperature 9. Humidity Calibrated Icon (when the calibration is 2. Temperature units (°F or °C) displayed ) 3. Temperature, Rate of Change indicator 10. Humidity Comfort Colorful Icon 4. Temperature Calibrated Icon (when the 11. Relative Humidity (%) calibration is displayed ) 12. -
Page 7: Remote Sensor Installation
3 Remote Sensor Installation It is recommended you mount the remote sensor on a north facing wall, in a shaded area. Direct sunlight and radiant heat sources will result in inaccurate temperature readings. Although the sensor is water resistant, it is best to mount in a protected area, such as under an eve. Use a screw or nail (not included) to affix the remote sensor to the wall, as shown in Figure 6. -
Page 8: Console Operation
5 Console Operation Note: The console has three buttons for easy operation: MIN/MAX/- button, SET button, and CH/+ button. 5.1 Min/Max Mode The Min/Max mode displays the minimum and maximum temperature and humidity (since reset of the unit) for the indoor, remote channel 1 through 8 sensors. Prior to entering the MIN/MAX mode, press the CH/+ button to select the temperature and humidity values you wish to view. -
Page 9: Best Practices For Wireless Communication
1. If a specific channel is lost, press the CH/+ button to display this channel, then Press and hold the CH/+ button for 3 seconds, and the remote search icon will be constantly displayed for up to 10 minutes. Once the signal is reacquired, the remote search icon will turn off, and the current values will be displayed. -
Page 10: Adjustment Or Calibration
5.8 Adjustment or Calibration Note: The calibrated value can only be adjusted on the console. The remote sensor(s) always displays the un-calibrated or measured value. Note: The measured humidity range is between 10 and 99%. Humidity cannot be accurately measured outside of this range. Thus, the humidity cannot be calibrated below 10% or above 99%. The purpose of calibration is to fine tune or correct for any sensor error associated with the devices margin of error. -
Page 11: Temperature Calibration
5.8.2 Temperature Calibration Prior to entering the calibration mode, press the CH/+ button to select the temperature you wish to adjust. To enter the temperature calibration mode, press and hold the SET and CH/+ button for 5 seconds and the temperature value will begin flashing. Press the CH/+ button to increase the temperature and the MIN/MAX/- button to decrease the temperature reading in 0.1°... -
Page 12: Measurement Specifications
7.2 Measurement Specifications The following table provides specifications for the measured parameters. Measurement Range Accuracy Resolution Indoor Temperature 32 to 140 °F ± 1 °F 0.1 °F Outdoor Temperature -40 to 140 °F ± 1 °F 0.1 °F Indoor Humidity 10 to 99 % ±... -
Page 13: Troubleshooting Guide
8 Troubleshooting Guide If your question is not answered here, you can contact us as follows: 1. Email Support: support@ambientweather.com 2. Live Chat Support: www.ambientweather.com/chat.html (M-F 8am to 4pm Arizona Time) 3. Technical Support: 480-283-1644 (M-F 8am to 4pm Arizona Time) Problem Solution Wireless remote (thermo-hygrometer) not... -
Page 14: Accessories
Replace console batteries with a fresh set of batteries. 9 Accessories The following software and hardware accessories are available for this weather station at www.AmbientWeather.com Accessory Description Ambient Weather F007TH Add additional remote thermo-hygrometers. Supports up to eight Wireless remote sensors. Thermo-Hygrometer for WS0416 Weather Stations... -
Page 15: Fcc Statement
responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place. This product is designed for use in the home only as indication of weather conditions. This product is not to be used for medical purposes or for public information. The specifications of this product may change without prior notice. - Page 16 Warranty service can only be performed by a Ambient, LLC. The original dated bill of sale must be presented upon request as proof of purchase to Ambient, LLC. Your Ambient, LLC warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (lack of reasonable and necessary maintenance);...
