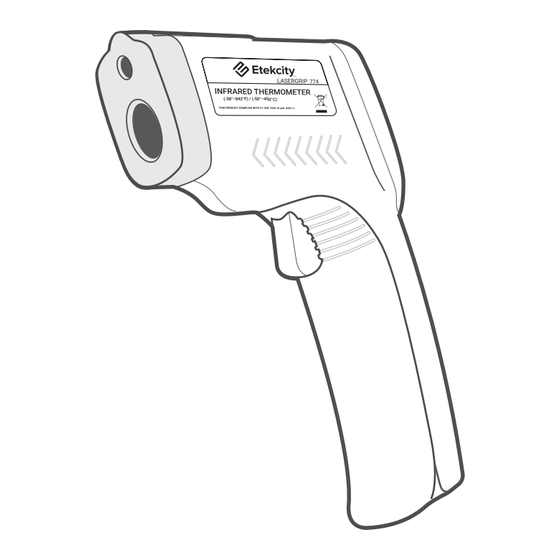

ETEKCITY Lasergrip 774 User Manual
Hide thumbs Also See for Lasergrip 774:

Advertisement

Quick Links

Infrared Thermometer
User Manual
Questions or Concerns?
support@etekcity.com • (855)-686-3835

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lasergrip 774 and is the answer not in the manual?

Questions and answers

Vincent Molloy
April 22, 2025

How to change batteries

Summary of Contents for ETEKCITY Lasergrip 774

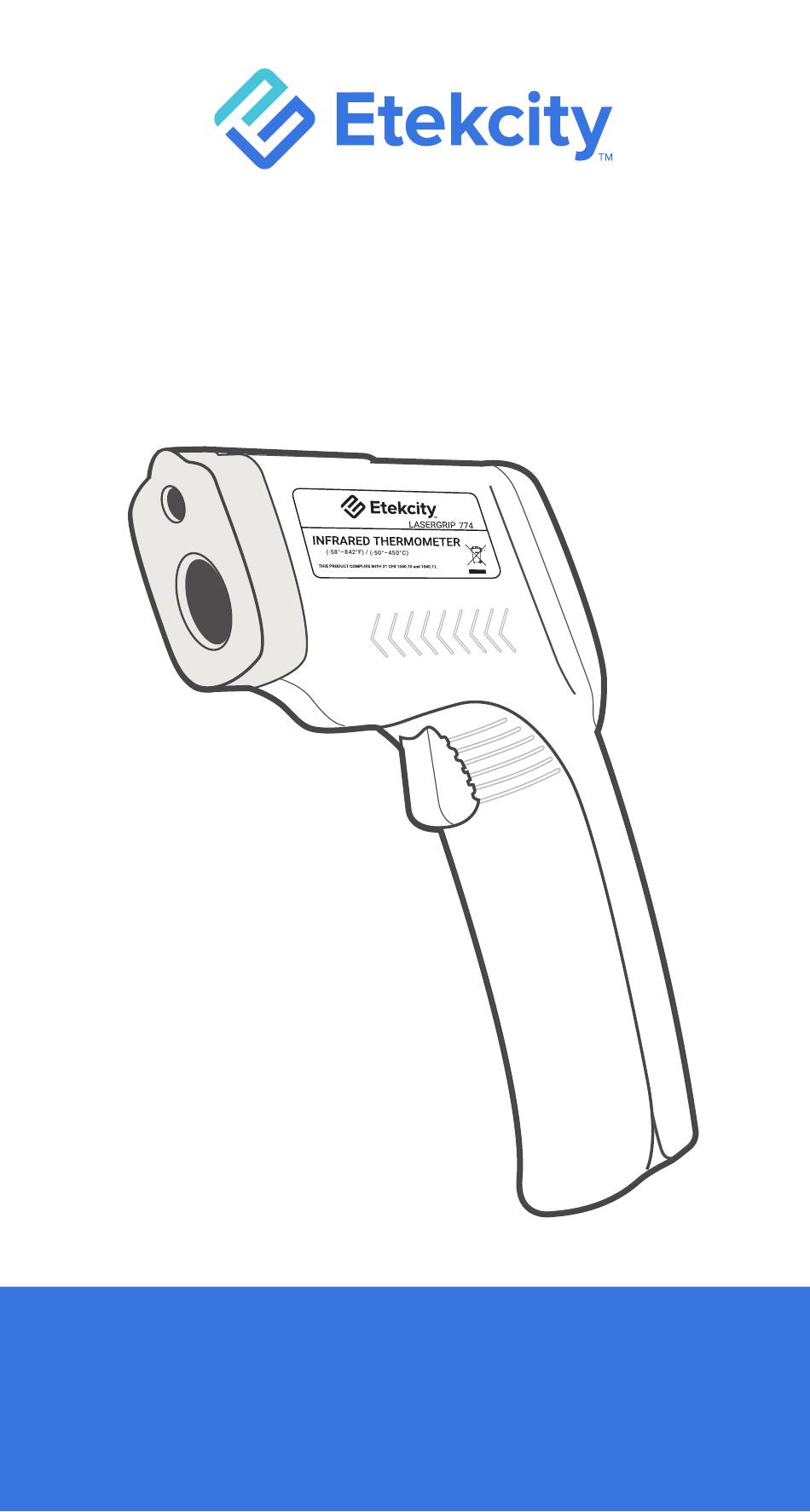

  • Page 1 Infrared Thermometer User Manual Questions or Concerns? support@etekcity.com • (855)-686-3835...
  • Page 2: Important Safety Information

    MANUAL, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. The device certification information is labeled directly on the device. The sticker is located on the LASERGRIP 774 left side of the Lasergrip. INFRARED THERMOMETER (-58°–842°F) / (-50°–450° C) THIS PRODUCT COMPLIES WITH 21 CFR 1040.10 and 1040.11.
  • Page 3: Package Contents

    Package Contents 1 x Infrared Thermometer 2 x 1.5V AAA Batteries (Pre-Installed) 1 x User Manual Specifications Model Lasergrip 774 Measurement Range -58°–842°F / -50°–450°C ± 2% / ± 3.6°F Accuracy ± 2% / ± 2°C Resolution 0.1°F/°C Maximum Output <...
  • Page 4: Function Diagram

    Function Diagram LCD Display Unit (°C/°F)/Down Emissivity/Maximum Temperature Mode Up/Laser Pointer/Backlight Trigger Battery Compartment Laser IR Sensor LCD Display Diagram Battery Level Laser On Backlight On Continue Scanning Temperature Unit Temperature Reading Emissivity/Maximum Temperature Reading Max Temperature Mode Emissivity Mode...
  • Page 5: Battery Installation And Replacement

    Battery Installation & Replacement Two new pre-installed 1.5V AAA batteries come inside your Lasergrip. Follow the steps below to properly set up your Lasergrip. For first-time use, pull the insulation strip out of the battery compartment and discard. [Figure 1.1] NOTE: You do not need to remove the batteries to pull out the insulation strip.
  • Page 6: Operation

    Operation Surface Temperature Measurement NOTE: • The Lasergrip only measures surface temperature, and cannot accurately measure internal temperature. • The Lasergrip cannot measure the temperature of objects behind glass or other transparent materials, and may be inaccurate in areas with steam, dust, or any other particles in the air.
  • Page 7: Unit Conversion

    Unit Conversion To change the temperature unit, press while the Lasergrip is on. Laser Activation To turn the laser on/off, press while the Lasergrip is on. Backlight Display To turn the backlight display on/off, press while the Lasergrip is on. Emissivity/Maximum Temperature Mode To adjust the emissivity value before measurement, press , then...
  • Page 8 Distance-to-Spot Ratio The distance-to-spot ratio (D:S) determines the accuracy of the reading taken by the Lasergrip. The smaller the surface you want to measure, the closer you should hold the Lasergrip to the surface. The Lasergrip’s 12:1 D:S ratio means that when held 12 inches from a surface, the Lasergrip measures a “spot”...
  • Page 9 To take accurate temperature measurements of reflective surfaces with low emissivity, adjust the emissivity value before measurement using the Emissivity Reference Chart. Optionally, place a strip of masking tape over the surface and allow it to adjust to the surface temperature for 30 minutes.
  • Page 10 FCC SDOC SUPPLIER’S DECLARATION OF CONFORMITY Etekcity Corporation hereby declares that this equipment is in compliance with FCC requirements. The declaration of conformity may be consulted in the support section of our website, accessible from www.etekcity.com...
  • Page 11: Warranty Information

    Scan Here to Receive Exclusive News Your product comes with a 2-year warranty starting from the date of purchase. Scan the QR code or visit etekcity.com/warranty 2. Enter your purchase info to receive exclusive news 3. Learn about our quality customer support and...
  • Page 12 Connect with us @Etekcity MF052422AC-M1_Lasergrip_US...
