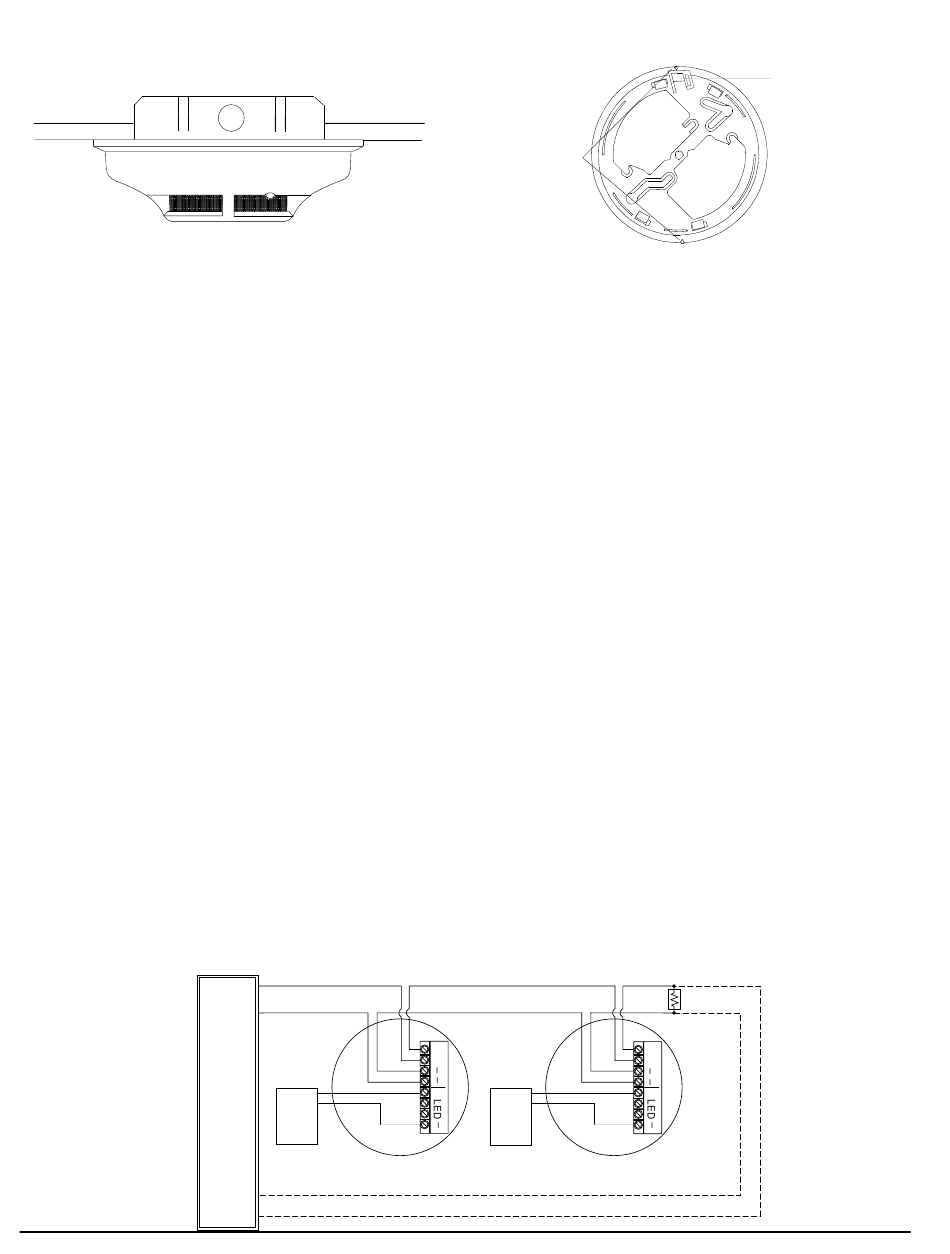

Figure 1. Surface mounting of 1100 detector on
3-1/2-inch and 4-inch octagonal box:
Mounting
Each 1100 detector is supplied with a mounting bracket that
permits the detector to be mounted:
1. To a single gang box, or
2. Directly to a 3-1/2 inch or 4 inch octagonal box, or
3. To a 4 inch square electrical box by using a plaster ring.
Wiring Installation Guidelines
All wiring must be installed in compliance with the Na-
tional Electrical Code, applicable local codes, and any spe-
cial requirements of the local authority having jurisdiction.
Proper wire gauges should be used. The conductors used to
connect smoke detectors to control panels and accessory
devices should be color-coded to reduce the likelihood of
wiring errors. Improper connections can prevent a system
from responding properly in the event of a fire.
The screw terminal block accepts 14 – 22 gauge wire. For
best system performance, all wiring should be installed in
separate grounded conduit. Do not mix fire system wiring
in the same conduit as any other electrical wiring. Twisted
pair may be used to provide additional protection against
electrical interference.
Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Consult the
control panel specifications for the total loop resistance al-
Figure 3. Wiring diagram for the 1100 smoke detector:
D200-55-00
+
INITIATING
LOOP
–
+
UL LISTED
–
COMPATIBLE
CONTROL
PANEL
RA400Z
REMOTE
ANNUNCIATOR
Figure 2. Model 1100 detector mounting bracket:
ALIGNMENT ARROWS
A78-2563-00
lowed for the control panel being used before wiring detec-
tor loops.
Wire connections are made by stripping about 1/4 inch of
insulation from the end of the feed wire, inserting the wire
into the appropriate terminal, and tightening the screw to
secure the wire in place.
System Sensor smoke detectors are marked with a compat-
ibility identifier located as the last digit of a five digit code
stamped on the back of the product. Connect detectors only
to compatible control units as indicated in System Sensor's
compatibility chart which contains a current list of UL
listed compatible control units and detectors. A copy of this
list is available from System Sensor upon request.
Tamper-resist Feature
This detector includes a tamper-resistant capability that
prevents its removal from the bracket without the use of a
tool. To make the detector tamper-resistant, remove the
smaller tab by breaking it at the scribed line on the tamper
resistant tab on the detector mounting bracket (see Figure
2), then install the detector. To remove the detector from
the bracket once it has been made tamper resistant, use a
small screwdriver to depress the tamper-resistant tab, lo-
cated in the slot on the mounting bracket, and turn the de-
tector counterclockwise.
+
+
+
+
–
RA400Z
REMOTE
ANNUNCIATOR
OPTIONAL CLASS A WIRING
2
TAMPER RESISTANT TAB
(CUT OFF SMALL TAB TO
ACTIVATE TAMPER-RESIST
FEATURE)
EOL RESISTOR
SPECIFIED BY
PANEL
MANUFACTURER
+
+
+
A78-2333-02
A78-2566-00
I56-713-02
