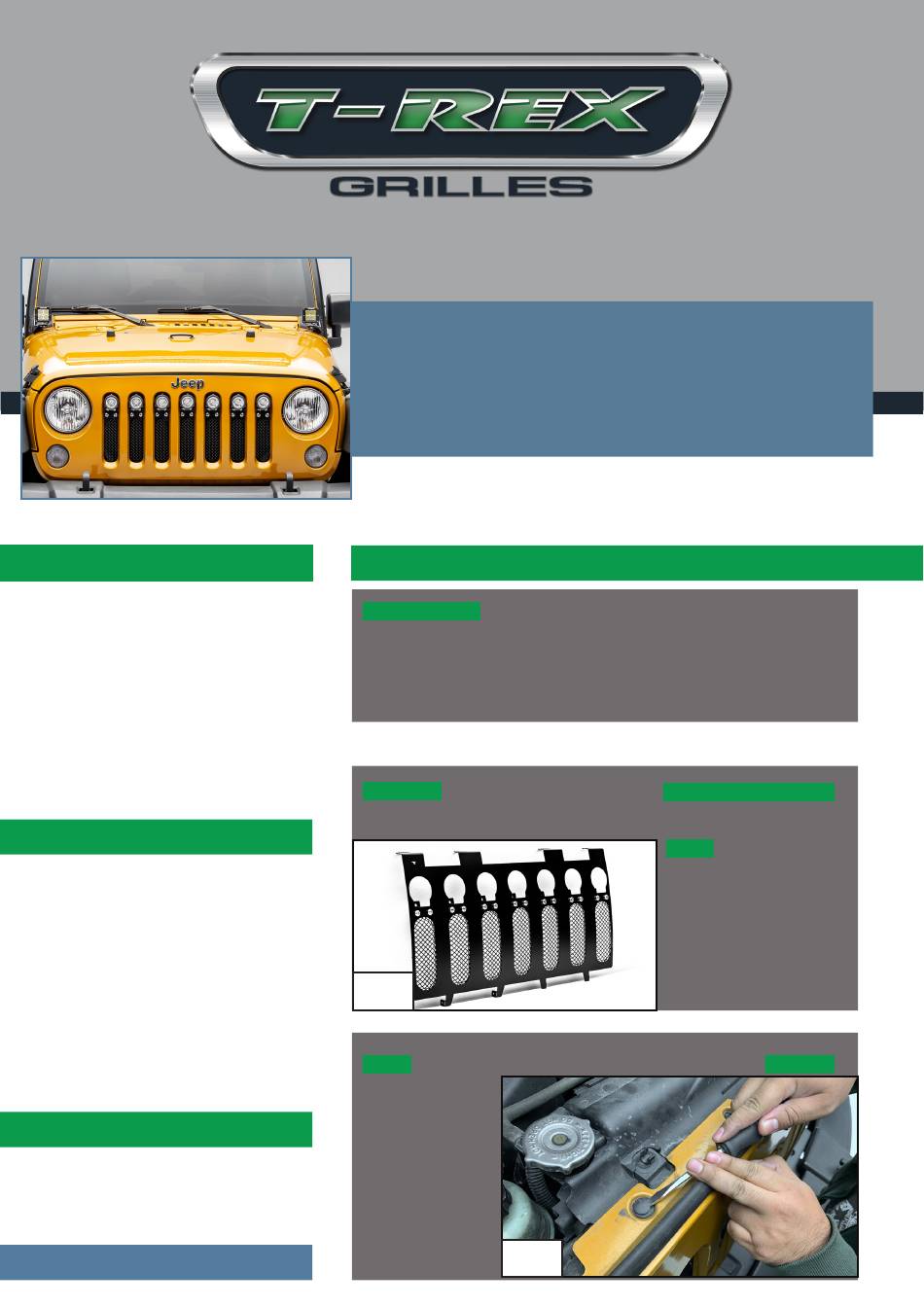

T-Rex TORCH Series Installation Manual

PARTS INCLUDED
(1) - Torch Series Main Grille - Part # 6314841, or
(1) - Stealth Torch Series Main Grille - Part # 6314841-BR, or
(1) - Laser Torch Series Main Grille - Part # 7314841,
AND
(7) - 2' Round ZROADZ 10 Watt LED Lights
(1) - Single Terminal Universal Wiring Harness
(1) - 7 Plug Splitter
HARDWARE INCLUDED
(2) - #10-24 x 5/8" Stainless Steel Hex Head Bolts
(2) - #10 Washers 9/16"
(2) - #10-24 Extruded "U" Nuts
(4) - #8 x 3/4" Stainless Steel Screws
(4) - #8 Flat Nuts
TOOLS REQUIRED
- Prying Tool - Clamps
- Various Socket Set - Tie Wraps
- Various Wrenches - Blanket or Pad
- Ratchet Tool
- Ratchet Extensions
PAGE 1
TORCH SERIES GRILLE
MAIN GRILLE - #6314841 / #6314841-BR / #7314841
2007-2018 Jeep Wrangler JK
Parts are PATENT PENDING. All Rights Reserved - Copyright ©2019 -T-REX TRUCK Products, inc.
BEFORE YOU BEGIN
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE INSTALLATION.
Auto makers offer varied models to each vehicle and occasionally manufacture
more than one body style of the same model. To assure your part is correct; our tech
department can be contacted at tech@trexbillet.com to verify fitment and assist with
technical questions. All other inquires can be directed to info@trexbillet.com. In the
event you do not have internet access please call 1-800-287-5900.
* APPLICATION MODELS VARY. WE RECOMMEND TO VERIFY FITMENT BEFORE BEGINNING INSTALLATION PROCESS.
* IMAGES FEATURED IN THE INSTRUCTION DOCUMENTS MAY NOT ALWAYS EXACTLY MATCH YOUR MODEL OR PART.
START HERE
Turn off engine, chalk tires with stop block, open the hood and disconnect the battery.
FIG 1
STEP 2
2) It is now time to
remove the factory grille
from the vehicle.
Begin grille removal by
prying free all the Push
Pin Retainer Clips.
FIG 2
INSTALLATION GUIDE
LED Light bracket installation
STEP 1
1) Open and unbox the
T-REX package. Sort out all
components and hardware
pack.
SEE FIGURE 2
