Avita NT16 Instruction Manual

Touch free infrared thermometer

Advertisement

Quick Links

TOUCH FREE Infrared Thermometer
NT16
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan, China
China, AViTA(WUJIANG)
Importer
Distributor
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your forehead thermometer

Advertisement

loading
Need help?

Need help?

Do you have a question about the NT16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avita NT16

  • Page 1 TOUCH FREE Infrared Thermometer NT16 RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan, China China, AViTA(WUJIANG) Importer Distributor INSTRUCTION MANUAL Please read this instruction manual carefully...
  • Page 2 Contents Introduction ........................1 Important Information before Use ................3 Product Identification ..................... 5 Description of LCD Display ................... 6 Battery Installation ......................7 Switching Between Fahrenheit or Celsius .............. 8 Switching between 4 Kinds of Measuring Mode ..........8 Tips for Measuring Human Temperature ...............
  • Page 3 Introduction Intended use This Touch Free Infrared Thermometers is intended for home use and the intermittent measurement of human body forehead temperature in people of all ages. Type of Use/ Reuse Multiple patient multiple use Intended User The Patient is an intended operator. Patient selection criteria: Handicapped persons and children are the exception of handicapped persons and children need assistance by another person to use the device.
  • Page 4 9. Low-battery Indicator Indications for battery condition and measuring range. 10.Large LCD Display 11.Economic design and convenience: This is a “TOUCH FREE” medical thermometer that enables temperature readings, designed for sanitary conditions, cleanliness, and convenience. Simply move the thermometer close to the subject's forehead or object at the distance indicated by the device.
  • Page 5 Important Information before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. 1. Do not disassemble, repair, or remodel the thermometer. 2. Be sure to clean the thermometer lens each time after usage. 3.
  • Page 6 CAUTION: Please keep this device away from pets, pests, and children. CAUTION: Please keep away from children and pets, because small parts may be inhaled or swallowed. 17. If any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user is established.

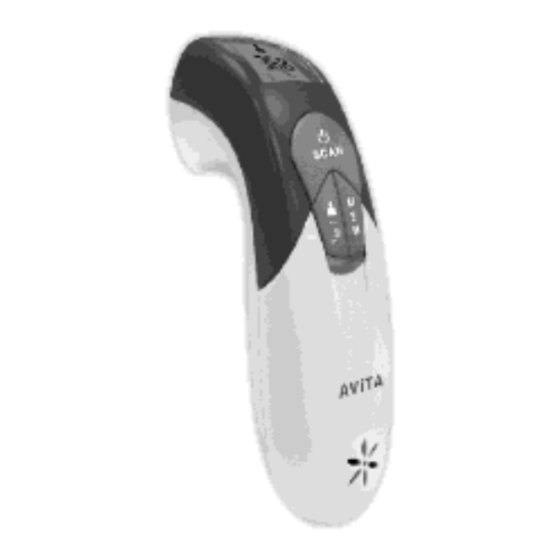

  • Page 7 Product Identification Display LCD Measure Button Human/Object Button Memory Button LED Light Measurement Sensor Distance Detection Sensor Battery Cover...
  • Page 8 Description of LCD Display Measuring sequence in process Night Mode (Mute Mode) Human Mode Object Mode Degree of measurement Celsius Scale Fahrenheit Scale Low battery indicator Frowning Face (temperature is equal or higher than 38°C) Smiling Face (temperature is lower than 38°C) Memory Symbol and sets of records...
  • Page 9 Battery Installation Low battery warning: When the battery power becomes low, the low battery symbol “ ” will appear on the display. The thermometer can still be used during this time, but the batteries should be replaced as soon as possible. If the batteries run out completely, “Lo”...
  • Page 10 Switching Between Fahrenheit or Celsius Your thermometer can display results in either degrees Celsius (°C) or degrees Fahrenheit (°F). With combination of Memory and Mode button are able to change the mode to either °C or °F with a beep sound.
  • Page 11 Tips for Measuring Human Temperature Bear in mind that the thermometer needs to have been in the room in which the measurement is taken for at least 30 minutes before use. NOTE: • Attempting to take temperature readings from sites on the body other than the forehead may produce inaccurate results.
  • Page 12 Movement can impact the measurement. 3. Position the thermometer under 3cm (around 1 inch) from the center of the patient's forehead with the sensor aimed between the eyebrows. 4. Press and release the Measure Button. 5. Slowly move the device toward or farther from the forehead until you have reached the correct distance.
  • Page 13 Measuring Object/Liquid Temperature 1. Press the “Measure Button” to turn the thermometer on. All symbols on the display will momentarily appear. 2. Ensure that the thermometer is in Object Mode; the Object symbol “ ”will be on the display. To alternate between modes press and release the Human/Object Mode Button until you see the desired measurement symbol on the display.
  • Page 14 Memory Function Memory Recall: You can recall up to 30 measurements currently stored in memory to share with your physician or trained healthcare professional. 1. When the device is on, press once briefly on the Memory Button, then pass it again to show the last measurement accompanied by “...
  • Page 15 Cleaning and Disinfecting For home use device disinfection, 75% alcohol (available in the pharmacy) can be used. • Measurement Sensor Clean the measurement sensor with an alcohol swab before and after each measurement. • Thermometer: Use a soft, dry cloth to clean thermometer body. Never use abrasive cleaning agents, thinners or benzene for cleaning.
  • Page 16 Troubleshooting Trouble Probable Case Recommended Action Failed to power Batteries are drained. Replace with a new battery Batteries are not Reinsert batteries correctly aligned with correctly. terminals. The thermometer is Contact your retailer or damaged. Customer Services. Low battery Low battery. Replace with a new symbol appears.
  • Page 17 from extreme room at least for 30 temperatures minutes. environment. The thermometer has Put the thermometer in been stored in a cold steady state room at room or exposed to least for 30 minutes. direct sunlight. Measurement was Switch mode to human taken in surface mode.
  • Page 18 • Shelf Life:3 years • For Customer Service To obtain further service please contact AViTA Corp. for the address of the repair location. Enclose the Proof of Purchase. Include $10.00 USD for the return shipping and handling. Include a letter, with your name, address, phone number, and description of the specific problem.
  • Page 19 EMC Tables NT16 is intended for use in the electromagnetic environment specified below. The customer or the user of NT16 must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare...
  • Page 20 RF communications equipment (transmitters) and the NT16 can be requested from supplier using the contact information provided in this manual. However, it is advisable to keep the equipment at an adequate distance of, at least, 0.5 m from...
  • Page 21 Explanation of Symbols The CE marking with the Registration Number of the Notified Body. This denotes the compliance of Regulation (EU) 2017/745 Medical Device Manufacturer Authorized representative in the European Community Date of manufacture (YYMMDD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX) Keep dry...
  • Page 22 Humidity limitation Atmospheric pressure limitation Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS RoHS Directive 2011/65/EU.
  • Page 23 Model Number Country of Manufacturer Unique Device Identifier Data Element Data Type/Format (01) Device Identifier(GTIN) Numeric (11) Manufacturing Date Numeric: YYMMDD (10) Lot Number Alphanumeric (21) Serial Number Alphanumeric Keep away from sunlight Electronic IFU available at http://www.avita.com.tw NT16P-22424AV 2023-05-30...
