Avita TS42 Instruction Manual

Infrared ear/ forehead thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

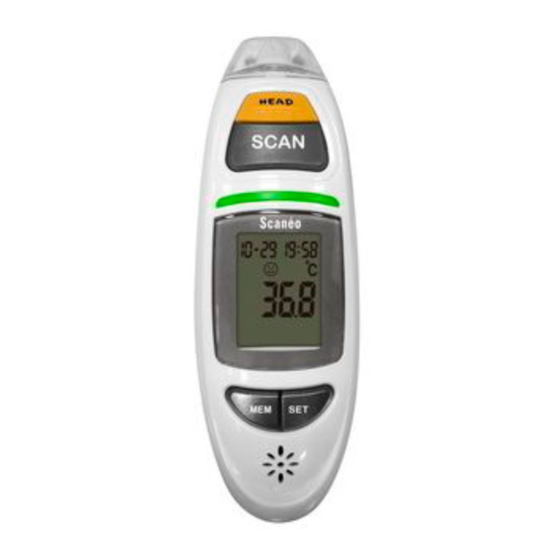

Infrared Ear/ Forehead Thermometer
TS42
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan
Importer
Distributor
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your forehead thermometer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS42 and is the answer not in the manual?

Questions and answers

Related Manuals for Avita TS42

Summary of Contents for Avita TS42

  • Page 1 Infrared Ear/ Forehead Thermometer TS42 RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan Importer Distributor INSTRUCTION MANUAL Please read this instruction manual carefully...

  • Page 2: Table Of Contents

    Contents Introduction ........................1 Important Information before Use ................2 Product Identification ..................... 4 Description of LCD Display ................... 5 Measuring Body Temperature in the Ear ..............6 Measuring Body Temperature on the Forehead ..........7 Measuring Object/ Liquid Temperature ..............8 Memory Function ......................

  • Page 3: Introduction

    Introduction Intended Use This thermometer is intended for home use and the measurement of human body temperature in people of all ages. This thermometer takes temperatures in seconds by measuring the heat generated by the ear canal/ on the forehead. Type of Use/ Reuse Multiple patient multiple use Intended User...

  • Page 4: Important Information Before Use

    Important Information before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. 1. Do not disassemble, repair, or remodel the thermometer. 2. Be sure to clean the thermometer lens each time after usage. 3.
  • Page 5 19. If you would require any assistance during setting up, using or maintaining, please contact the manufacturer. 20. Avoid using the device near an operating cell phone or microwave oven.

  • Page 6: Product Identification

    Product Identification Probe Cover Probe Forehead Scan Mode Ear Scan Mode LED Light LCD Display Setting Button Battery Cover(On the back side) Memory Button Speaker...

  • Page 7: Description Of Lcd Display

    Description of LCD Display Date Forehead Scan Mode Ear Scan Mode Object Mode Memory symbol and sets of records Low Battery Indicator Degree of Measurement Celsius Scale Fahrenheit Scale Measurement in Progress Time...

  • Page 8: Measuring Body Temperature In The Ear

    Measuring Body Temperature in the Ear Remove the front cover. Press the Power/Measure button for 1 second to switch the thermometer on. All screen data will display on screen. Then the measurement mode flashes on screen. If the icon shows forehead mode, please press Power/Measure button again to change to ear mode.

  • Page 9: Measuring Body Temperature On The Forehead

    Measuring Body Temperature on the Forehead The cap should be in position on the probe nozzle. Press the Power/Measure button. All screen data will display on screen. Then the measurement mode flashes on screen. If the icon shows ear mode, please press the Power/Measure button again to change to forehead mode.

  • Page 10: Measuring Object/ Liquid Temperature

    Measuring Object/ Liquid Temperature 1. Press the “Forehead Measure” button or “Power/ Ear Measure” button for 1 second to switch the thermometer on. Following a successful self-test, the device emits two short beeps. 2. Then press the “Memory” and “SET” buttons simultaneously for 3 seconds to switch to the “Object Scan Mode ”.
  • Page 11 Setting °C/°F and Date/Time When the thermometer is used for the first time and each time the batteries are changed, the date and time are displayed in the format 1-1 00:00 during the basic set-up (after the self-test). Set each of the following settings in turn: unit in which the temperature will be displayed, date and time.

  • Page 12: Memory Function

    Memory Function 1. The device can recall up to 30 measurements 2. Press the “Memory” button. The first reading displayed is the latest measurement stored in memory. 3. Continue to press the “Memory” button to view the next previously stored measurement.

  • Page 13: Cleaning And Disinfecting

    Cleaning and Disinfecting For home use device disinfection, 75% Ethanol Isopropyl alcohol (available in the pharmacy) can be used. • Probe and Tip Clean the probe and tip with an75% Ethanol or Isopropyl alcohol before and after each measurement. • Thermometer: Use a soft, dry cloth to clean thermometer body.
  • Page 14 Battery Installation When the batteries get weak, the battery warning symbol appears . It is still possible to measure temperature. The batteries must be replaced. When the battery symbol flashes and “Lo” appears in the display, the batteries must be replaced. If the batteries are too flat, then the thermometer will switch off automatically.

  • Page 15: Error Codes

    Error Codes When a malfunction or incorrect temperature measurement occurs, an error message will appear as described below. LCD Display Cause Solution Operate the The temperature measured thermometer only is higher than between the specified 43°C (109.4°F) temperature ranges. If necessary, clean the sensor tip.

  • Page 16: Technical Specification

    Technical Specification • Range of Measurement : Human Body: 34°C – 43°C (93.2°F – 109.4°F) • Measuring accuracy : Human Body: 34°C – 43°C (93.2°F – 109.4°F) ±0.2°C (0.4°F) Out of range ±0.3°C (0.5°F) • Operating environment : 15°C – 40°C (59°F –...

  • Page 17: Emc Tables

    EMC Tables TS42 is intended for use in the electromagnetic environment specified below. The customer or the user of TS42 must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare...
  • Page 18 requested from supplier using the contact information provided in this manual. However, it is advisable to keep the electromechanical aerosol equipment at an adequate distance of, at least, 0.5 m from mobile phones or other RF communications transmitters to minimise possible interference.

  • Page 19: Explanation Of Symbols

    Explanation of Symbols The CE marking with the Registration Number of the Notified Body. This denotes the compliance of European Medical Device Directive 93/42/EEC Medical Device Manufacturer Authorized representative in the European Community Date of manufacture (YYYY-MM-DD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX)
  • Page 20 Humidity limitation Atmospheric pressure limitation Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS RoHS Directive 2011/65/EU.
  • Page 21 This product meets the basic safety and essential performance requirements indicated in the IP22 conditioning test (protection against solid foreign objects of 12.5mm ∅ and greater and against vertically falling water drops when enclosure tiled up to 15°) The empty, completely flat batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers.
