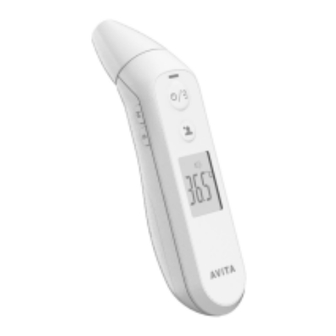

Infrared Ear/ Forehead Thermometer
TS27
EN
RoHS REACH
MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
AViTA Corporation
9F., No. 78, Sec. 1, Kwang Fu Rd.,
San Chung Dist., New Taipei City 24158, Taiwan, China
China, AViTA(WUJIANG)
Importer
Distributor
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your Infrared thermometer
Advertisement
Table of Contents
Related Manuals for Avita TS27
Summary of Contents for Avita TS27
- Page 1 Infrared Ear/ Forehead Thermometer TS27 RoHS REACH MDSS GmbH Schiffgraben 41 30175 Hannover Germany AViTA Corporation 9F., No. 78, Sec. 1, Kwang Fu Rd., San Chung Dist., New Taipei City 24158, Taiwan, China China, AViTA(WUJIANG) Importer Distributor INSTRUCTION MANUAL Please read this instruction manual carefully...
-
Page 2: Table Of Contents
Contents Introduction ........................1 Important Information before Use ................2 Product Identification ..................... 4 Description of LCD Display ................... 5 Battery Installation ......................6 Measuring Body Temperature in the Ear ..............8 Memory Function ......................11 Cleaning and Disinfecting ................... 12 Error Codes ........................ -
Page 3: Introduction
Introduction Intended Use This thermometer is intended for home use and the measurement of human body temperature in people of all ages. This thermometer takes temperatures in seconds by measuring the heat generated by the ear canal/ on the forehead. Type of Use/ Reuse Multiple patient multiple use Intended User... -
Page 4: Important Information Before Use
Important Information before Use When using this product, please be sure to follow all the notes listed below. Any action against these notices may cause injury or affect the accuracy. Do not disassemble, repair, or remodel the thermometer. Be sure to clean the thermometer lens each time after usage. Avoid direct finger contact with the lens. - Page 5 time you question the accuracy of temperature measurements, please contact an authorized distributor for sending calibration services, additional cost may apply for return shipping fee. CAUTION - Avoid potential allergic reactions, please avoid the front of scanner in direct contact to patient's wound. CAUTION - Please keep this device away from pets, pests, and children.
-
Page 6: Product Identification
Product Identification Probe Cover Memory button Setting button LED status indicator (temperature indicator) Power/Ear Measure button Forehead Measure button LCD Display... -
Page 7: Description Of Lcd Display
Description of LCD Display Date/ Time Measurement in progress Temperature Unit (Celcius/ Fahrenheit) Degree of temperature Sound symbol Low battery symbol Memory symbol Object measurement Ear measurement Forehead measurement... -
Page 8: Battery Installation
Battery Installation When the battery is low, the battery warning symbol appears . It is still possible to measure temperature. The batteries shall be replaced shortly. When both the battery symbol flashes and “Lo” appears in the display, the batteries must be replaced immediately. If the batteries are drained, then the thermometer will switch off automatically. - Page 9 Setting °C/°F and Date/Time You can configure the following basic settings for the multi-function thermometer: temperature unit (Celsius / Fahrenheit), date, time and Bluetooth®. (1) To switch on the device press the “Power/Ear Measure” button. (2) Press the “Setting” button (left side of the unit) for 5 seconds. (3) The current set temperature unit appears on the display.
-
Page 10: Measuring Body Temperature In The Ear
Measuring Body Temperature in the Ear Remove the front cover. Press the Power/Measure button to switch the thermometer on. Follows with 2 beep sound, the display will fully flash and a blue backlight will recall the last measurement when turned on. If the icon shows forehead mode, please press Power/Measure button again to change to ear mode. - Page 11 Measuring Body Temperature on the Forehead The cap should be in position on the probe nozzle. Press the Power/Measure button to switch the thermometer on. The display will fully flash and a blue backlight will recall the last measurement when turned on. If the icon shows ear mode, please press the Power/Measure button again to change to forehead mode.
- Page 12 Measuring Object/Liquid Temperature While the thermometer is turned on, long press on both the “Memory” and “Setting” button to switch to the Object/Liquid mode. When switch mode successfully, follows with a short beep sound. Point the sensor tip towards the object or liquid (maintaining a distance of 3 cm), then take one press on “Forehead Measure”...
-
Page 13: Memory Function
Memory Function Memory Recall: You can recall up to 30 measurements currently stored in memory to share with your physician or trained healthcare professional. 1. When the device is on, press once briefly on the “Memory” Button, then pass it again to show the last measurement. 2. -
Page 14: Cleaning And Disinfecting
Cleaning and Disinfecting For home use device disinfection, 75% alcohol (available in the pharmacy) can be used. • Probe and Tip Clean the probe and tip before and after each measurement. • Thermometer: Use a soft, dry cloth to clean thermometer body. Never use abrasive cleaning agents, thinners or benzene for cleaning. -
Page 15: Error Codes
Error Codes When a malfunction or incorrect temperature measurement occurs, an error message will appear as described below. LCD Display Cause Solution Operate the The temperature measured thermometer only is higher than between the specified 43°C (109.4°F) temperature ranges. If necessary, clean the sensor tip. -
Page 16: Trouble Shootings
Trouble Shootings Trouble Probable Case Recommended Action Failed to power Batteries are drained. Replace with a new battery Batteries are not Reinsert batteries correctly aligned with correctly. terminals. The thermometer is Contact your retailer or damaged. Customer Services. Low battery Low battery. - Page 17 Trouble Probable Case Recommended Action room or exposed to least for 30 minutes. direct sunlight. Measurement was Switch to proper mode. taken in incorrect mode. Power switches System design. Push the power button off automatically. again. Batteries are drained. Replace with a new battery The thermometer is Contact your retailer or...
-
Page 18: Technical Specification
• For Customer Service To obtain further service please contact AViTA Corp. for the address of the repair location. Enclose the Proof of Purchase. Include $10.00 USD for the return shipping and handling. Include a letter, with your name, address, phone number, and description of the specific problem. -
Page 19: Emc Tables
EMC Tables TS27 is intended for use in the electromagnetic environment specified below. The customer or the user of TS27 must make sure that it is used in such an environment. Guidance and manufacturer’s declaration - Electromagnetic emissions Professional healthcare... - Page 20 RF communications equipment (transmitters) and the TS27 can be requested from supplier using the contact information provided in this manual. However, it is advisable to keep the electromechanical aerosol equipment at an adequate distance of, at least, 0.5 m from mobile phones...
-
Page 21: Explanation Of Symbols
Explanation of Symbols The CE marking with the Registration Number of the Notified Body. This denotes the compliance of Regulation (EU) 2017/745 Medical Device Manufacturer Authorized representative in the European Community Date of manufacture (YYYY-MM-DD or YYYY-MM) Batch code (YYMMWWWW) Serial number (YYMWWWXXXXX) Keep dry... - Page 22 Humidity limitation Atmospheric pressure limitation Caution Consult the instruction for use Disposal information: Should you wish to dispose of the article, do so in accordance with current regulations. Details are available from your local authority. WEEE 2012/19/EU Directives This product fulfilling the requirements of the RoHS RoHS Directive 2011/65/EU.
- Page 23 You are legally required to dispose of the batteries. Importer Distributor Model Number Country of Manufacturer Unique Device Identifier Keep away from sunlight Electronic IFU available at http://www.avita.com.tw TS27P-22684AV 2022-12-22...
