- Page 1 SINGLE STICK DIGIT L VOLTMETER a n d A C C E S S O R I E S Operating & Instruction Manual 1475 Lakeside Drive • Waukegan, Illinois 60085 U.S.A. • 847.473.4980 f a x 8 4 7 . 4 7 3 . 4 9 8 1 • w e b s i t e : w w w. H D E l e c t r i c C o m p a n y. c o m...
- Page 3 DIGIT L VOLTMETER a n d A C C E S S O R I E S Operating & Instruction Manual IMPORTANT SAFETY INFORMATION ............4 GENERAL DESCRIPTION .
- Page 4 IMPORTANT SAFETY INFORMATION Read and understand these instructions prior to use. These operating instructions are not a substitute for proper training in the use of this equipment. High voltage systems present serious hazards, including the risk of death or serious injury due to arcing, thermal burns and electrocution.

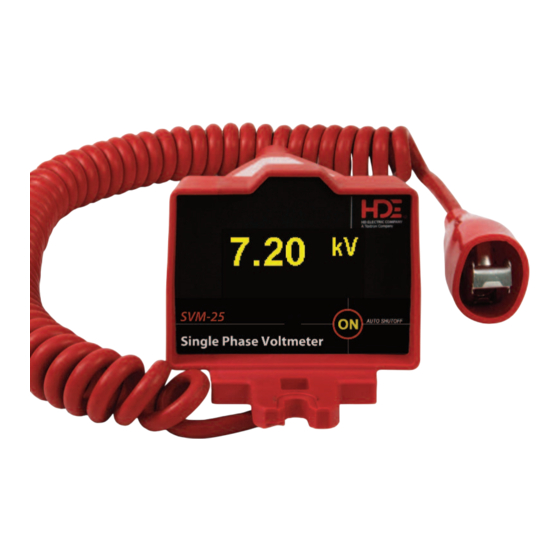

- Page 5 GENERAL DESCRIPTION The HD Electric Single Stick Digital Voltmeter includes one single stick line to ground voltmeter and a ground cord. The high strength molded housing includes epoxy encapsulated high voltage resistors, a ground cord and a digital LED display. The high voltage resistors limit the current through the ground cord to a maximum of less than...
- Page 6 TECHNICAL SPECIFICATIONS MODEL NUMBER SVM-25 ENVIRONMENTAL CONDITIONS • Conditions - Indoor and outdoor use • Altitude - Up to 6,566 ft. (2000M) • Operating Temperature -20°F to +120°F (-29°C to +49°C) • Humidity - 95% to 49°C (non-condensing) • Pollution Degree - PD4 •...
- Page 7 OPERATING INSTRUCTIONS The SVM-25 Digital Voltmeter measures DC and AC RMS voltage from 5V to 25kV line to ground and from 25-1000Hz. Press the ON button to turn it on. The initial zero kV indication will be replaced shortly with the display of hollow zeros as a battery saving measure.
- Page 8 OPERATING INSTRUCTIONS ontinued Pre-Use Inspection WARNING: Before using the instrument be sure to test and inspect the equipment to ensure that it is functioning properly and is in safe, working condition. Failure to do so may cause serious injury or death and may result in erroneous test measurements. Before making any high voltage measurements, test and inspect the voltmeter as follows: 1) Make certain the instrument is clean and dry.
- Page 9 PROBES AND ACCESSORIES WARNING: ALWAYS use probes appropriate to your application. NEVER use overhead probes in underground applications. Failure to use the correct probe can result in arcing or electrical contact and may cause serious injury or death. If you are not trained in the particular operation or are not sure about the appropriate probe for your application DO NOT PROCEED.
- Page 10 CARE AND MAINTENANCE Periodic regular maintenance is required to keep the voltmeter in proper operating condition. Digital models will require periodic battery replacement. Keep the voltmeter clean and dry and always store it in its case. The sticks should be kept clean and free of dirt, contamination and marking.
- Page 11 CALIBRATION AND MAINTENANCE LOG DATE CALIBRATED BY...
- Page 12 LIMITED WARRANTY AND LIMITATION OF LIABILITY This warranty applies to all products sold by HD Electric Company (the "Products"); provided, however, that the term Products does not include any third party products purchased through HD Electric Company, for which no warranties are made (the "Third Party Products"). Third Party Products may be subject to a separate manufacturer's warranty;...
