Summary of Contents for Textron Greenlee CM-1300

  • Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.

  • Page 2: Manuel D'instructions

    Lire attentivement et bien comprendre toutes les instructions et les informations sur la sécurité de ce manuel avant d‘utiliser ou de procéder à l‘entretien de cet outil. 999 4755.2 REV 2 © 2003 Greenlee Textron 3/03...

  • Page 3: Purpose Of This Manual

    Keep this manual available to all personnel. Replacement manuals are available upon request at no charge. All specifications are nominal and may change as design improvements occur. Greenlee Textron shall not be liable for damages resulting from misapplication or misuse of its products. KEEP THIS MANUAL...

  • Page 4: Important Safety Information

    CM-1300 • CM-1350 Important Safety Information SAFETY ALERT SYMBOL This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage. The signal word, defined below, indicates the severity of the hazard. The message after the signal word provides information for preventing or avoiding the hazard.
  • Page 5 Important Safety Information Electric shock hazard: Contact with live circuits can result in severe injury or death. Electric shock and fire hazard: • Do not expose this unit to rain or moisture. • Do not use the unit if it is wet or damaged. •...
  • Page 6 CM-1300 • CM-1350 Important Safety Information • Do not operate with the case or battery cover open. • Before removing the case or battery cover, remove the test leads (or jaw) from the circuit and shut off the unit. Failure to observe these warnings can result in severe injury or death. Do not change the measurement function while the test leads are connected to a component or circuit.

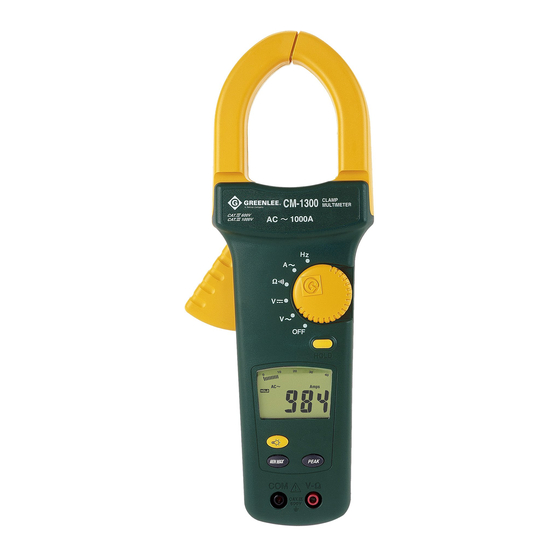

  • Page 7 Identification 1. Jaw 2. Lever 3. Backlight button 4. MIN MAX button 5. Common (COM) input terminal 6. Volts or resistance (V-Ω) input terminal 7. PEAK button 8. Display 9. HOLD button 10. Selector Display Icons Low battery indicator 12. REL Not used 13.

  • Page 8: Using The Features

    CM-1300 • CM-1350 Using the Features • Press to backlight the display. Press again to turn off. The backlight automatically shuts off after approximately 1 minute. • HOLD Button Press momentarily to hold the present value on the display. Press again to return to normal mode.
  • Page 9 1.11, and displays the result. This method is accurate if the input signal is a pure sine wave. The Greenlee CM-1300 is an average-responding meter. The true RMS-reading method uses internal circuitry to read the true RMS value. This method is accurate, within the specified crest factor limitations, whether the input signal is a pure sine wave, square wave, triangle wave, half wave, or signal with harmonics.

  • Page 10: Operation

    CM-1300 • CM-1350 Operation Electric shock hazard: Contact with live circuits can result in severe injury or death. Set the selector according to the Settings Table. Refer to “Typical Measurements” for specific measurement instructions. Test the unit on a known functioning circuit or component. •...

  • Page 11: Typical Measurements

    Typical Measurements Voltage Measurement Current Measurement— Clamp Around Wire Notes: • Clamp the jaw around one conductor only. • Close the jaw completely to ensure accurate measurement. • Center the wire in the jaw for highest accuracy.
  • Page 12 CM-1300 • CM-1350 Typical Measurements Current Measurement— Clamp Around Line Splitter Notes: • The Greenlee 93-30 Line Splitter is divided. One section renders amps; the other renders amps multiplied by 10. • Close the jaw completely to ensure accurate measurement. •...
  • Page 13 Typical Measurements Continuity Check...
  • Page 14 CM-1300 • CM-1350 Accuracy Refer to “Specifications” for operating conditions and temperature coefficient. Accuracy is specified as follows: ± (a percentage of the reading + a fixed amount) at 18 °C to 28 °C (64 °F to 82 °F), 0% to 80% relative humidity AC Current Range Input Value...
  • Page 15 Accuracy (cont’d) DC Voltage Range Accuracy Input Impedance ± (0.7% + 0.2 V) 400.0 V 1 MΩ ± (0.7% + 2 V) 1000 V Resistance Range Accuracy 400.0 Ω ± (1.0% + 0.3 Ω) 1000 V overload protection Frequency (Current Mode) Range Accuracy Minimum Input...

  • Page 16: Specifications

    CM-1300 • CM-1350 Specifications Display: 3-3/4–digit LCD (4000 maximum count) and 42-segment bar graph Sampling Rate: Numeric Display: 1.5 per second Bar Graph Display: 13 per second Jaw Opening: 47 mm (1.85") Measurement Category: Category IV, 600 V; Category III, 1000 V Temperature Coefficient: 0.2 x (Accuracy) per °C above 28 °C or below 18 °C Operating Conditions: Temperature:...

  • Page 17: Measurement Categories

    Measurement Categories These definitions were derived from the international safety standard for insulation coordination as it applies to measurement, control, and laboratory equipment. These measurement categories are explained in more detail by the International Electrotechnical Commission; refer to either of their publications: IEC 61010-1 or IEC 60664.

  • Page 18: Maintenance

    CM-1300 • CM-1350 Maintenance • Do not attempt to repair this unit. It contains no user-serviceable parts. • Do not expose the unit to extremes in temperature or high humidity. Refer to “Specifications.” Failure to observe these precautions can result in injury and can damage the unit. Battery Replacement Before removing the battery cover, remove the test leads (or jaw) from the circuit and shut off the unit.

  • Page 20: Acerca De La Seguridad

    Puede obtener copias adicionales de manera gratuita, previa solicitud. Todas las especificaciones son nominales y pueden cambiar conforme tengan lugar mejoras de diseño. Greenlee Textron no se hace responsable de los daños que puedan surgir de la mala aplicación o mal uso de sus productos.

  • Page 21: Importante Información Sobre Seguridad

    Importante Información sobre Seguridad SÍMBOLO DE ALERTA SOBRE SEGURIDAD Este símbolo se utiliza para indicar un riesgo o práctica poco segura que podría ocasionar lesiones o daños materiales. Cada uno de los siguientes términos denota la gravedad del riesgo. El mensaje que sigue a dichos términos le indica cómo puede evitar o prevenir ese riesgo.
  • Page 22 CM-1300 • CM-1350 Importante Información sobre Seguridad Peligro de electrocución: El contacto con circuitos activados puede ocasionar graves lesiones o incluso la muerte. Peligro de electrocución e incendio: • No exponga esta unidad ni a la lluvia ni a la humedad. •...
  • Page 23 Importante Información sobre Seguridad • No haga funcionar esta unidad con la caja o la tapa del compartimiento de las pilas abierta. • Antes de retirar la caja o la tapa del compartimiento de las pilas, retire del circuito los cables de prueba (o la pinza), y apague la unidad.
  • Page 24 CM-1300 • CM-1350 Identificación 1. Pinza 2. Palanca 3. Botón de luz de fondo 4. Botón MIN MAX 5. Terminal de entrada (COM) común 6. Terminal de entrada (V-Ω) de voltios o resistencia 7. Botón PEAK 8. Pantalla 9. Botón HOLD 10.

  • Page 25: Cómo Utilizar Las Distintas Funciones

    Cómo utilizar las distintas funciones • Oprima para encender la luz de fondo de la pantalla. Oprima nuevamente para apagarla. La luz de fondo se apagará de forma automática después de aproximadamente 1 minuto. • Botón “HOLD” (Retención de datos en pantalla) Oprima momentáneamente para retener en pantalla el valor que aparece en ese momento.
  • Page 26 CM-1300 • CM-1350 Medición de corriente alterna Las mediciones de corriente alterna generalmente se muestran como valores eficaces (RMS o root mean squared). El valor eficaz equivale al valor de una forma de onda de CC, la cual brinda la misma potencia que si reemplazara la forma de onda variable con el tiempo. Existen dos métodos de medición de corriente alterna: calibrados para responder al valor eficaz medio y a una lectura de valores eficaces reales.
