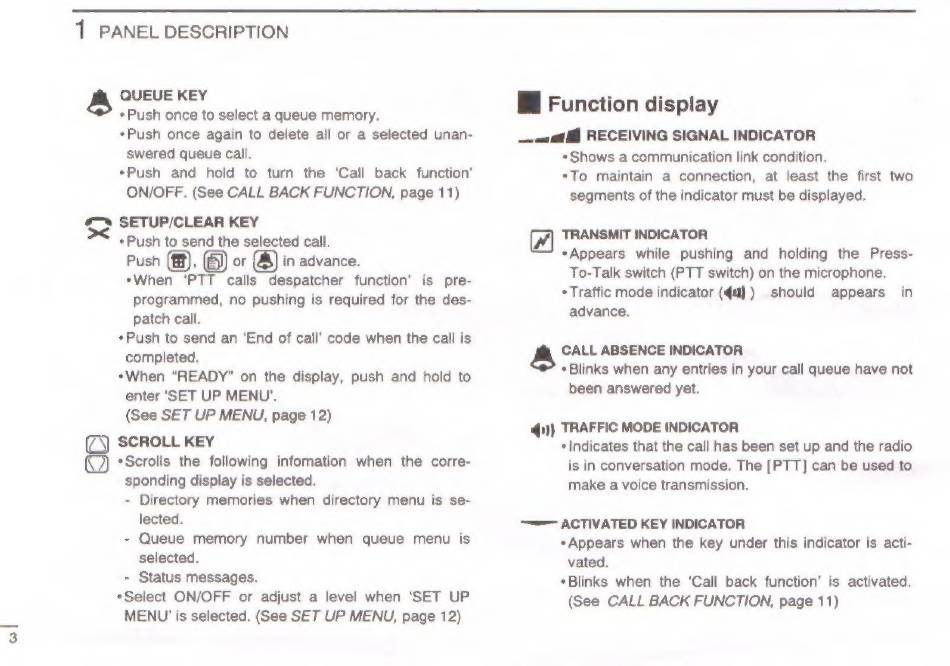

1 PANEL DESCRIPTION
X)
(a)
QUEUE KEY
+Push once to select a queue memory.
*Push once again to delete all or a selected unan-
swered queue call.
*Push and hold to turn the 'Call back function'
ON/OFF. (See CALL BACK FUNCTION, page 11)
SETUP/CLEAR KEY
*Push to send the selected call.
Push (&), or in advance.
*When 'PTT calls despatcher function' is pre-
programmed, no pushing is required for the des-
patch call.
*Push to send an 'End of call' code when the call is
completed.
*When "READY" on the display, push and hold to
enter 'SET UP MENU'.
(See SET UP MENU, page 12)
SCROLL KEY
*Scrolls the following infomation when the corre-
sponding display is selected.
- Directory memories when directory menu is se-
lected.
- Queue memory number when queue menu is
selected.
- Status messages.
*Select ON/OFF or adjust a level when 'SET UP
MENU' is selected. (See SET UP MENU, page 12)
Wi Function display
—«aff§ RECEIVING SIGNAL INDICATOR
*Shows a communication link condition.
*To maintain a connection, at least the first two
segments of the indicator must be displayed.
TRANSMIT INDICATOR
*Appears while pushing and holding the Press-
To-Talk switch (PTT switch) on the microphone.
* Traffic mode indicator (4a) ) should appears in
advance.
CALL ABSENCE INDICATOR
*Blinks when any entries in your call queue have not
been answered yet.
4) TRAFFIC MODE INDICATOR
+Indicates that the call has been set up and the radio
is in conversation mode. The [PTT] can be used to
make a voice transmission.
—— ACTIVATED KEY INDICATOR
*Appears when the key under this indicator is acti-
vated.
*Blinks when the 'Call back function' is activated.
(See CALL BACK FUNCTION, page 11)
