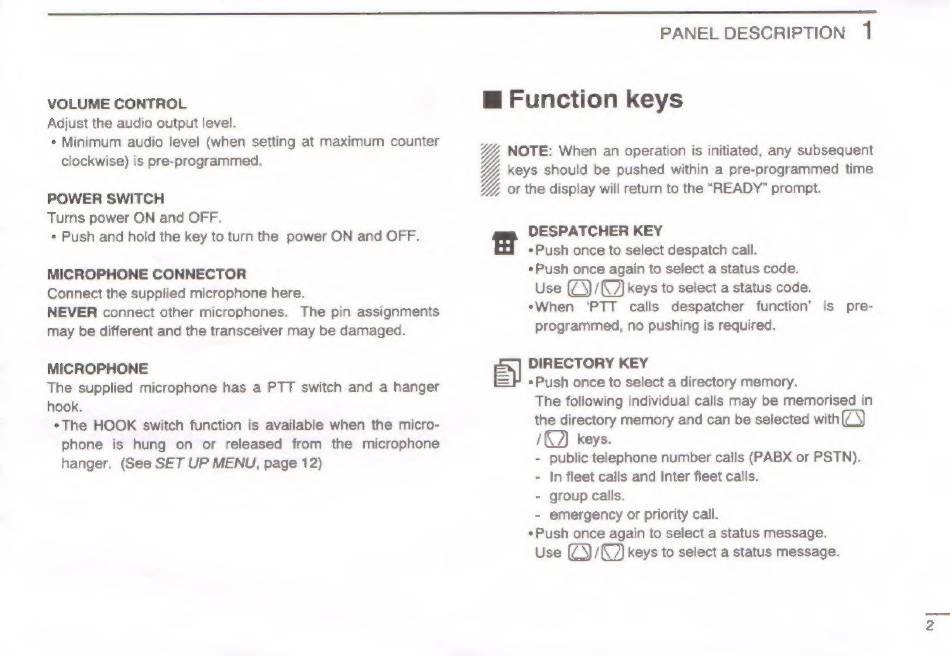

Icom IC-F1500 Instruction Manual page 5

VOLUME CONTROL
Adjust the audio output level.
* Minimum audio level (when setting at maximum counter
clockwise) is pre-programmed.
POWER SWITCH
Turns power ON and OFF.
+ Push and hold the key to turn the power ON and OFF.
MICROPHONE CONNECTOR
Connect the supplied microphone here.
NEVER connect other microphones. The pin assignments
may be different and the transceiver may be damaged.
MICROPHONE
The supplied microphone has a PTT switch and a hanger
hook.
*The HOOK switch function is available when the micro-
phone is hung on or released from the microphone
hanger. (See SET UP MENU, page 12)
PANEL DESCRIPTION 1
@ Function keys
NOTE: When an operation is initiated, any subsequent
keys should be pushed within a pre-programmed time
Yj, or the display will return to the "READY" prompt.
WW
DESPATCHER KEY
f3) «Push once to select despatch call.
*Push once again to select a status code.
Use ©) /() keys to select a status code.
«When 'PTT calls despatcher function' is pre-
programmed, no pushing is required.
DIRECTORY KEY
*Push once to select a directory memory.
The following individual calls may be memorised in
the directory memory and can be selected with@
/Q keys.
- public telephone number calls (PABX or PSTN).
- In fleet calls and Inter fleet calls.
- group calls,
- emergency or priority call.
«Push once again to select a status message.
Use @)/M keys to select a status message.
|
