ADTRAN SDG-8733A Quick Start Manual

ADTRAN SDG-8733A Quick Start Manual

Service delivery gateway wi-fi 7 10g mesh ap

Advertisement

Quick Links

Description
The SDG-8733A is a carrier-class, tri-band, Wi-Fi 7 10G Mesh AP designed to deliver top-end Wi-Fi 7 performance, multi-gigabit throughput,
and advanced service delivery capabilities.

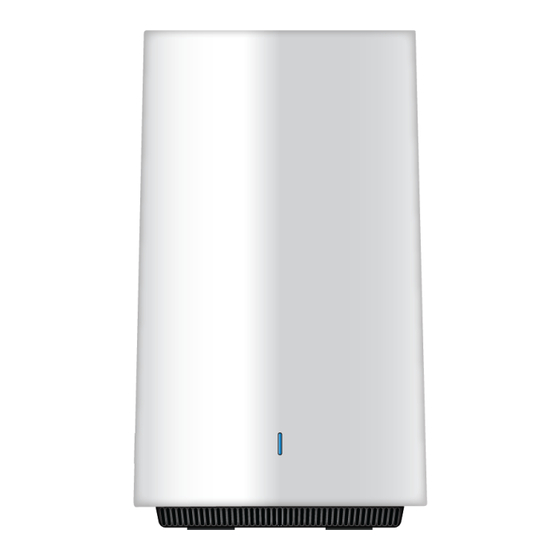

Figure 1:  SDG-8733A Wi-Fi 7 10G Mesh AP
The SDG-8733A provides these interfaces:

1x 10 Gigabit Ethernet WAN Interface (RJ-45)
l

1x 2.5 Gigabit Ethernet LAN interface (RJ-45)
l
WARNING
A warning indicates a hazard
that, if not avoided, could result in
death, injury, or serious property
damage.
Service Delivery Gateway
SDG-8733A
Wi-Fi 7 10G Mesh AP
CAUTION
A caution indicates a hazard
that, if not avoided, could result in
service interruption, damage to
the equipment, or minor property
damage.
December 2024
Doc Number: 6SDG8733A-13A

NOTE
A note highlights additional, but
important, information or
features.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDG-8733A and is the answer not in the manual?

Questions and answers

Summary of Contents for ADTRAN SDG-8733A

  • Page 1 Doc Number: 6SDG8733A-13A   Description The SDG-8733A is a carrier-class, tri-band, Wi-Fi 7 10G Mesh AP designed to deliver top-end Wi-Fi 7 performance, multi-gigabit throughput, and advanced service delivery capabilities. Figure 1:  SDG-8733A Wi-Fi 7 10G Mesh AP The SDG-8733A provides these interfaces:  ...
  • Page 2   Installation After unpacking the unit, inspect it for damage. If damage is noted, file a claim with the carrier and then contact Adtran. For more information, see Warranty. Installation Guidelines Shipment Contents Step 1: Placing the SDG-8733A Step 2: Connecting the Power Step 3: Subscriber Connections...
  • Page 3  2. Connect the power adapter to a standard 100 to 240 VAC outlet.  3. Toggle the power switch to the On position.  4. Verify that the Power LED is green, indicating that the SDG-8733A is receiving power. If the LED is red, the unit is receiving an incorrect amount of power.
  • Page 4  3. Open a web browser and enter the following: http://router or http://setup. A sign-in page should appear. If you are unable to connect to the SDG-8733A using either of these shortcuts, you can also enter the IP address of the unit. The default IP address is 192.168.1.1.
  • Page 5 LEDs When the SDG-8733A first powers up, it performs a self-test. Once the power on self-test (POST) is complete, the LEDs display the status of the device. Multifunction Status LED for SmartOS The Multifunction Status LED on the front of the unit indicates the status of the device. The following table defines this LED's different states while running SmartOS.
  • Page 6 Electrical Power is provided by a region specific AC to 15V DC power adapter (USB-C) that is included with the SDG-8733A. The nominal output is 15V DC ±5% with a maximum current rating of 3.0 Amps. Regional plug adapter specifications are as follows: NOTE It is strongly suggested that the power supply (a 5.9-foot (1.8 m) power cord) included with the SDG-8733A be connected to a...
  • Page 7 Adtran offers training courses for our products, including customized training and courses taught at our facilities or at customer sites. For inquiries, see https://adtran.com/training. Warranty Adtran will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found online at https://www.adtran.com/warranty. Safety and Regulatory Refer to the Safety and Regulatory Compliance Notice for this product (17600079) for detailed safety and regulatory information.
  • Page 8   This equipment contains no parts that can be serviced by the user.   This product meets EU RoHS Directive. Refer to www.adtran.com/environmental for further information on RoHS/WEEE.   This product is NRTL Safety Listed to the applicable UL/CSA Standards.
  • Page 9 Canadian Department of Communications Radio Interference Regulations This digital apparatus (Wi-Fi 7 Mesh AP Model SDG-8733A) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 10 OR DECREASE IN RELIABILITY HANDLING PRECAUTIONS REQUIRED 1.800.827.0807     Brand names and product names included in this document are trademarks, registered trademarks, or trade *6SDG8733A-13A* names of their respective holders. Copyright © 2024 Adtran, Inc. All Rights Reserved. SDG-8733A Quick Start Guide...
