Overview
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this
equipment.
The SDG-8610 is a carrier-class, dual-band, WiFi 6 Gigabit Router designed to deliver top-end WiFi 6 performance, gigabit wired
and wireless throughput, and advanced service delivery capabilities.

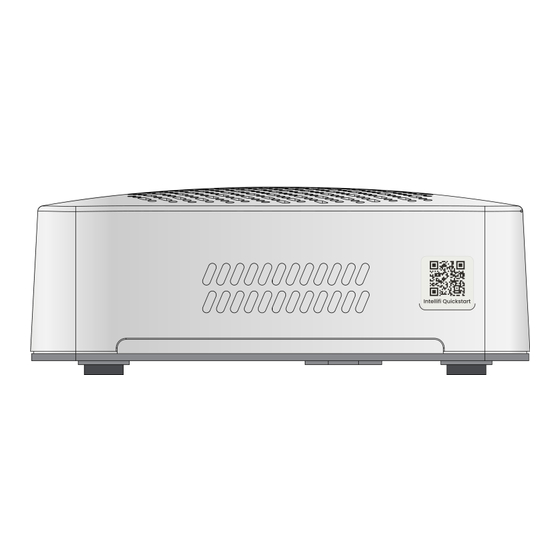

Figure 1: SDG-8610 WiFi 6 Gigabit Router
WARNING!
A warning indicates a hazard that, if not avoided, could result in death, injury, or serious property damage.
CAUTION!
A caution indicates a hazard that, if not avoided, could result in service interruption, damage to the
equipment, or minor property damage.
NOTE
A note highlights additional, but important, information or features.
SDG-8610 -Quick Start Guide - Issue: A
SDG-8610 Service Delivery Gateway
WiFi 6 Gigabit Router
March 2024
6SDG8610-13A
P/N: 17600078F1S, 17600078F2S, 17600078F3S, 17600078F4S
1
Advertisement
Table of Contents
Related Manuals for ADTRAN SDG-8610
Summary of Contents for ADTRAN SDG-8610
- Page 1 Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment. The SDG-8610 is a carrier-class, dual-band, WiFi 6 Gigabit Router designed to deliver top-end WiFi 6 performance, gigabit wired and wireless throughput, and advanced service delivery capabilities.
-
Page 2: Package Contents
No special tools are required for installing the SDG-8610. Mounting Options There are two options to install the SDG-8610: desktop and wall mount. Be sure to route and secure the cables in a manner that will prevent damage. These options are described below. ... -
Page 3: Supplying Power To The Device
Ensure that the SDG-8610 is not located in direct sunlight or next to any thermal obstructions. Wall Mount Installation The SDG-8610 can be mounted on a wall. Two #6x1 in. (3.5x25 mm) screws with plastic anchors are required (not supplied). Install mounting hardware per Manufacturer’s directions. The distance between mounting screws is 3 5/32 in. -
Page 4: Understanding The Status Leds
Resetting the SDG A reset button is available if the SDG-8610 needs to be rebooted or restored to factory defaults. To reboot the SDG-8610, press the Reset button on the back panel of the device for less than 5 seconds. To reset the device to factory defaults, press the Reset button for 5 seconds or more. -
Page 5: Product Specifications
3. Open a web browser and enter the following: http://router or http://setup. A sign-in page should appear. If you are unable to connect to the SDG-8610 using either of these shortcuts, you can also enter the IP address of the unit. The default IP address is 192.168.1.1. -
Page 6: Safety And Regulatory
This equipment contains no parts that can be serviced by the user. This product meets EU RoHS Directive. Refer to www.adtran.com/environmental for further information on RoHS/WEEE. This product is NRTL Safety Listed to the applicable UL/CSA Standards. -
Page 7: Can Ices-3(B)/Nmb-3(B)
Canadian Department of Communications Radio Interference Regulations This digital apparatus (Wi-Fi 6 Gigabit Router Model SDG-8610) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. - Page 8 Adtran Industry Canada ATTENTION! Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
- Page 9 For Adtran training inquiries, visit: https://adtran.com/training http://adtran.com/sdg-info Adtran Customer Care: Warranty: Adtran will replace or repair this product within the warranty period if it does not meet its From within the U.S. published specifications or fails while in service. 1.888.423.8726 Warranty information can be found online at From outside the U.S.
