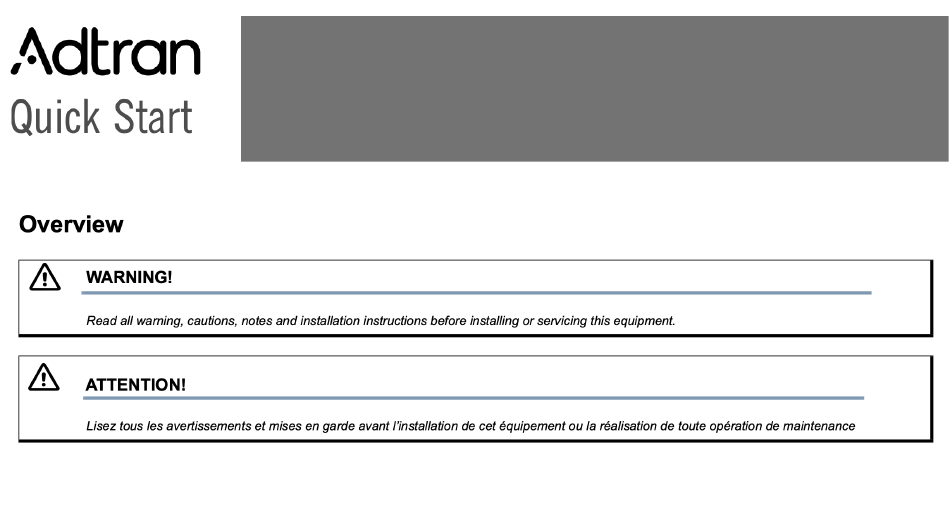

- Page 1 ADTRAN SDG-8632 series Service Delivery Gateway Wi-Fi 6E Mesh AP P/N: 17600073...
-
Page 2: Product Specifications

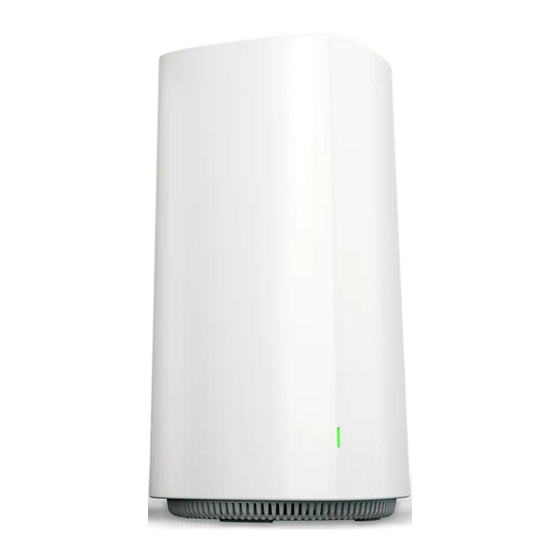

The ADTRAN® SDG-8632 series is a Wi-Fi 6E Mesh AP, built to deliver top-end Wi-Fi 6E Mesh AP performance and advanced service delivery capabilities. This quick start describes how to install ADTRAN’s Service Delivery Gateway. The SDG-8632 series is an indoor WiFi 6E Mesh. -
Page 3: Package Contents
Installing the SDG-8632 Gateway The following are guidelines for basic installation of the gateway. Package Contents ■ ADTRAN’s WiFi 6E Mech AP ■ 15VDC/3A USB type C power adapter ■ CAT.5E Ethernet cable Prior to Installation Before installing the equipment, inspect the gateway. If damage has occurred during shipping, file a claim with the carrier,... -
Page 4: Connecting The Gateway
Connecting the Gateway Figure 2 illustrates the installation (connection) options for the gateway. The following subscriber connections are available on the rear of the device: ■ 1x 2.5Gigabit Ethernet port (RJ-45 Connector) – LAN port ■ 1x 2.5Gigabit Ethernet port (RJ-45 Connector) - WAN port ■... -
Page 5: Connecting The Power Supply
Connecting the Power Supply 1. Connect the end of the power adapter to the Power port on the bottom of the gateway. 2. Plug other end of the power adapter into the wall outlet. 3. Confirm that the power is connected properly. The Power LED should be lit on the gateway. Resetting the Gateway A reset button is available if the device needs to be rebooted. - Page 6 Set up Connect to http://192.168.1.1 from web browser, go through the instructions to complete the router mode setup. 1. Click on “Set up a new IntellifiⓇ device”. 2. Simply input “12345678” as the password, re-enter the “12345678” again, click on “Set password”. 3.
- Page 7 4. Press Next>, then press Router. 5. Type “samplewifi” as SSID, and type “12345678” as password, then press “Continue”.
- Page 8 6. Press “Yes, set up Guest WiFi, Then press “Finish” to complete setup.
-
Page 9: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 10: Radiation Exposure Statement
IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 32 cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA Operation of this device is restricted to indoor use only. -
Page 11: Industry Canada Statement
Industry Canada statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference (2) This device must accept any interference, including interference that may cause undesired operation of the device L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. -
Page 12: Dé Claration D'exposition Aux Radiations
Avertissement: (i) les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont ré servé s uniquement pour une utilisation à l’intérieur afin de ré duire les risques de brouillage pré judiciable aux systè mes de satellites mobiles utilisant les mê mes canaux; (ii) pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis pour les dispositifs utilisant les bandes de 5 250 à... - Page 13 Operation shall be limited to indoor use only. Operation on oil platforms, automobiles, trains, maritime vessels and aircraft shall be prohibited except for on large aircraft flying above 3,048 m (10,000 ft). Devices shall not be used for control of or communications with unmanned aircraft systems. leur utilisation doit ê...
- Page 14 EU & UKCA Declaration of Conformity Hereby, Adtran Inc declares that the radio equipment type [SDG-8632] is in compliance with Directive 2014/53/EU. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of...
- Page 15 Wi-Fi Freq. range Power 2400MHz ~ 2483.5MHz 20 dBm 5150MHz ~ 5250MHz 23 dBm 5250MHz ~ 5350MHz 23 dBm 5470MHz ~ 5725MHz 29dBm (RED); 28dBm(UKCA) 5725 MHz ~5850MHz 23 dBm 5925MHz ~ 6425MHz 23 dBm Freq. range Power 2400MHz ~ 2483.5MHz 1 dBm SW version: 12.2.4.101 The minimum distance between the user and/or any bystander and the radiating structure of the transmitter is 20cm.
- Page 16 5150 ~ 5350 MHz is limited to indoor used in below countries. UK(NI)
