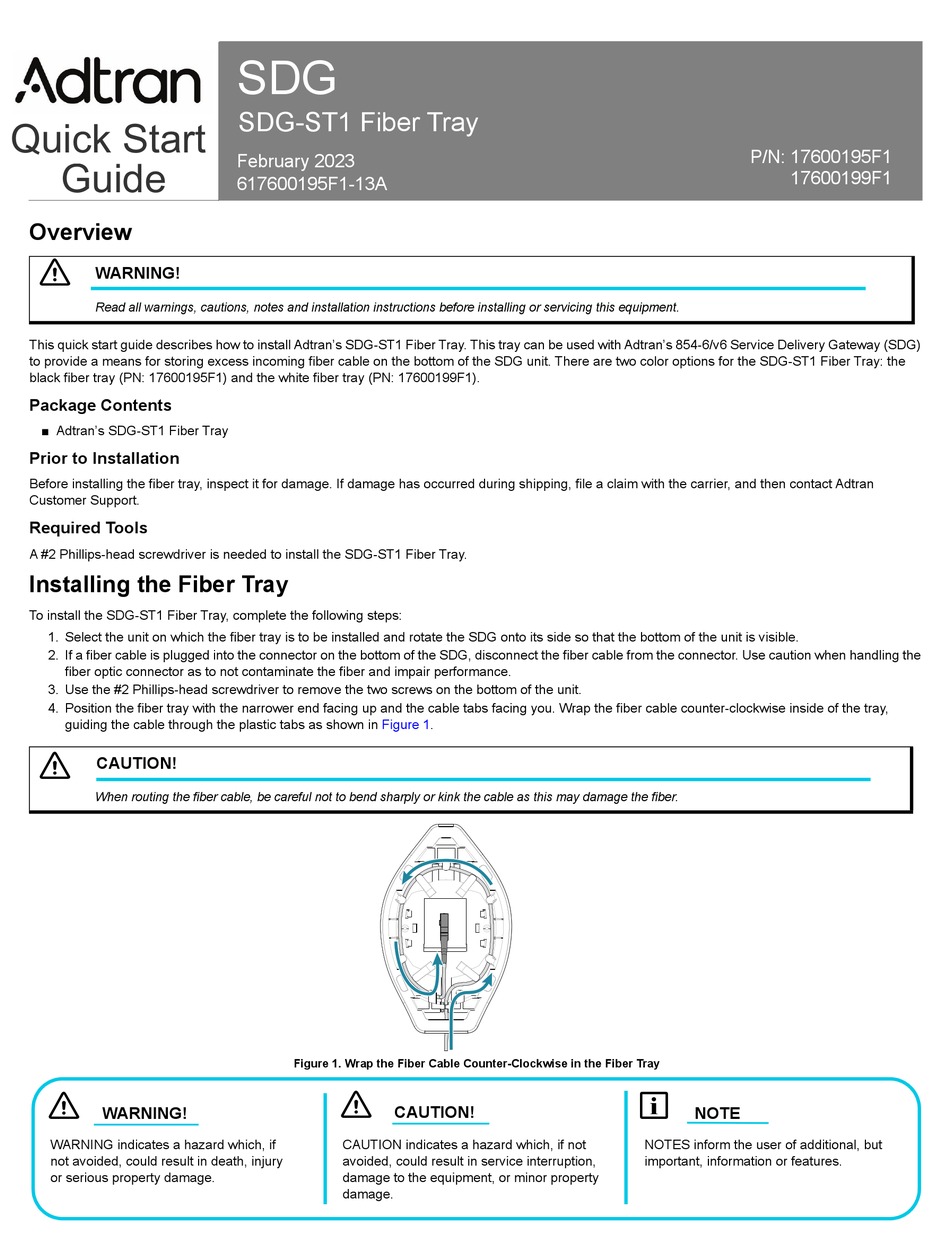

This quick start guide describes how to install Adtran's SDG-ST1 Fiber Tray. This tray can be used with Adtran's 854-6/v6 Service Delivery Gateway (SDG)
to provide a means for storing excess incoming fiber cable on the bottom of the SDG unit. There are two color options for the SDG-ST1 Fiber Tray: the
black fiber tray (PN: 17600195F1) and the white fiber tray (PN: 17600199F1).

Package Contents

■ Adtran's SDG-ST1 Fiber Tray

Prior to Installation

Before installing the fiber tray, inspect it for damage. If damage has occurred during shipping, file a claim with the carrier, and then contact Adtran
Customer Support.

Required Tools

A #2 Phillips-head screwdriver is needed to install the SDG-ST1 Fiber Tray.

Installing the Fiber Tray

To install the SDG-ST1 Fiber Tray, complete the following steps:
1. Select the unit on which the fiber tray is to be installed and rotate the SDG onto its side so that the bottom of the unit is visible.
2. If a fiber cable is plugged into the connector on the bottom of the SDG, disconnect the fiber cable from the connector. Use caution when handling the
fiber optic connector as to not contaminate the fiber and impair performance.
3. Use the #2 Phillips-head screwdriver to remove the two screws on the bottom of the unit.
4. Position the fiber tray with the narrower end facing up and the cable tabs facing you. Wrap the fiber cable counter-clockwise inside of the tray,
guiding the cable through the plastic tabs as shown in
f
CAUTION!
When routing the fiber cable, be careful not to bend sharply or kink the cable as this may damage the fiber.
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
SDG
SDG-ST1 Fiber Tray
February 2023
617600195F1-13A
Figure
Figure 1. Wrap the Fiber Cable Counter-Clockwise in the Fiber Tray
f
CAUTION!
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
1.
P/N: 17600195F1
17600199F1
g
NOTE
NOTES inform the user of additional, but
important, information or features.
