Description
The SDG-8733 and SDG-8734 are carrier-class, tri-band, Wi-Fi 7 10 GbE routers designed to deliver top-end Wi-Fi 7 performance, true 10
gigabit throughput, and advanced service delivery capabilities.

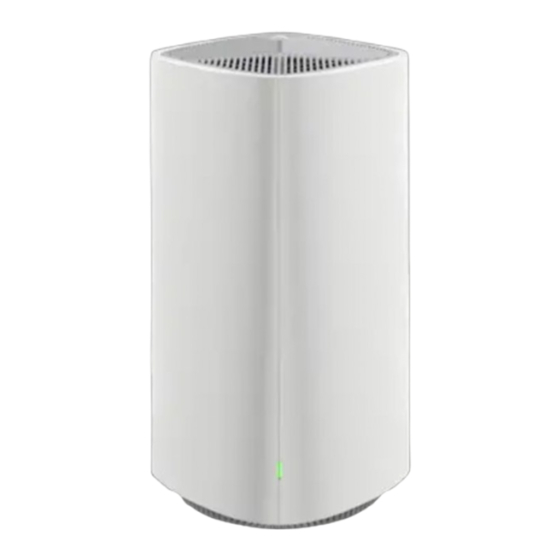

Figure 1: SDG-8733 and SDG-8734 Wi-Fi 7 10G Routers — Front View
The SDG-8733 and SDG-8734 come with pre-loaded software packages, as shown in this table.
Table 1: Versions of the SDG-8733 and SDG-8734
Description
SDG-8733 with SmartOS
SDG-8733 with PlumeOS DHCP
SDG-8733 with PlumeOS PPPoE
SDG-8734 with SmartOS
SDG-8734 with PlumeOS DHCP
SDG-8734 with PlumeOS PPPoE
WARNING
A warning indicates a hazard
that, if not avoided, could result in
death, injury, or serious property
damage.
Service Delivery Gateway
SDG-8733 and SDG-8734
Wi-Fi 7 10G Routers
P/N
17600074FxS
17600074FxPD
17600074FxPP
17600075FxS
17600075FxPD
17600075FxPP
CAUTION
A caution indicates a hazard
that, if not avoided, could result in
service interruption, damage to
the equipment, or minor property
damage.
April 2025
Doc Number: 6SDG873334-13C
NOTE
A note highlights additional, but
important, information or
features.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ADTRAN 17600074FxS
Summary of Contents for ADTRAN 17600074FxS
- Page 1 Figure 1: SDG-8733 and SDG-8734 Wi-Fi 7 10G Routers — Front View The SDG-8733 and SDG-8734 come with pre-loaded software packages, as shown in this table. Table 1: Versions of the SDG-8733 and SDG-8734 Description SDG-8733 with SmartOS 17600074FxS SDG-8733 with PlumeOS DHCP 17600074FxPD SDG-8733 with PlumeOS PPPoE 17600074FxPP...
-
Page 2: Installation
Due to compliance certification requirements, use only pluggable optics supplied by Adtran. Adtran cannot certify system integrity with other pluggable optics. Installation After you unpack the unit, inspect it for damage. If you notice any damage, file a claim with the carrier and then contact Adtran. For more information, see Warranty. Installation Guidelines... -
Page 3: Shipment Contents
Installation Guidelines NOTE See the national, state, and local electrical codes for the requirements for power, grounding, wiring, and installation methods. Read all warnings and cautions before you install or service the SDG-8733 and SDG-8734. Ensure that the SDG-8733 and SDG-8734 are not located in direct sunlight or next to any thermal obstructions. ... -
Page 4: Desktop Installation
Optional wall-mounting kit (P/N 17600202F1), which includes: CDG CPE Wall Mount 3 mounting bracket Hook and loop fastener strap 2x M4x50 mm screws and wall anchors 6 mm drill bit — for wall mounting to dry wall ... - Page 5 4. To fasten the wall-mount kit to dry wall: a. Use a 6 mm drill bit to drill the mounting holes into the wall. b. Use a hammer to lightly tap the included wall anchors into the drilled holes until they are flush with the wall. c.
-
Page 6: Step 2: Connecting The Power
The Multifunction Status LED should be lit on the front of the device, as described in LEDs. NOTE Adtran recommends only using the DC power adapter that is provided with the unit. CAUTION For United States and Canada applications, the DC power adapter must be an NRTL Listed LPS power supply. For International applications, the DC power adapter must be an LPS power supply, specifically approved for that country. - Page 7 Due to compliance certification requirements, use only SFP+ optical modules and QSFP28 optical modules approved by Adtran. Adtran cannot certify system integrity with other optic modules and cables. See the Adtran Pluggable Optics Compatibility Matrix (online tool, see www.adtran.com/pluggableoptics).
-
Page 8: Step 4: Setting Up
Do not remove the protective dust cover from the SFP+ until the fiber optic cable is ready to be connected. Connecting the USB Port The USB 3.0 host port is used for the direct connection of a USB memory stick or an Adtran-approved LTE communication module. Step 4: Setting Up For devices with SmartOS installed, scan the QR code labeled Wi-Fi Quick Start located on the back of the unit. -
Page 9: Reset Button
Color LED State Indication Satellite Set Up Purple Pulsing Satellite set up White Solid Satellite up Pulsing Satellite up, fair signal Amber Pulsing Satellite up, poor signal White Pulsing Reverting Multifunction Status LED for PlumeOS The Multifunction Status LED on the front indicates the status of the device while running PlumeOS. Color LED State Indication... -
Page 10: Sync Button
NOTE Adtran strongly suggests that the power supply (a 5.9-foot [1.8 m] power cord) included with the SDG-8733 and SDG-8734 be connected to a surge suppressor device which can have its own extension cable. The surge protection device should provide L- N, L-G, and N-G protection. -
Page 11: Warranty
Adtran offers training courses for our products, including customized training and courses taught at our facilities or at customer sites. For inquiries, see https://adtran.com/training. Warranty Adtran will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found online at https://www.adtran.com/warranty. Safety and Regulatory CAUTION ... -
Page 12: Europe - Eu Declaration Of Conformity
Europe — EU Declaration of Conformity Products bearing the marking comply with these EU Directives: EMC Directive 2014/30/EU l Low Voltage Directive 2014/35/EU EMC Directive 2014/53/EU ErP Directive reference: 2009/125/EC RoHS Directive 2015/863/EU WEEE Directive reference: 2012/19/EU Compliance with these directives implies conformity to harmonized European standards that are noted in the EU Declaration of Conformity. -
Page 13: Can Ices-3(B)/Nmb-3(B)
The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. CAN ICES-3(B)/NMB-3(B) Canadian Department of Communications Radio Interference Regulations This digital apparatus (Wi-Fi 7 Router Model SDG-8733 and SDG-8734) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. - Page 14 1.800.827.0807 Brand names and product names included in this document are trademarks, registered trademarks, or trade *6SDG873334-13C* names of their respective holders. Copyright © 2025 Adtran, Inc. All Rights Reserved. SDG-8733 and SDG-8734 Quick Start Guide - Issue: C...
