Razer KAIRA FOR XBOX Manual

WHAT'S INSIDE / WHAT'S NEEDED

WHAT'S INSIDE

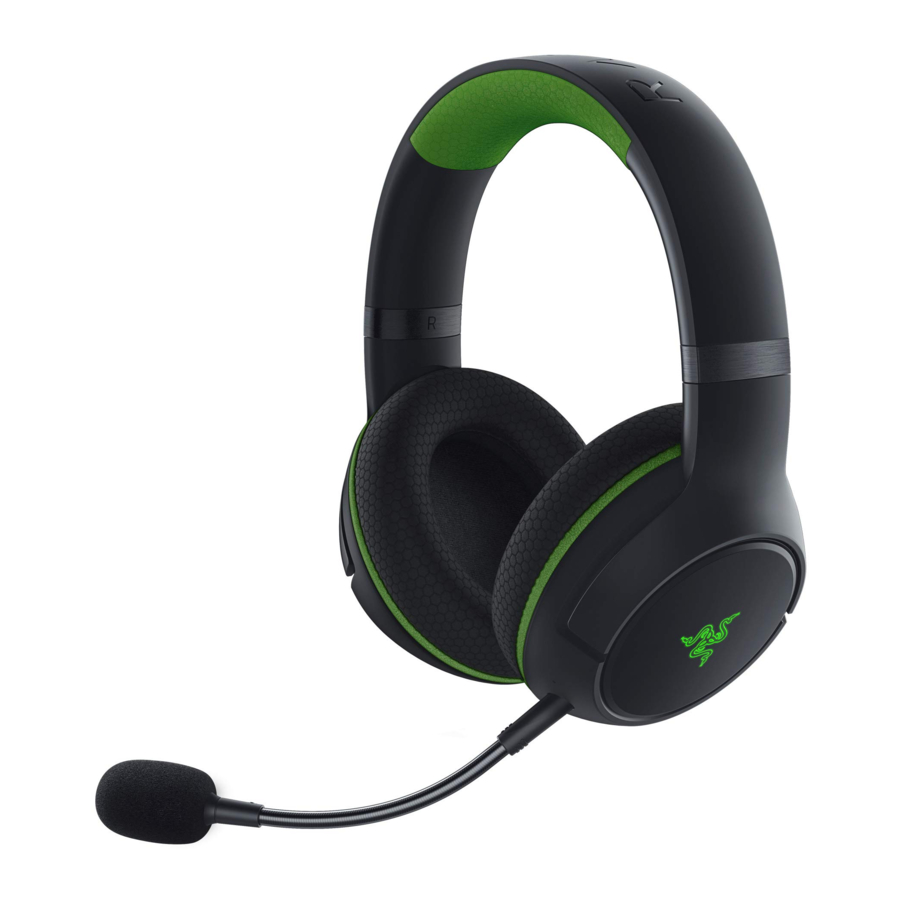

  • Razer Kaira for Xbox
    Overview
  1. Auto-adjusting headband
  2. Breathable memory foam ear cushions
  3. Game / Chat balance wheel
  4. EQ / Xbox Pairing button
  5. Bendable Razer™ HyperClear cardioid mic
  1. Charging port
  2. Power button
  3. Status indicator
  4. Volume wheel
  5. Mic mute switch
  • Charging cable
  • Important Product Information Guide

WHAT'S NEEDED

  • Xbox One TM / Xbox One TM S / Xbox OneTM X / Xbox SeriesTM X|S
    OR
  • PC (Windows® 10 64-bit or higher) with a free USB port*
  • Internet connection for app installation

*May require the Xbox Wireless Adapter for Windows 10 (not included).

SAFETY STATEMENT

Before using your Xbox console with this product, read its instruction manual for safety, health, and other information regarding the use of your Xbox console.

LET'S GET YOU COVERED

You've got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com

Got a question? Ask the Razer Support Team at support.razer.com

TECHNICAL SPECIFICATIONS

HEADPHONES

  • Frequency response: 20 Hz – 20 kHz
  • Impedance: 32Ω at 1 kHz
  • Sensitivity (@1 kHz): 108 dB
  • Drivers: 50 mm, with Neodymium magnets
  • Inner ear cup diameter: Width 56mm / Length 67mm
  • Oval ear cushions: Designed for full-ear coverage with heat-transfer fabric, perfect for longwearing comfort
  • Connection type: Direct to Xbox / via Xbox Wireless Adapter for Windows 10
  • Wireless range: 10 m / 30 ft
  • Wireless frequency: 2.4 GHz / 5 GHz
  • Battery life: Up to 15 hours

MICROPHONE

  • Frequency response: 100 – 10,000 Hz
  • Signal-to-noise ratio: > 60 dB
  • Sensitivity (@1 kHz): -54 ± 3 dB
  • Pick-up pattern: Unidirectional

GETTING STARTED

CHARGING YOUR HEADSET

Connect your Razer Kaira for Xbox to a powered USB port using the charging cable. For best results, please fully charge your headset before using it for the first time. A depleted headset will fully charge in about 4 hours.
CHARGING YOUR HEADSET - Step 1
While charging, your Razer Kaira for Xbox will continuously show its battery level on the status indicator.
CHARGING YOUR HEADSET - Step 2

PAIRING YOUR HEADSET

TO YOUR XBOX CONSOLE

  1. Press the Connect button on your console.
    PAIRING HEADSET TO XBOX CONSOLE - Step 1
  2. Press and hold the power button until the status indicator is briefly lit or until you hear a tone.
    PAIRING HEADSET TO XBOX CONSOLE - Step 2
  3. Wait until the status indicator becomes static green, indicating that the headset is now paired to the Xbox console.
    PAIRING HEADSET TO XBOX CONSOLE - Step 3

TO YOUR PC VIA XBOX WIRELESS ADAPTER FOR WINDOWS 10*

information Make sure that your Xbox Wireless Adapter for Windows 10 is up-to-date. Some systems have Xbox Wireless built in which allows you to pair your headset by using Bluetooth & other devices in Settings.

  1. Plug in your Xbox Wireless Adapter for Windows 10* to your PC and then press its Connect button.
    PAIRING TO PC VIA XBOX WIRELESS ADAPTER FOR WINDOWS 10 - Step 1
  2. While powered off, press and hold the power button until the status indicator is lit, or until you hear a tone.
    PAIRING TO PC VIA XBOX WIRELESS ADAPTER FOR WINDOWS 10 - Step 2
  3. Wait until the status indicator becomes static green, indicating that the headset is now paired to the wireless adapter.
    PAIRING TO PC VIA XBOX WIRELESS ADAPTER FOR WINDOWS 10 - Step 3

USING YOUR RAZER KAIRA FOR XBOX

POWER BUTTON

Power on or off your headset by holding the power button until the status indicator is on; and press and hold the button again to turn off. Two distinct tones will help notify you that the headset is powered on or off.
POWER BUTTON

BATTERY LEVEL

When unplugged and powered on, the status indicator will briefly show the connection and battery status. While in use, there will be a tone notification when the headset needs to be recharged; during such time, the indicator will continue showing the battery status until you charge the headset.
BATTERY LEVEL

EQ / XBOX PAIRING BUTTON

PAIRING MODE
When pairing the headset to a different Xbox console or wireless adapter, use the EQ / Xbox Pairing button to activate its pairing mode. While powered on, press and hold the EQ / Xbox Pairing button until the status indicator starts to blink in green or until you hear a tone, indicating that the headset can now be paired to a different Xbox console or wireless adapter.
EQ / XBOX PAIRING BUTTON - PAIRING MODE

EQ PRESETS
Double press the EQ / Xbox Pairing button to switch between the equalizer presets available on the headset.

Preset Description
Default All-around balance of audio clarity and bass
Bass Boost Immerse more on solid, realistic bass
FPS Hear the most subtle of footsteps sneaking from behind
Custom* Your own custom balance of audio clarity

*This preset will only be available when you customize a preset on the Razer Headset Setup for Xbox app.

VOLUME WHEEL

Rotate the volume wheel to increase or decrease the volume.
VOLUME WHEEL

GAME / CHAT BALANCE

Rotate the Game / Chat balance wheel to increase the in-game volume and decrease the voice chat volume or vice versa. By default, the notch on the wheel is set to the middle to indicate 50% chat and 50% game volume.
GAME / CHAT BALANCE

MICROPHONE

Bend the mic until it is parallel to your mouth. Make sure the mic diaphragm is in front and the air vent is facing away from your mouth.
MICROPHONE - Step 1
Slide the mic mute switch to mute or unmute the microphone.
MICROPHONE - Step 2

COMFORT

It's recommended to gently stretch the headset before placing it over your head to minimize headband stress however, don't stretch the headset beyond its limits.
COMFORT

RAZER HEADSET SETUP FOR XBOX APP

Use the Razer Headset Setup for Xbox app to personalize your own EQ preset which you can set as the Custom preset of your headset, enable mic monitoring to hear your own voice through the headset, and even adjust other mic features for a truly immersive gaming experience.

*Download and install the Razer Headset Setup for Xbox app from the Microsoft Store on your gaming console or PC.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Kaira for Xbox, we suggest that you adopt the following guidelines:

Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance.

Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.

Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any activities that requires active awareness of your surroundings.

Listening to excessively loud volumes over extended periods of time can damage your hearing. Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE

The Razer Kaira for Xbox requires minimum maintenance to keep it in optimum condition. Once a month we recommend you clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.

LIMITED PRODUCT WARRANTY

For the latest and current terms of the Limited Product Warranty, please visit razer.com/warranty.
