RAZER KRAKEN ULTIMATE (RZ04-03180100-R3U1) Manual

INTRODUCTION

Hear the unfair advantage firsthand and be the last man standing with the Razer Kraken Ultimate Armed with THX Spatial Audio, custom-tuned 50mm drivers, and a crystal-clear active noise-canceling mic to provide the ultimate competitive gaming audio experience.

WHAT'S INSIDE

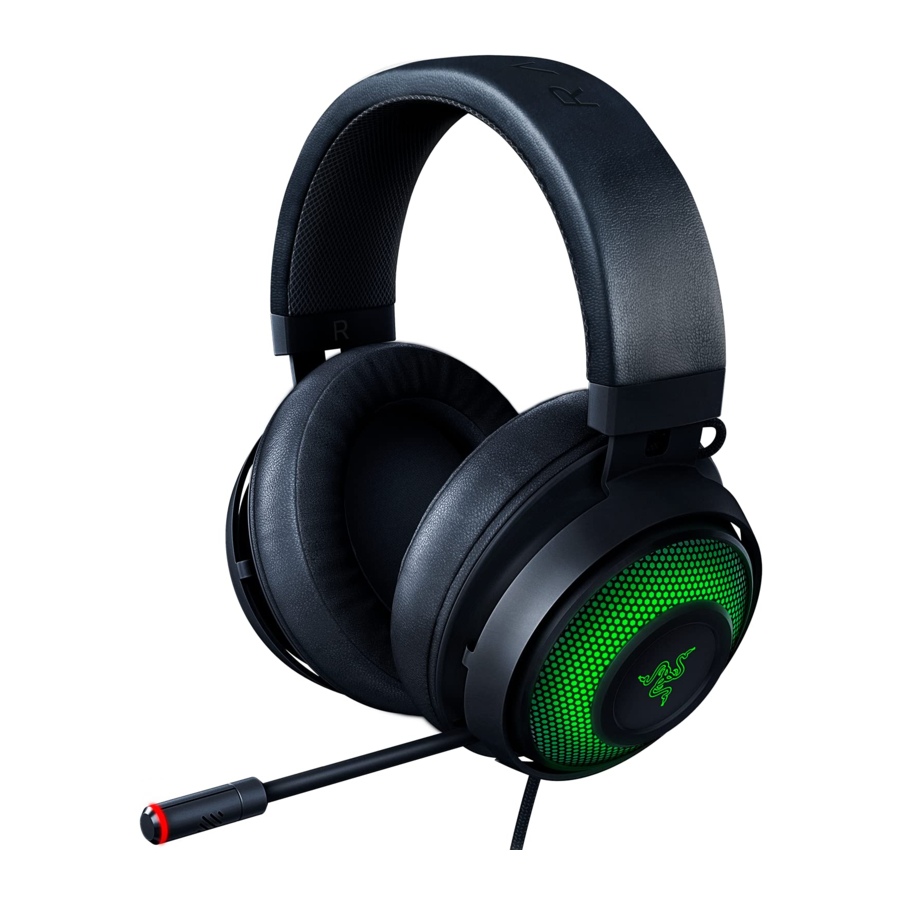

RAZER KRAKEN ULTIMATE GAMING HEADSET

1. Adjustable padded headband
2. Cooling gel-infused ear cushions
3. Retractable mic
4. Mic mute indicator
5. Mic mute button
6. Backlit Razer logo
7. Volume wheel
8. THX Spatial Audio indicator
9. THX Spatial Audio button
10. USB connector

WHAT'S NEEDED

PRODUCT REQUIREMENTS

• PC with a free USB port

RAZER SYNAPSE REQUIREMENTS

• Windows®7 64-bit (or higher)
• Internet connection for software installation

LET'S GET YOU COVERED

You've got a great device in your hands complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com

TECHNICAL SPECIFICATIONS

HEADPHONES

• Frequency response: 20 Hz —20 kHz
• Impedance: 32 @ 1 kHz
• Sensitivity (@1 kHz): 109 dB
• Drivers: 50 mm, with Neodymium magnets
• Inner ear cup diameter: 65 x 44 mm
• Connection type: USB Digital
• Cable length: 1.3 m / 4.27 ft.
• Approx. weight: 275 g/ 0.60 lbs
• Oval ear cushions: Designed for full-ear coverage with cooling gel, for sound isolation and comfort

MICROPHONE

• Frequency response: 100 Hz —10 kHz
• Signal-to-noise ratio: > 60 dB
• Sensitivity (@1 kHz): -45 ± 3 dB
• Pick-up pattern: Unidirectional ECM boom
• Mute Function: Click-to-mute

ON-EARCUP CONTROLS

• Volume up and down
• THX Spatial on/off toggle

AUDIO USAGE

• Audio Usage: Devices with USB Connector
• Audio + Microphone Usage: Devices with USB Connector

GETTING STARTED

THE MIC
Bend the mic until it's a few millimeters away from your mouth. Make sure the mic diaphragm is in front of your mouth and the air vent is on the opposite side.

THE VOLUME WHEEL
Rotate the volume wheel as shown to increase or decrease the volume.

1. Make sure your Razer device is connected to the USB port of your computer.
2. Install Razer Synapse 3 when prompted* or download the installer from razer.com/synapse.
3. Create your Razer ID or log in using an existing account.

*Applicable for Windows 8 or later.

CONFIGURING YOUR RAZER KRAKEN ULTIMATE VIA RAZER SYNAPSE 3

Disclaimer: The features listed here require you to log in to Razer Synapse. These features are also subject to change based on the current software version and your Operating System.

SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse 3. This tab allows you to navigate the Dashboard subtab.

DASHBOARD
The Dashboard subtab is an overview of your Razer Synapse 3 where you can access all your Razer devices, modules, and online services.

MIXER
The Mixer subtab allows you to enable/disable the THX Spatial Audio, as well as calibrate the audio positioning.

Bass Boost
Enhances the low frequency response to improve the bass output of your headset

Sound Normalization
Reduces the loudest audio received to avoid sudden and unpleasant increase in volume from effects such as shouting or explosions.

Voice Clarity
Improves the quality of incoming voice conversations by filtering the sound to improve clarity and adjusts the volume.

EQ
With the EQ subtab, you can alter the frequency response of your audio system.

MIC
The Mic subtab enables you to change the settings for all outgoing mic audio.

Microphone
Allows you to enable/disable the microphone on your headset using the toggle button.

Mic Volume
Adjusts the microphone input or mutes the mic when the function is disabled.

Mic Sensitivity
Changes the microphone's sensitivity so that it cuts out background noises and isolate your voice.

Sidetone
Enable or disable monitoring the microphone's raw audio input through the headset with an additional option to increase or decrease the volume.

Enhancements
Improves the quality of the microphone input by:

• reducing the variation of loudness via Volume Normalization
• decreasing environmental noise through Ambient Noise Reduction
• emphasizing the voice frequency by means of Vocal Clarity

Lighting
The Lighting subtab enables you to modify your Razer device's light settings.

Brightness
You can turn off your Razer device's lighting by toggling the Brightness option or increase/decrease the luminance using the slider.

Switch Off Lighting
This is a power saving tool which allows you to disable your device's lighting in response to your system's display turning off and/or automatically power down when your Razer Kraken Ultimate has been idle for a set amount of time.

Cosplay Mode
Choose an effect that you can enable even if you do not have access to Razer Synapse 3.

Stream-Reactive Lighting
This function allows your headset's lighting to change dynamically based on integrated actions for different streaming services.

Advanced Effects
The Advanced Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled peripheral. To start making your own Chroma Effect, simply press the Chroma Studio button ().

Quick Effects
A number of quick effects can be selected and applied to your headset's lighting, as listed here:

		DESCRIPTION	HOW TO SET UP
	Breathing	The lighting fades in and out of the selected color(s)	Select up to 2 colors
	Spectrum cycling	The LEDs will cycle through all 16.8 million colors	(Default) No configuration needed
	Static	The LEDs will remain lit in the selected color	Select any single-color lighting

If you have other supported Razer Chroma-enabled devices, you can synchronize their quick effects with your Razer device by clicking the Chroma Sync button ().

PROFILES TAB
The Profiles tab is a convenient way of managing all your profiles and linking them to your games and applications.

DEVICES
View which Razer device is using a specific profile using the Devices subtab. To create a new profile within the selected device, simply click the add button ().To rename, duplicate, or delete a profile, simply press the Miscellaneous button ( ). Each profile can be set to automatically activate when you run an application using the Link Games option.

LINKED GAMES
The Linked Games subtab gives you the flexibility to add games, view peripherals that are linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here even if it is not linked to a Razer device.

SETTINGS WINDOW
The Settings window, accessible by clicking the ( ) button on Razer Synapse 3, enables you to configure the startup behavior, change language, view your Razer device's master guide, or perform factory reset on any connected Razer device.

GENERAL
The default tab of the Settings window, The General tab enables you to change the software's display language and start-up behavior or view the master guide of all connected Razer devices.

RESET
The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory. All profiles stored on the selected device's on-board memory will be erased.
Note: Performing a factory reset on devices without on-board memory will only create a new profile for your device on Razer Synapse3 using the default settings

ABOUT
The About tab displays brief software information, its copyright statement, and also provides relevant links for its terms of use. You may also use this tab to check for software updates, or as a quick access to Razer's social communities.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES
In order to achieve maximum safety while using your Razer Kraken Ultimate, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0 ºC(32 ºF)to 40 ºC (104 ºF).Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any activity that requires active awareness of your surroundings.
Listening to excessively loud volume over an extended period of time can damage your hearing. Furthermore, legislation of certain countries permits only a maximum sound level of 86dB for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE
The Razer Kraken Ultimate requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device and clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
