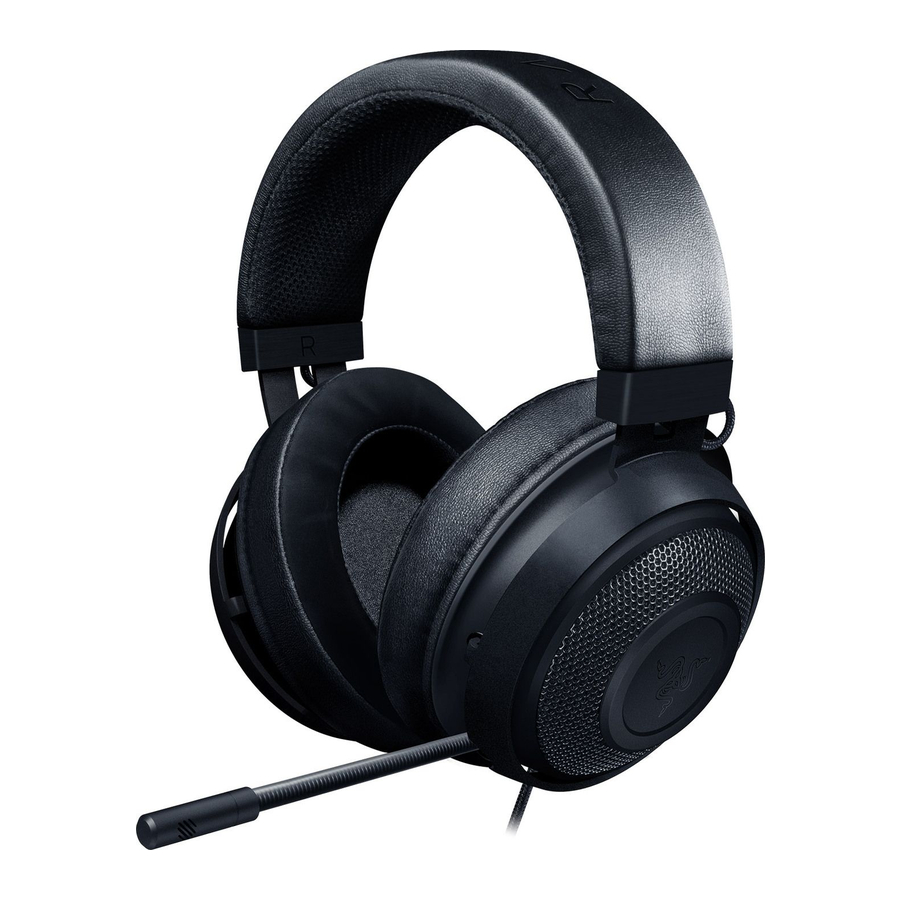

Razer KRAKEN PRO V2 - Gaming Headsets Manual

Introduction

The Razer Kraken Pro V2 features powerful 50 mm Razer^TM custom tuned drivers for gaming and redesigned circumaural ear cups for unparalleled audio immersion. The optimized form factor has a durable, lightweight Bauxite aluminum headband, and interchangeable ear cushions*, for personalized comfort.

PACKAGE CONTENTS

• Razer Kraken Pro V2 analog gaming headset
• Audio/mic splitter extension cable
• Important Product Information Guide

SYSTEM REQUIREMENTS

Audio usage

• Devices with 3.5 mm audio jack

Audio/mic splitter extension cable usage

• Devices with separate 3.5 mm audio and microphone jacks

Audio + microphone usage

• Devices with 3.5 mm audio + mic combined jack*

*Compatible with PC/Mac/PS4/Xbox One (Xbox One Stereo Adapter mavbe required, purchased separately)

REGISTRATION

Visit razerzone.com/razer-id to sign up for a Razer ID now to get a wide range of Razer benefits. For example, get real-time information on your product's warranty status via Razer Synapse. To learn more about Synapse and all its features, visit razerzone.com/synapse.
If you are already a Synapse user, register your product by clicking on your email address at the Synapse application and select Warranty Status from the dropdown list.
To register your product online, visit razerzone.com/registration. Please note that you will not be able to view your warranty status if you register via the website.

Your product's serial number can be found underneath the leatherette cushion, as shown here.

TECHNICAL SUPPORT

What you'll get:

• 1 year limited manufacturer's warranty.
• Free online technical support at razersupport.com.

TECHNICAL SPECIFICATIONS

HEADPHONES

• Frequency response: 12 Hz - 28 kHz
• Impedance: 32Ω @1 kHz
• Sensitivity (@1 kHz): 118 ± 3 dB
• Input power: 30 mW (Max)
• Drivers: 50mm, with Neodymium magnets
• Inner ear cup diameter: 56 mm / 2.2 in
• Connection type: analog 3.5 mm
• Cable length: 1.3 m / 4.27 ft plus 2m / 6.6 ft splitter adapter cable
• Approximate weight: 322 g / 0.71lbs

MICROPHONE

• Frequency response: 100 Hz - 10 kHz
• Signal-to-noise ratio: > 55 dB
• Sensitivity (@1 kHz): -38 ± 3 dB
• Pick-up pattern: Unidirectional ECM boom

IN-LINE CONTROL

• Analog volume control wheel
• Microphone quick mute toggle

DEVICE LAYOUT

1. Adjustable padded headband
2. Circumaural ear cup design
3. Leatherette ear cushions
4. Retractable microphone
5. Microphone mute toggle
6. Volume control wheel
7. 3.5 mm audio + mic Jack
8. Audio / mic splitter adapter

USING YOUR RAZER KRAKEN PRO V2

USING THE RETRACTABLE MICROPHONE

The splitter adapter that comes with the package is designed for use with computers equipped with separate audio output and microphone input jacks.

EXTENDING YOUR HEADPHONE'S LIFESPAN

We recommend stretching the headphones gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headphones beyond its technical limits.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Kraken Pro V2, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to razersupport.com for support. Do not attempt to service or fix the device yourself at any time.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any activities that requires active awareness of your surroundings.
Listening to excessively loud volumes over extended periods of time can damage your hearing. Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE

The Razer Kraken Pro V2 requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup. Do not use soap or harsh cleaning agents.
