Razer KRAKEN X USB - Headsets Manual

INTRODUCTION

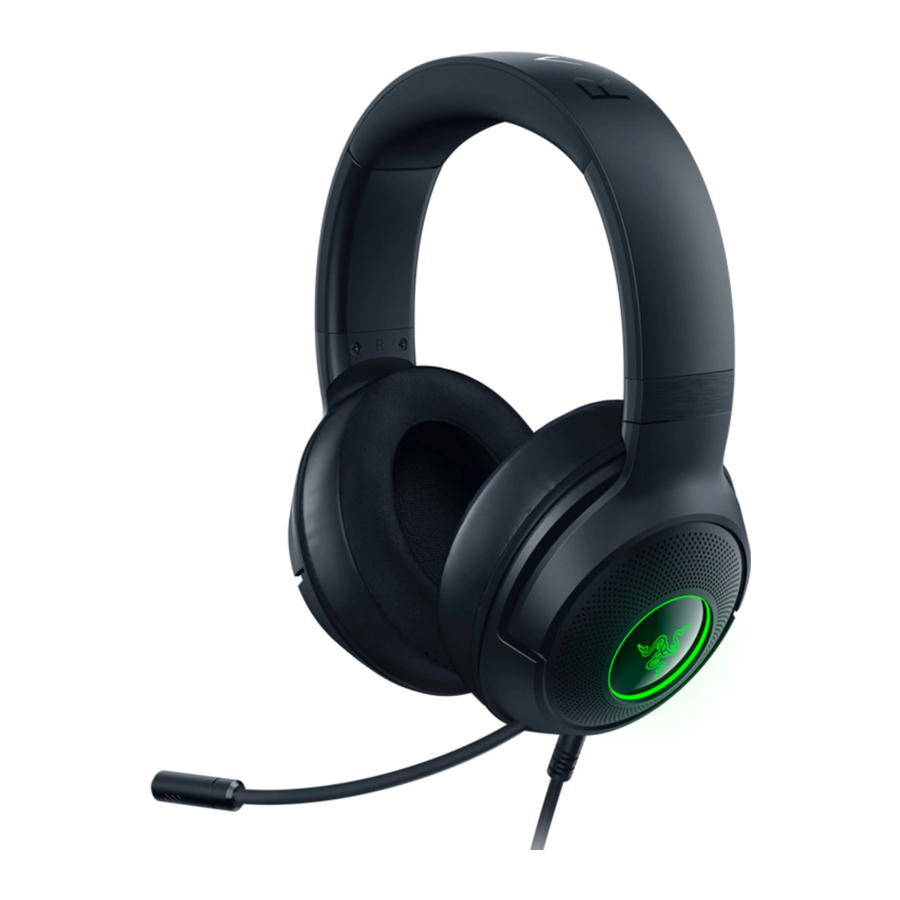

The Razer Kraken X USB is an ultra-light digital gaming headset built with superior comfort and sound. Harness accurate positional audio with 7.1 surround sound, as the soft ear cushions, adjustable headband and earcup lighting let you game in style and comfort.

WHAT'S INSIDE

RAZER KRAKEN X USB
Device Overview

Adjustable padded headband
Circumaural earcups
Backlit Razer logo
Unidirectional mic
Mic mute button
Volume wheel
USB connector

WHAT'S NEEDED

PRODUCT REQUIREMENTS

PC with a free USB port

RAZER SYNAPSE REQUIREMENTS

Windows@7 64-bit (or higher)
Internet connection
100 MB of free hard disk space

LET'S GET YOU COVERED

You've got a great device in your hands complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com

TECHNICAL SPECIFICATIONS

HEADPHONES

Frequency response: 20 Hz
20 kHz
Impedance: 32 Q @ 1 kHz
Sensitivity (@1 kHz): 113 dB
Drivers: 40 mm, with Neodymium magnets
Inner ear cup diameter: 65 x 44 mm
Connection type: USB Digital
Cable length: 1.3 m / 4.27 ft.
Approx. weight: 275 g/ 0.60 lbs
Oval ear cushions: Designed for full-ear coverage with leatherette, for sound isolation and comfort

MICROPHONE

Frequency response: 100 Hz —10 kHz
Signal-to-noise ratio: > 55 dB
Sensitivity (@1 kHz): -42 ± 3 dB
Pick-up pattern: Unidirectional ECM boom

ON EARCUP CONTROL

Volume up and down
Microphone quick mute toggle

GETTING STARTED

USING THE MIC

Bend the mic until it is parallel to your mouth. Make sure the mic diaphragm is in front and the air vent is facing away from your mouth.
USING THE MIC

USING THE VOLUME WHEEL

Rotate the volume wheel as shown to increase or decrease the volume.
USING THE VOLUME WHEEL

information Not applicable for PlayStation®4

USING THE MIC MUTE BUTTON

Press the mic mute button to mute or unmute the microphone.
USING THE MIC MUTE BUTTON

EXTENDING YOUR HEADSET'S LIFESPAN

We recommend stretching the headset gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headset beyond its technical limits.

7.1 SURROUND SOUND

Experience accurate positional audio that's specifically designed for games, movies, and music on PC.Be sure to use the activation code included in the packaging or visit razer.com/7.1-surround-sound to learn more.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Kraken X USB,we suggest that you adopt the following guidelines:

Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to supportxazer.com for assistance.

Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.

Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0ºC(32ºF) to 40ºC (104ºF).Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any activity that requires active awareness of your surroundings.

Listening to excessively loud volume over an extended period of time can damage your hearing. Furthermore, legislation of certain countries permits only a maximum sound level of 86dB for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE

The Razer Kraken X USB requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device and clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
