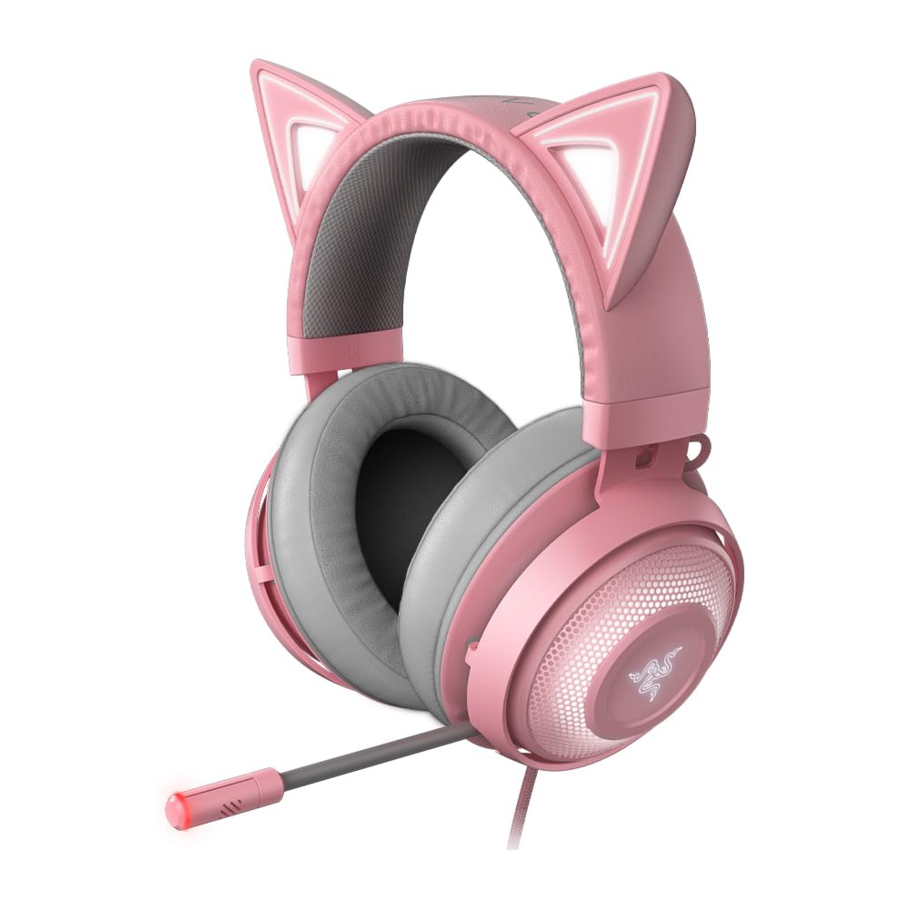

RAZER KRAKEN KITTY EDITION Manual

Whether you're looking to stream, make photo ops pop or just be Immersed in your favorite movie or game with killer audio, the Razer Kraken Kitty Edition allows you to fully express your own unique personality, passion and style in the most colorful way Imaginable.

WHAT'S INSIDE

Overview

  1. Backlit kitty ears
  2. Adjustable padded headband
  3. Cooling gel-infused ear cushions
  4. Mic mute indicator
  5. Mic mute button
  6. Retractable mic
  7. Backlit Razer logo
  8. Volume wheel
  9. THX Spatial Audio indicator
  10. THX Spatial Audio button
  11. USB connector

WHAT'S NEEDED

PRODUCT REQUIREMENTS

  • PC with a free USB port

RAZER SYNAPSE REQUIREMENTS

  • Windows@7 64-bit (or higher)
  • Internet connection
  • 100 MB of free hard disk space

LET'S GET YOU COVERED

You've got a great device in your hands complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com

TECHNICAL SPECIFICATIONS

HEADPHONES

  • Frequency response: 20 Hz —20 kHz
  • Impedance: 32 Q@ 1 kHz
  • Sensitivity (@1 kHz): 109 dB
  • Drivers: 50 mm, with Neodymium magnets
  • Inner ear cup diameter: 65 x mm
  • Connection type: USB Digital
  • Cable length: 1.3 m / 4.27 ft.
  • Approx. weight: 275 g/ 0.60 lbs
  • Oval ear cushions: Designed for full-ear coverage with cooling gel, for sound isolation and comfort

MICROPHONE

  • Frequency response: 100 Hz —10 kHz
  • Signal-to-noise ratio: > 60 dB
  • Sensitivity (@1 kHz): -45 ± 3 dB
  • Pick-up pattern: Unidirectional ECM boom
  • Mute Function: Click-to-mute

ON-EARCUP CONTROLS

  • Volume up and down
  • THX Spatial on/off toggle

AUDIO USAGE

  • Audio Usage: Devices with USB Connector
  • Audio + Microphone Usage: Devices with USB Connector

GETTING STARTED

THE MIC
Pull the tip of the mic until it is fully extended.

Bend the mic until it's a few millimeters away from your mouth. Make sure the mic diaphragm is in front of your mouth and the air vent is on the opposite side.
GETTING STARTED THE MIC

Press the mic mute button to turn the mic on or off.

THE VOLUME WHEEL
Rotate the volume wheel as shown to increase or decrease the volume.
THE VOLUME WHEEL

GET COMFY
It's recommended to gently stretch the headset before placing it over your head to minimize headband stress however, don't stretch the headset beyond its limits.

INSTALLING RAZER SYNAPSE 3

 INSTALLING RAZER SYNAPSE 3

Step 1: Make sure your Razer device is connected to the USB port of your computer.

Step 2: Install Razer Synapse 3 when prompted* or download the installer from razer.com/svnapse.

Step 3: Create your Razer ID or log in using an existing account.

*Applicable for Windows 8 or later.

CONFIGURING VIA RAZER SYNAPSE 3

Disclaimer: The features listed here require you to log in to Razer Synapse. These features are also subject to change based on the current software version and your Operating System.

SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse 3. This tab allows you to navigate the Dashboard subtab.

DASHBOARD
The Dashboard subtab is an overview of your Razer Synapse 3 where you can access all your Razer devices, modules, and online services.
SYNAPSE 3 - DASHBOARD

AUDIO TAB
The Audio tab is the main tab for your Razer Kraken Kitty Edition. From here, you can customize your device's settings to unleash its full potential. Changes made under this tab are automatically saved to your system and cloud storage.

SOUND
The Sound subtab is for modifying your device's sound properties.
SYNAPSE 3 - SOUND

Profile
Profile is a data storage for keeping all your Razer peripheral's settings. By default, the profile name is based on your system's name. To add, rename, duplicate, or delete a profile, simply press the Miscellaneous button ().

Volume
The volume slider allows you to adjust audio intensity of your device. Clicking the link will launch the Windows Volume Mixer window.

Sound Properties
Clicking the link will launch the Windows sound properties window.

THX Spatial Audio Demo
This feature allows you to test the effect of THX Spatial Audio on your headset.

MIXER
The Mixer subtab allows you to enable/disable the THX Spatial Audio, as well as calibrate the audio positioning.
SYNAPSE 3 - MIXER

ENHANCEMENT
The Enhancement subtab is for customizing the incoming audio settings.
SYNAPSE 3 - ENHANCEMENT

Bass Boost
Enhances the low frequency response to improve the bass output of your headset

Sound Normalization
Reduces the loudest audio received to avoid sudden and unpleasant increase in volume from effects such as shouting or explosions.

Voice Clarity
Improves the quality of incoming voice conversations by filtering the sound to improve clarity and adjusts the volume.

EQ
With the EQ subtab, you can alter the frequency response of your audio system.
SYNAPSE 3 - EQ

MIC
The Mic subtab enables you to change the settings for all outgoing mic audio.
SYNAPSE 3 - MIC

Microphone
Allows you to enable/disable the microphone on your headset using the toggle button.

Mic Volume
Adjusts the microphone input or mutes the mic when the function is disabled.

Mic Sensitivity
Changes the microphone's sensitivity so that it cuts out background noises and isolate your voice.

Sidetone
Enable or disable monitoring the microphone's raw audio input through the headset with an additional option to increase or decrease the volume.

Enhancements
Improves the quality of the microphone input by:

  • reducing the variation of loudness via Volume Normalization
  • decreasing environmental noise through Ambient Noise Reduction
  • emphasizing the voice frequency by means of Vocal Clarity

Lighting
The Lighting subtab enables you to modify your Razer device's light settings.
SYNAPSE 3 - Lighting

Brightness
You can turn off your Razer device's lighting by toggling the Brightness option or increase/decrease the luminance using the slider.

Switch Off Lighting
This is a power saving tool which allows you to disable your device's lighting in response to your system's display turning off and/or automatically power down when your Razer Kraken Kitty Edition has been idle for a set amount of time.

Cosplay Mode
Choose an effect that you can enable even if you do not have access to Razer Synapse 3.

Stream-Reactive Lighting
This function allows your headset's lighting to change dynamically based on integrated actions for different streaming services.

Advanced Effects
The Advanced Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled peripheral. To start making your own Chroma Effect, simply press the Chroma Studio button ( )

Quick Effects
A number of quick effects can be selected and applied to your headset's lighting, as listed here:

DESCRIPTION HOW TO SET UP
Breathing The lighting fades in and out of the selected color(s) Select up to 2 colors
Spectrum cycling The LEDs will cycle through all 16.8 million colors (Default) No configuration needed
Static The LEDs will remain lit in the selected color Select any single-color lighting

If you have other supported Razer Chroma-enabled devices, you can synchronize their quick effects with your Razer device by clicking the Chroma Sync button ()

PROFILES TAB
The Profiles tab is a convenient way of managing all your profiles and linking them to your games and applications.

DEVICES
View which Razer device is using a specific profile using the Devices subtab. To create a new profile within the selected device, simply click the add button ().To rename, duplicate, or delete a profile, simply press the Miscellaneous button (). Each profile can be set to automatically activate when you run an application using the Link Games option.
SYNAPSE 3 - DEVICES

LINKED GAMES
The Linked Games subtab gives you the flexibility to add games, view peripherals that are linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here even if it is not linked to a Razer device.
SYNAPSE 3 - LINKED GAMES

SETTINGS WINDOW
The Settings window, accessible by clicking the () button on Razer Synapse 3, enables you to configure the startup behavior, change language, view your Razer device's master guide, or perform factory reset on any connected Razer device.
SYNAPSE 3 - SETTINGS WINDOW

GENERAL
The default tab of the Settings window, The General tab enables you to change the software's display language and start-up behavior or view the master guide of all connected Razer devices.

RESET
The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory. All profiles stored on the selected device's on-board memory will be erased.

information Note: Performing a factory reset on devices without on-board memory wi// only create a new profile for your device on Razer Synapse3 using the default settings.

ABOUT
The About tab displays brief software information, its copyright statement, and also provides relevant links for its terms of use. You may also use this tab to check for software updates, or as a quick access to Razer's social communities.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Kraken Kitty Edition, we suggest that you adopt the following guidelines:

Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance.

Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.

Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0C(32F)to 40 C(104F).Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any activity that requires active awareness of your surroundings.

Listening to excessively loud volume over an extended period of time can damage your hearing. Furthermore, legislation of certain countries permits only a maximum sound level of 86dB for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE

The Razer Kraken Kitty Edition requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device and clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.

For the latest and current terms of the Limited Product Warranty, please visit: razer.com/warranty
