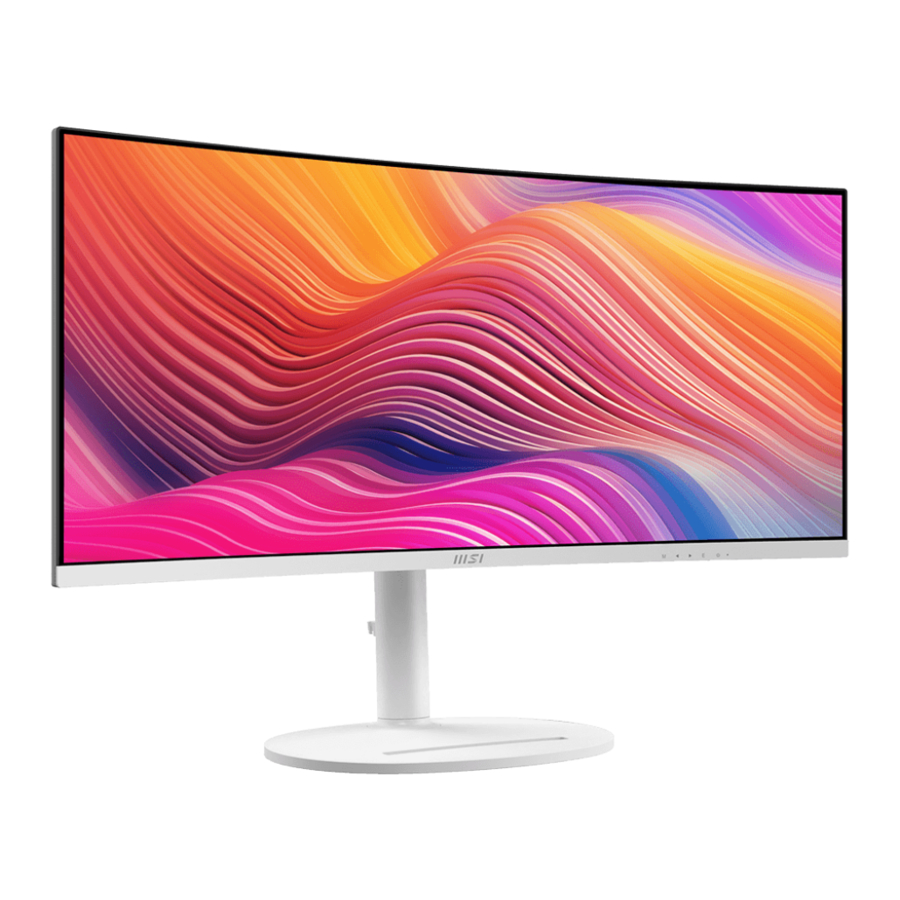

MSI Modern Series, Modern MD342CQP / MD342CQP 3PC5 / MD342CQPW Manual

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

Package Contents

• Contact your place of purchase or local distributor if any of the items is damaged or missing.
• Package contents may vary by country and model.
• The included power cord is exclusively for this monitor and should not be used with other products.

Installing the Monitor Stand

1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place.
2. Connect the base to the stand and tighten the screw to secure the base.
3. Make sure the stand assembly is properly installed before setting the monitor upright.

• Place the monitor on a soft, protected surface to avoid scratching the display panel.
• Do not use any sharp objects on the panel.
• The groove for installing the stand bracket can also be used for wall mount. Please contact your dealer for proper wall mount kit.
• This product comes with NO protective film to be removed by the user! Any mechanical damages to the product including removal of the polarizing film may affect the warranty!

Adjusting the Monitor
This monitor is designed to maximize your viewing comfort with its adjustment capabilities.

• Avoid touching the display panel when adjusting the monitor.
• The reserved pivot 5° is designed for adjusting the level imbalance of some tables.



Monitor Overview

1	OSD Keys
2	Power Button & Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode.
3	Kensington Lock
4	Cable Routing Hole
5	Power Jack
6	Headphone Jack
7	HDMI™ Connector Supports HDMI™ CEC, 3440x1440@100Hz as specified in HDMI™ 2.0b.
8	HDMI™ Connector Supports 3440x1440@100Hz as specified in HDMI™ 2.0b.
9	DisplayPort Supports 3440x1440@120Hz as specified in DisplayPort 1.4a.
10	USB Type-C Port This port supports DisplayPort Alternate (DP Alt) Mode and up to 20V/4.9A (98W) power delivery. Your USB-C signal source and cable must support DisplayPort Alternate Mode to enable video output to the monitor. USB Type-C Power Delivery 5V / 3A (15W) 9V / 3A (27W) 12V / 3A (36W) 15V / 3A (45W) 20V / 4.9A (98W)
11	USB 5Gbps Type-B Upstream Port For USB Upstream Cable. Check the package for USB Upstream Cable and connect it to the PC and monitor. Once this cable is connected, the USB Type-A Downstream Ports on the monitor will be ready for use.
12	USB 5Gbps Port This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)

Connecting the Monitor to PC

1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.
3. Assemble the external power supply & power cord. (Figure A)
4. Connect the external power supply to the monitor power jack. (Figure B)
5. Plug the power cord into the electrical outlet. (Figure C)
6. Turn on the monitor. (Figure D)
7. Power on the computer and the monitor will auto detect the signal source.

OSD Setup

This chapter provides you with essential information on OSD Setup.

All information is subject to change without prior notice.

OSD Keys
The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu.

OSD Key	Hot Key (When OSD is OFF)	OSD Setup (When OSD is ON)
M	Activating the OSD Main Menu	Entering the submenus. Confirming a selection or setting.
	Mode	Navigating through function menus and items. Adjusting function values.
	Input Source
E	Audio Volume	Confirming the selection. Exiting the current menu.

OSD Menus

Modern MD342CQP

Modern MD342CQPW

The following settings will be grayed out when HDR signals are received:

• MPRT
• Low Blue Light
• HDCR
• Brightness
• Contrast
• Color Temperature
• sRGB

Professional

1st Level Menu	2nd/3rd Level Menu	Description
Eye-Q Check	OFF	Select OFF to disable Eye-Q Check.
	Amsler Grid	Select Amsler Grid to check your central vision field.
	Astigmatism	Select Astigmatism to check your blurred vision.
	Posture Correction	Select Posture Correction to improve your posture when sitting.
Screen Assistance	None	Users can adjust Screen Assistance in any mode.
KVM	Auto	Auto allows the monitor to automatically switch between USB input sources, such as keyboards, mice or other USB devices. Users can also designate Upstream port or USB Type-C as the only USB signal source.
	Upstream
	Type C
Screen Size	Auto	Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. Activating Screen Size 1:1 will affect: Affected Function Function Status MPRT Adaptive-Sync PIP/PBP Set to OFF
	4:3
	16:9
	21:9
	1:1
Adaptive-Sync	OFF	Adaptive-Sync prevents screen tearing. When Adaptive-Sync is set to ON, it is mandatory to enable HDMI™ VRR. Activating Adaptive-Sync will affect: Affected Function Function Status MPRT » PIP/PBP Set to OFF Screen Size 1:1 Set to Auto
	ON


Input Source

PIP/PBP

Navi Key

Settings

Specifications

Monitor		Modern MD342CQP Modern MD342CQPW
Size		34 inch
Curvature		Curve 1500R
Panel Type		VA
Resolution		3440x1440 (UWQHD)
Aspect Ratio		21:9
Brightness		300 nits (typ.)
Contrast Ratio		3500:1
Refresh Rate		120Hz
Response Time		1ms (MPRT)
I/O		Headphone Jack x1 HDMI™ Connector x2 DisplayPort x1 USB Type-C Port x1 USB 5Gbps Type-B Upstream Port x1 USB 5Gbps Type-A Port x2
View Angles		178°(H), 178°(V)
DCI-P3*/ sRGB		95% / 119%
Surface Treatment		Anti-glare
Display Colors		1.07B (8bits + FRC)
Speaker		3W x2
Monitor Power Options		19V 9.47A
External Power Supply**		Model: ADS-210NL-19-3 190180E
Power Input		100~240Vac, 50~60Hz, Max 3.0A
Power Output		19V 9.5A
Adjustment (Height)		0 ~ 110mm
Adjustment (Tilt)		-5° ~ 20°
Adjustment (Swivel)		-30° ~ 30°
Adjustment (Pivot)		-5° ~ 5°
Kensington Lock		Yes
VESA Mounting		Plate Type: 75 x 75 mm Screw Type: M4 x 10 mm Thread Diameter: 4 mm Thread Pitch: 0.7 mm Thread Length: 10 mm
Dimension (W x H x D)		808.6 x 424.1 x 250.6 mm
Weight	Net	8.05 kg
	Gross	11.9 kg
Environment	Operating	Temperature: 0℃ to 40℃ Humidity: 20% to 90%, non-condensing Altitude: 0 ~ 5000m
	Storage	Temperature: -20℃ to 60℃ Humidity: 10% to 90%, non-condensing

* Based on CIE1976 test standards.
** External Power Supply may vary by country.

Preset Display Modes

All information is subject to change without prior notice.

* HDMI™ VRR (Variable Refresh Rate) synchronizes with Adaptive-Sync (ON/ OFF). For VRR ON/OFF status, please check Adaptive-Sync.

Troubleshooting

The power LED is off

• Press the monitor power button again.
• Check if the monitor power cable is properly connected.

No image

• Check if the computer graphics card is properly installed.
• Check if the computer and monitor are connected to electrical outlets and are turned on.
• Check if the monitor signal cable is properly connected.
• The computer may be in Standby mode. Press any key to activate the monitor.

The screen image is not properly sized or centered

• Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display.

No Plug & Play

• Check if the monitor power cable is properly connected.
• Check if the monitor signal cable is properly connected.
• Check if the computer and graphics card are Plug & Play compatible.

The icons, font or screen are fuzzy, blurry or have color problems.

• Avoid using any video extension cables.
• Adjust brightness and contrast.
• Adjust RGB color or tune color temperature.
• Check if the monitor signal cable is properly connected.
• Check for bent pins on the signal cable connector.

The monitor starts flickering or shows waves

• Change the refresh rate to match the capabilities of your monitor.
• Update your graphics card drivers.
• Keep the monitor away from electrical devices that may cause electromagnetic interference (EMI).

Safety Instructions

• Read the safety instructions carefully and thoroughly.
• All cautions and warnings on the device or User Guide should be noted.
• Refer servicing to qualified personnel only.

Power

• Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100~240V before connecting the device to the power outlet.
• If the power cord comes with a 3-pin plug, do not disable the protective earth pin from the plug. The device must be connected to an earthed mains socket-outlet.
• Please confirm the power distribution system in the installation site shall provide the circuit breaker rated 120/240V, 20A (maximum).
• Always disconnect the power cord or switch the wall socket off if the device would be left unused for a certain time to achieve zero energy consumption.
• Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.
• If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device.

Environment

• To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
• Use this device only on a hard, flat and steady surface.
• To prevent the device from tipping over, secure the device to a desk, wall or fixed object with an anti-tip fastener that helps to properly support the device and keep it safe in place.
• To prevent fire or shock hazard, keep this device away from humidity and high temperature.
• Do not leave the device in an unconditioned environment with a storage temperature above 60℃ or below -20℃, which may damage the device.
• The maximum operating temperature is around 40℃.
• When cleaning the device, be sure to remove the power plug. Use a piece of soft cloth rather than industrial chemical to clean the device. Never pour any liquid into the opening; that could damage the device or cause electric shock.
• Always keep strong magnetic or electrical objects away from the device.
• If any of the following situations arises, get the device checked by service personnel:
  • The power cord or plug is damaged.
  • Liquid has penetrated into the device.
  • The device has been exposed to moisture.
  • The device does not work well or you can not get it working according to the User Guide.
  • The device has dropped and damaged.
  • The device has obvious sign of breakage.

Technical Support
If a problem arises with your product and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alternatively, please visit https://www.msi.com/support/ for further guidance.
