Summary of Contents for MSI Modern MD272XP

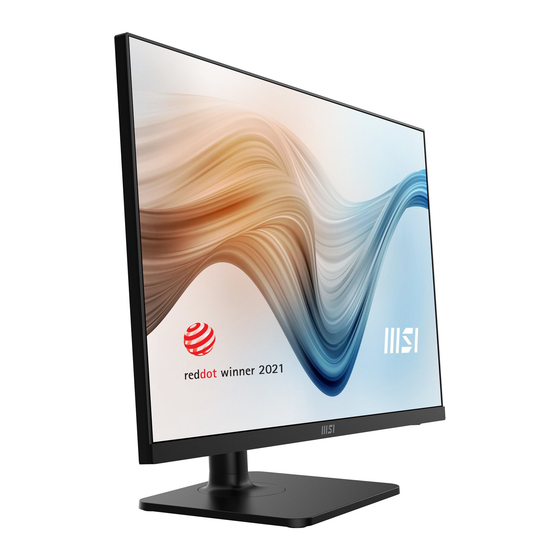

- Page 1 Modern Series LCD Monitor Modern MD272XP (3PB1) Modern MD272XPW (3PB1) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 6 Monitor Overview ....................7 Connecting the Monitor to PC ................9 OSD Setup ........................10 OSD Keys ......................10 OSD Menus........................11 Professional ...................... -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Modern MD272XP Monitor Modern MD272XPW Documentation Quick Start Guide... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand to the monitor groove. 2. Push the stand towards the monitor groove until it locks in place. 3. Connect the base to the stand and tighten the base screws to secure the base. 4. - Page 5 ⚠ Important Place the monitor on a soft, protected surface to avoid scratching the display panel. ∙ Do not use any sharp objects on the panel. ∙ ∙ The groove for installing the stand bracket can also be used for wall mount. Please contact your dealer for proper wall mount kit.
-
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ Please slightly tilt the monitor backwards before pivoting it. ∙ -5° 20° 110 mm 30°... -
Page 7: Monitor Overview
Monitor Overview Getting Started... - Page 8 OSD Keys Power Button / Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Kensington Lock Power Jack USB Type-C Port USB Type-C This port supports DisplayPort Alternate (DP Alt)
-
Page 9: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. -
Page 10: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. OSD Keys The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu. -
Page 11: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: Low Blue Light Contrast ∙ ∙ HDCR Color Temperature ∙ ∙ Brightness ∙ Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ∙ Use Up or Down Button to select and preview mode effects. - Page 12 1st Level Menu 2nd/3rd Level Menu Description MPRT ∙ MPRT is available when the refresh rate is 75 Hz. ∙ Activating MPRT will affect: Affected Function Function Status » Brightness Unable to select » Response Time » HDCR Set to OFF »...
- Page 13 1st Level Menu 2nd/3rd Level Menu Description Screen Assistance Eye-Q Check ∙ Select OFF to disable Eye-Q Check. ∙ Select Amsler Grid to check your central Amsler Grid vision field. Astigmatism ∙ Select Astigmatism to check your blurred vision. Posture ∙...
-
Page 14: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙ Sharpness improves clarity and details of images. Image ∙ Image Enhancement enhances image edges Enhancement to improve their acutance. -
Page 15: Input Source
Input Source 1st Level Menu 2nd Level Menu Description HDMI™ ∙ Select an Input Source from the list. Type C Auto Scan ∙ Users can use the Navi Key to select Input Source at below status: • While “Auto Scan” is set to “OFF” with the monitor at power saving mode;... -
Page 16: Setting
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Users have to press the E Button to confirm and apply the Language setting. English ∙ Language is an independent setting. Users’ own language setting will override the factory default. When Français users set Reset to Yes, Language will not be changed. - Page 17 1st Level Menu 2nd Level Menu Description Info. On Screen ∙ The information of the monitor status will be shown on the right side of the screen. Audio Volume 0-100 ∙ Users can adjust Audio Volume in any mode. Reset ∙...
-
Page 18: Specifications
Specifications Modern MD272XP Monitor Modern MD272XPW Size 27 inch Curvature Flat Panel Type Resolution 1920 x 1080 (FHD) 16:9 Aspect Ratio Brightness 300 nits (typ.) Contrast Ratio 1000:1 Refresh Rate 100Hz 4ms (GTG) Response Time 1ms (MPRT) 14ms (Tr + Tf) ∙... - Page 19 Modern MD272XP Monitor Modern MD272XPW Kensington Lock ∙ Plate Type: 75 x 75 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 21/ 24 mm Dimension (W x D x H) 613.5 x 200.8 x 413.3 mm...
-
Page 20: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Resolution HDMI™ USB-C Full HD 1920x1080 @60Hz @85Hz @100Hz Video Timing Resolution 720P 1080P @60Hz Preset Display Modes... -
Page 21: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 22: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 23 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 24: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 25: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 26 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 27 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
