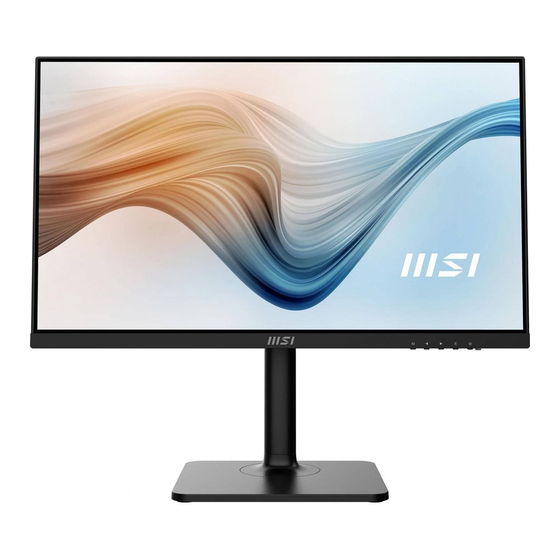

- Page 1 Modern Series LCD Monitor Modern MD272P (3PB1) Modern MD272PW (3PB1) Modern MD272QP (3PB1) Modern MD272QPW (3PB1) Modern MD272QP Ultramarine (3PB1) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 OSD Keys ........................ 9 OSD Menus........................10 Professional ...................... -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Modern MD272P Modern MD272PW Monitor Modern MD272QP Modern MD272QPW Modern MD272QP Ultramarine Documentation... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ Please slightly tilt the monitor backwards before pivoting it. ∙ 20° -5° 110 mm 30°... -
Page 6: Monitor Overview
Monitor Overview Getting Started... - Page 7 OSD Keys Power Button / Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Jack USB Type-C Port This port supports DisplayPort Alternate (DP Alt) Mode and up to 20V/3.25A (65W) power delivery.
-
Page 8: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. -
Page 9: Osd Setup
OSD Setup ⚠ This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. OSD Keys The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu. -
Page 10: Osd Menus
OSD Menus Modern MD272P/ Modern MD272PW Modern MD272QP/ Modern MD272QPW/ Modern MD272QP Ultramarine ⚠ Important When receiving HDR signals, Low Blue Light, HDCR, Brightness, Contrast, and Color Temperature will be grayed out. OSD Menus... -
Page 11: Professional
Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ∙ Use Up or Down Button to select and preview mode effects. User ∙ Press the E Button to confirm and apply your mode type. sRGB Anti-Blue Movie Office Black-White Response Time Normal ∙... - Page 12 1st Level Menu 2nd/3rd Level Menu Description Alarm Clock Location Left Top ∙ After setting the time, press the E Button to activate the timer. Right Top ∙ Users have to manually restore their preset Alarm Clock after any Left AC power loss and reconnection.
-
Page 13: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. ∙ Brightness will be grayed out when HDCR is enabled. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙... -
Page 14: Input Source
1st Level Menu 2nd/3rd Level Menu Description Color Cool ∙ Use Up or Down Button to select Temperature and preview mode effects. Normal ∙ Press the E Button to confirm and apply your mode type. Warm ∙ Users can adjust Color Customization R (0-100) Temperature in Customization... -
Page 15: Setting
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Users have to press the E Button to confirm and apply the Language setting. English ∙ Language is an independent setting. Users’ own language setting will override Français the factory default. When users set Reset to Yes, Language will not be changed. - Page 16 1st Level Menu 2nd Level Menu Description HDMI CEC ∙ HDMI CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devices that are CEC- capable. ∙ If HDMI CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 17: Specifications
Specifications Modern MD272QP Modern MD272P Modern MD272QPW Model Modern MD272PW Modern MD272QP Ultramarine Size 27 inch Curvature Flat Panel Type Resolution 1920 x 1080 2560 x 1440 Aspect Ratio 16:9 Brightness (nits) 250 (typ.) 300 (typ.) Contrast Ratio 1000:1 Refresh Rate 75Hz Response Time 5ms (GtG) - Page 18 Modern MD272QP Modern MD272P Modern MD272QPW Model Modern MD272PW Modern MD272QP Ultramarine Adjustment (Tilt) -5° ~ 20° Adjustment (Height) 0 ~ 110mm Adjustment (Swivel) -30° ~ 30° Adjustment (Pivot) -90° ~ 90° Kensington Lock ∙ Plate Type: 75 x 75 mm ∙...
-
Page 19: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Modern MD272QP Modern MD272P Modern MD272QPW Modern MD272PW Modern MD272QP Standard Resolution Ultramarine HDMI HDMI Type-C Type-C Full HD 1920x1080 @60Hz @75Hz 2560x1440 @60Hz @75Hz Video 720P Timing 1080P... -
Page 20: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 21: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 22 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 23: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 24: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 25 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 26 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
