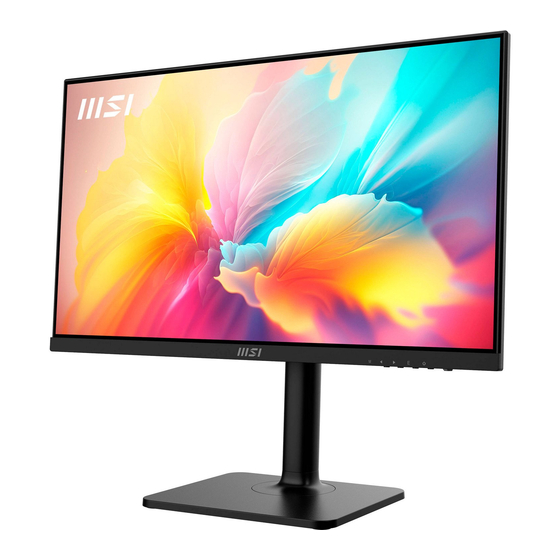

- Page 1 Modern Series LCD Monitor Modern MD2412P (3PA5) Modern MD2412PW (3PA5) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 OSD Keys ........................ 9 OSD Menus........................10 Professional ...................... -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor Modern MD2412P, Modern MD2412PW Documentation Quick Start Guide Screw(s) for Wall Mount Bracket(s) Accessories Stand with Screw(s) Power Cord &... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Push the stand towards the monitor groove until it locks in place. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ ∙ Please slightly tilt the monitor backwards before pivoting it. 110mm Getting Started... -
Page 6: Monitor Overview
Monitor Overview Getting Started... - Page 7 OSD Keys Power Button & Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Kensington Lock USB Type-C Port This port supports DisplayPort Alternate (DP Alt) Mode and up to 5V/3A (15W) power delivery.
-
Page 8: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. -
Page 9: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. OSD Keys The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu. -
Page 10: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: ∙ Night Vision ∙ Contrast ∙ MPRT ∙ Low Blue Light ∙ HDCR ∙ Color Temperature ∙ Brightness Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ∙... - Page 11 1st Level Menu 2nd/3rd Level Menu Description MPRT ∙ MPRT is available when the refresh rate is 85 Hz. ∙ Activating MPRT will affect: Affected Function Function Status » Adaptive-Sync Set to OFF » HDCR » Brightness Unable to select Refresh Rate Location Left Top...
-
Page 12: Image
1st Level Menu 2nd/3rd Level Menu Description Screen Assistance None ∙ Through AI algorithm, this function enhances the visibility of in-game crosshair. ∙ Users can select the color and position of the crosshair. Screen Size Auto ∙ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. -
Page 13: Input Source
1st Level Menu 2nd/3rd Level Menu Description HDCR ∙ HDCR enhances image quality by increasing the contrast of images. ∙ Activating HDCR will affect: Affected Function Function Status » Brightness Unable to select » MPRT Set to OFF Color Temperature Cool ∙... -
Page 14: Setting
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Users have to press the E Button to confirm and apply the Language setting. English ∙ Language is an independent setting. Users’ own Français language setting will override the factory . When users set Reset to Yes, Language will not be Deutsch changed. - Page 15 1st Level Menu 2nd Level Menu Description Info. On Screen ∙ The information of the monitor status will be shown on the right side of the screen. ∙ Activating Info. On Screen will affect: Affected Function Function Status » Eye-Q Check Set to OFF Audio Volume 0-100...
-
Page 16: Specifications
Specifications Monitor Modern MD2412P, Modern MD2412PW 23.8 inch Size Curvature Flat Panel Type 1920 x 1080 (FHD) Resolution 16:9 Aspect Ratio 300 nits Brightness Contrast Ratio 1000:1 Refresh Rate 100Hz 1ms (MPRT) Response Time 4ms (GTG) 14ms (Tr + Tf) ∙... - Page 17 Monitor Modern MD2412P, Modern MD2412PW Dimension (W x D x H) 541.90 x 200.80 x 490.10 mm 4.65 kg Weight Gross 6.30 kg ∙ Temperature: 0℃ to 40℃ Operating ∙ Humidity: 20% to 90%, non-condensing Environment ∙ Altitude: 0 ~ 5000m ∙...
-
Page 18: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Modern MD2412P, Modern MD2412PW Standard Resolution HDMI™ USB-C Full HD 1920x1080 @60Hz @85Hz @100Hz Video Timing 720P Resolution 1080P @60Hz Preset Display Modes... -
Page 19: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 20: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 21 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 22: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 23: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 24 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 25 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
