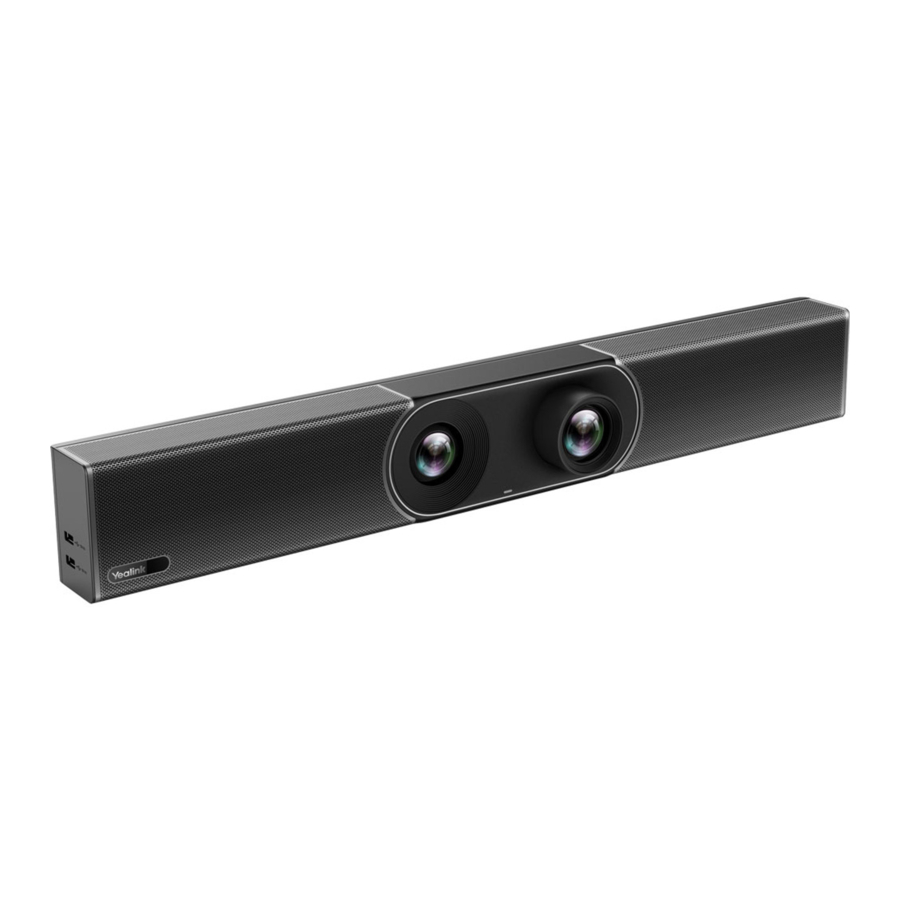

Yealink MeetingBar A30 / A30-20 / A30-010 Manual

Package Contents

• Standard accessories

• Optional accessories


Note:

• We recommend that you use the accessories provided or approved by Yealink. The unapproved third-party accessories may result in reduced performance.
• Use the Yealink original adapter (48V/0.7A) to charge the endpoint only. The use of the third-party adapter may cause the damage to the endpoint.
• Put the magnet rings on the HDMI cable to prevent electromagnetic interference.

Remove the Protective Shell

• Mount on a Wall
  A30 position


  Wall Mounting
  Use the bracket to mount your endpoint on a wall. The mounting height affects your camera view. The recommended height is 1.1m above the ground.
  1. Assemble the mounting bracket

  2. Mount the A30 to the wall


• Using Yealink TV Mount Bracket
  Note: The TV stand should be purchased separately.

• Put on a TV stand cart platform
• Put on a desk


Endpoint Connections

Note:

• If you only need to use one display, please connect to HDMI 1 port.
• If you connect a touch display device, you can operate the A30 either by remote control or touch control.
• If you connect a non-touch display device, you can use the remote control, mouse or CTP18.
• Please use the mouse when you sign in to the Teams version if you have no remote control.

Pair the CTP18 with A30-Teams:
Sign into the same Microsoft account on both CTP18 and the endpoint, then enter the PIN code according to the on-screen prompts, after that the system will be automatically paired with the CTP18.

Pair the CTP18 with A30-Zoom:
Enter the IP Address of the A30 in CTP18, then the system will be automatically paired with the CTP18.
