Wedgetail Rails and Platform Fitting Instruction
To suit—Alpha Canopy With LDV T60 Factory Rail
Congratulations on the purchase of your Australian made Wedgetail Roof Rack product.
Please read and follow the instructions carefully to ensure correct fitment.
Contact us if any parts appear missing, incorrect, or damaged.
Clean the roof prior to fitting the roof racks.
•
Spanner (17 mm)
1
2
3
WT-APCT60F-1112_Fitting_Rev1 Updated
Updated: 28 Feb 2024
Tools Required:
•
•
Hex key (6mm)

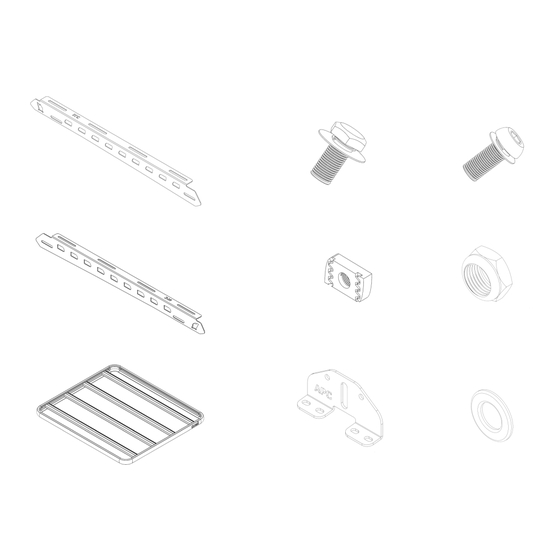

Kit Content
Wedgetail Alpha Canopy Left Rails
x1
Wedgetail Alpha Canopy Right Rails
x1
Wedgetail Platform
x1
PH2 Screwdriver
M10 X 20 Stainless Hex Bolt
4
x8
M10 Unistrut
5
x8
Alpha Lug
6
x4
COPYRIGHT TRADESMAN ROOF RACKS |WEDGETAILRACK.COM.AU
WT-APCT60F-1112
•
Silicone/urethane sealer
M10 Dacro Sems Dome Head
8
M10 Nyloc Nut
9
M6 Flat Washer
10
x4
x4
x8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WEDGETAIL WT-APCT60F-1112
Summary of Contents for WEDGETAIL WT-APCT60F-1112
- Page 1 To suit—Alpha Canopy With LDV T60 Factory Rail WT-APCT60F-1112 Congratulations on the purchase of your Australian made Wedgetail Roof Rack product. Please read and follow the instructions carefully to ensure correct fitment. Contact us if any parts appear missing, incorrect, or damaged.
- Page 2 Wedgetail Rails and Platform Fitting Instruction To suit—Alpha Canopy With LDV T60 Factory Rail WT-APCT60F-1112 Assemble rails to roof Remove the factory alpha roof racks from canopy. Keep all 8 factory mounting screw Apply silicone or urethane sealer (natural cure sealants only) to all the holes.
- Page 3 Assemble the Wedgetail Platform to the rails Place the Wedgetail Platform on the rails , then spin the channel nuts 90 degree in the channel on the underside of the rack till they lock into the channels. Do not tighten fully.
