Wedgetail Accessory Fixed Awning Bracket
Fitting Instruction
Congratulations on the purchase of your Australian made Wedgetail Roof Rack product.
Please read and follow the instructions carefully to ensure correct fitment.
Contact us if any parts appear missing, incorrect, or damaged.
Contact us if any question about the size of platform to ensure the correct fitment
Note:
The amount of components in WTA-FAB and WTA-FAB3 are different. Please confirm before assembly.
If any question, please contact our team member.
ITEM
COMPONENT
1
Wedgetail Fixed Awning Bracket
M8 X 22 Dacro Black
2
3
M8 Channel Nut
WTA-FAB_Fitting_Rev1 Updated
Updated: 10 OCT 2023
Tools Required:
Hex key (6mm)
Spanner (17mm)
KIT CONTENTS
WTA-FAB
QTY
2
4
4
COPYRIGHT TRADESMAN ROOF RACKS |WEDGETAILRACK.COM.AU
WTA-FAB / WTA-FAB3
WTA-FAB3
QTY
3
6
6

Advertisement

loading
Need help?

Need help?

Do you have a question about the WTA-FAB and is the answer not in the manual?

Questions and answers

Summary of Contents for WEDGETAIL WTA-FAB

  • Page 1 Contact us if any question about the size of platform to ensure the correct fitment Tools Required: • Hex key (6mm) • Spanner (17mm) Note: The amount of components in WTA-FAB and WTA-FAB3 are different. Please confirm before assembly. If any question, please contact our team member. KIT CONTENTS WTA-FAB WTA-FAB3 ITEM COMPONENT...

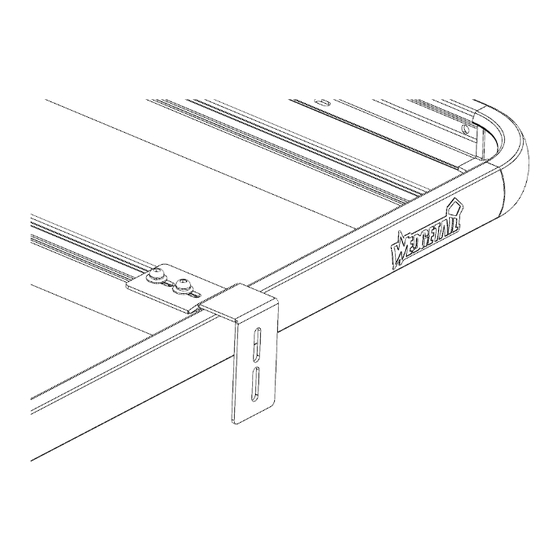

  • Page 2 Wedgetail Accessory Fixed Awning Bracket Fitting Instruction WTA-FAB / WTA-FAB3 • Mount awning bracket to Wedgetail platform as NOTE-Ensure the channel nuts are 90 de- shown using M8 Bolts and channel nuts as shown. grees to the channels. Refer to the diagram.
