WEDGETAIL WT-TFORTFR-2212 Fitting Instruction

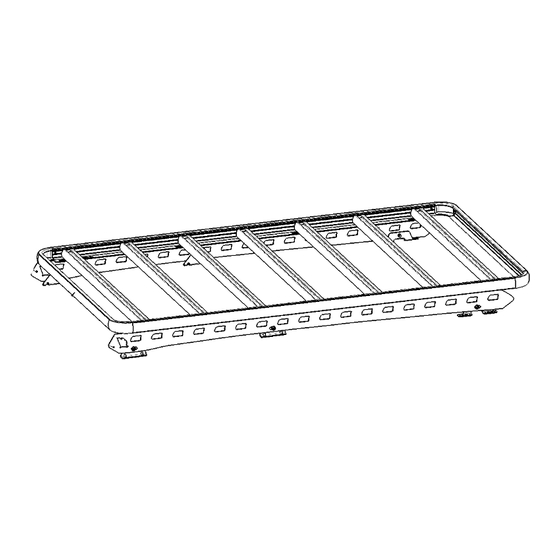

Wedgetail Rails and Platform Fitting Instruction
To suit Toyota Fortuner (Toyota Factory Rails)
Congratulations on the purchase of your Australian made Wedgetail Roof Rack product.
- Please read and follow the instructions carefully to ensure correct fitment.
- Contact us if any parts appear missing, incorrect, or damaged.
- Clean the roof prior to fitting the roof racks.
ITEM COMPONENT
1 Fortuner Left Rail
2 Fortuner Right Rail
3 Wedgetail Pre-assemble Platform
4 Front & Middle Mounting Lug
5 Rear Mounting Lug
WT-TFORTFR-2212_Fitting_Rev1
Tools Required:
•
Drill Driver with 10mm drill bit
•
Hex key (6 and 8 mm)
KIT CONTENTS
QTY ITEM
1 6
1 7
1 8
4 9
2 10
11
COPYRIGHT TRADESMAN ROOF RACKS |WEDGETAILRACK.COM.AU
WT-TFORTFR-2212
COMPONENT
M8 22mm Dome Head bolt with Washer
8mm Nylon Nut
M10 Dome Head Bolt
M10 Unistrut
M10 20mm Hex Bolt
Wedgetail Wind Deflector & Kits
Updated:6 Feb 2023
